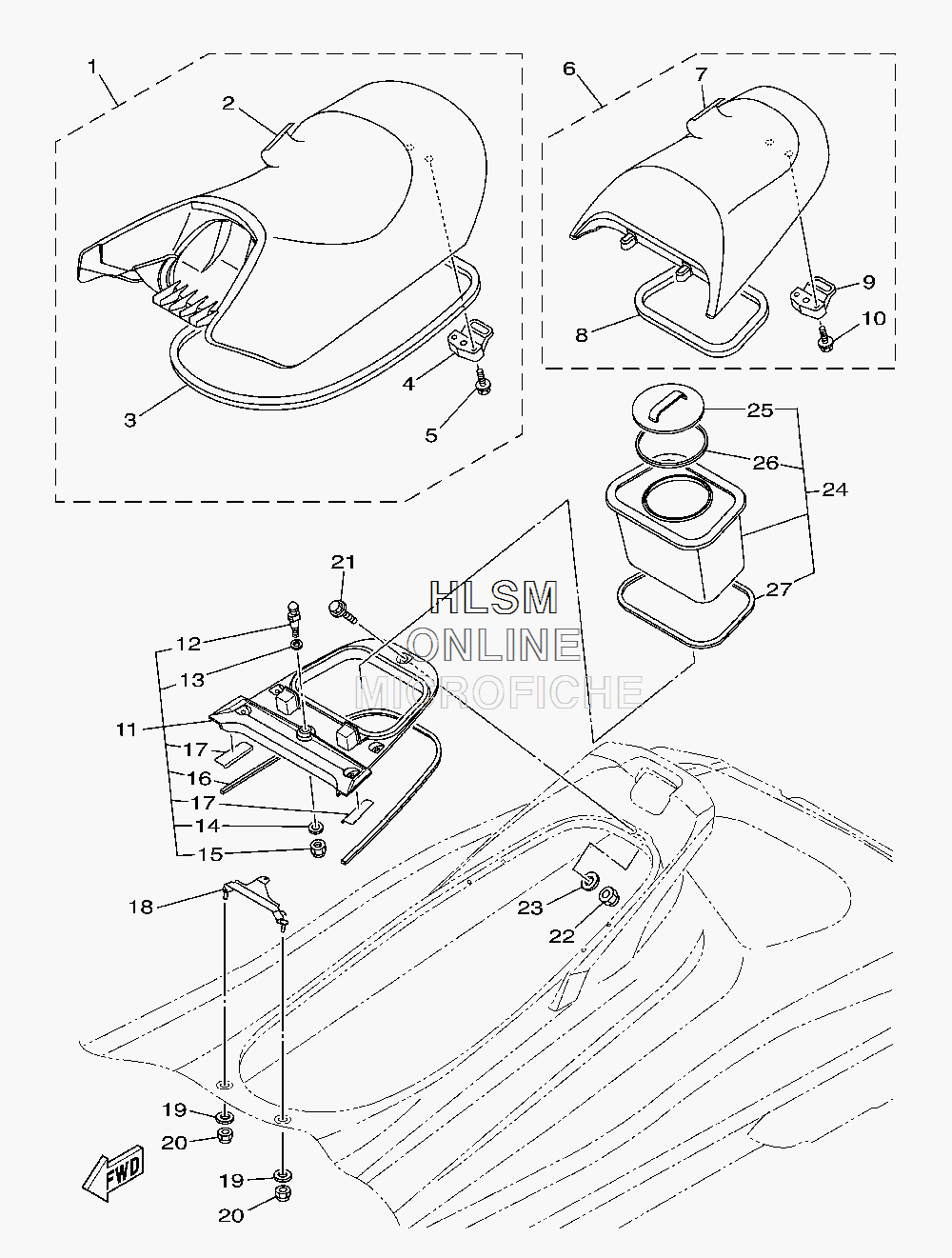

SEAT W/ UNDER LOCKER для Yamaha FX HO [FB1800R] - 2016 года выпуска
-
№АртикулНазвание
-
1F2S-U371A-20-00 DOUBLE SEAT ASSYDOUBLE SEAT ASSY
-
2F2S-U371B-20-00 ...COVER, SEAT 1...COVER, SEAT 1
-
3F1W-U2664-01-00 ...PACKING...PACKING
-
4F2C-U3850-00-00 ...SEAT LOCK ASSY...SEAT LOCK ASSY
-
590119-069UP-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
6F2S-U372A-20-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
7F2S-U372B-20-00 ...COVER, SEAT...COVER, SEAT
-
8F2C-U266D-01-00 ...PACKING 5...PACKING 5
-
9F2C-U3850-00-00 ...SEAT LOCK ASSY...SEAT LOCK ASSY
-
1090119-069UP-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
11F2S-U890L-04-00 DECK BEAM ASSYDECK BEAM ASSY
-
12GH1-U3774-00-00 ...PIN...PIN
-
1390201-109U6-00 ...WASHER, PLATE...WASHER, PLATE
-
149299R-10200-00 ...WASHER...WASHER
-
159572R-10300-00 ...NUT, NYLON...NUT, NYLON
-
16F2S-U375E-00-00 ...PACKING 1...PACKING 1
-
17F2S-U8244-00-00 ...PACKING...PACKING
-
18F2C-U378C-00-00 STAY, SEAT 1STAY, SEAT 1
-
1990201-099U3-00 WASHER, PLATEWASHER, PLATE
-
209572R-08300-00 NUT, FLANGENUT, FLANGE
-
2190119-08828-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
229572R-08300-00 NUT, FLANGENUT, FLANGE
-
239299R-08200-00 WASHERWASHER
-
24F2C-U591A-02-00 CASE,ASSY 1CASE,ASSY 1
-
25F2C-U591C-00-00 ...CAP,CASE...CAP,CASE
-
26F2C-U591D-01-00 ...PACKING,CASE...PACKING,CASE
-
27F2C-U266E-00-00 ...PACKING,6...PACKING,6
