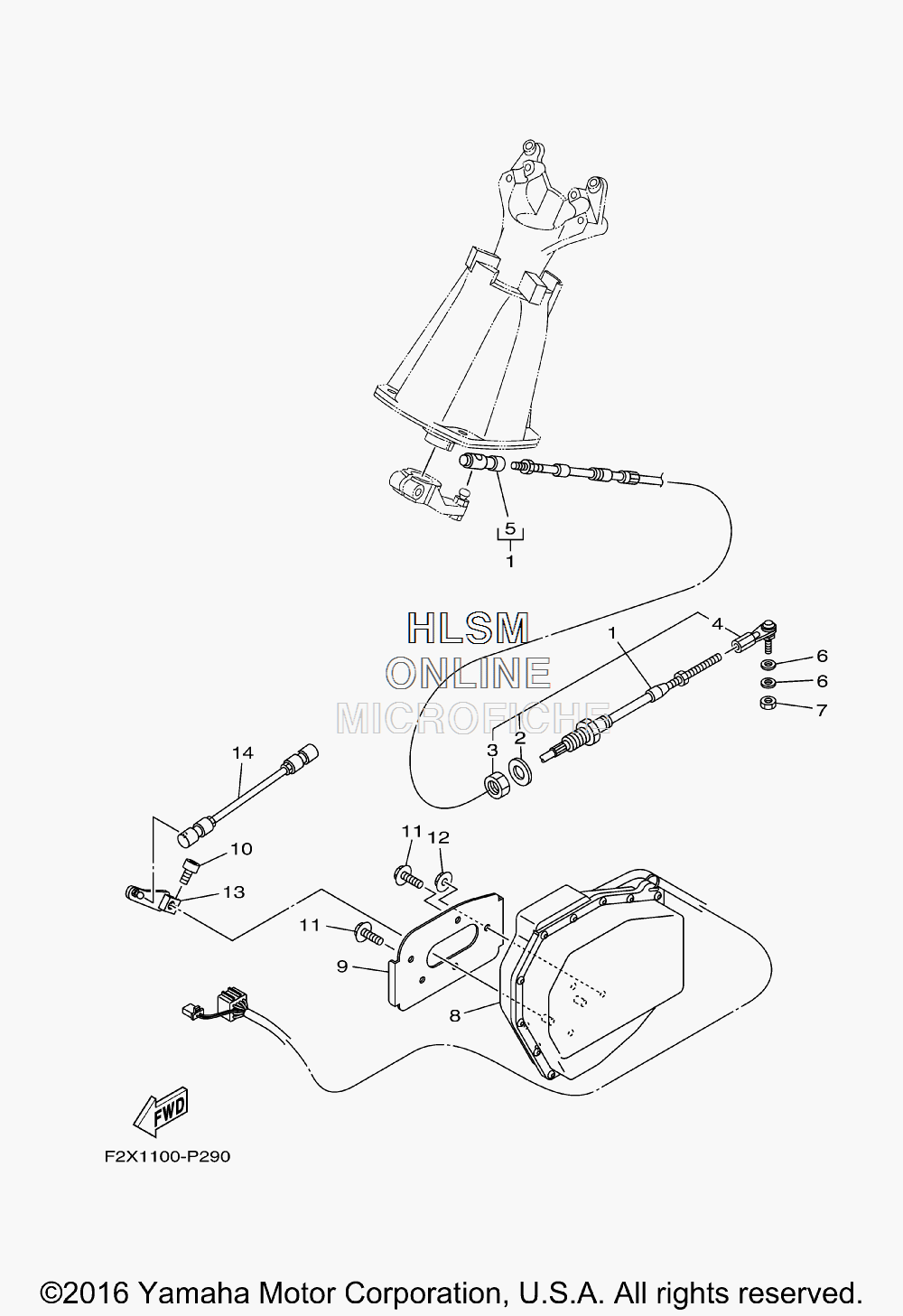

CONTROL CABLES для Yamaha VX CRUISER HO [VC1800R] - 2016 года выпуска
-
№АртикулНазвание
-
1F2N-61481-00-00 CABLE, STEERINGCABLE, STEERING
-
2F1B-61438-00-00 ...PACKING C...PACKING C
-
3F1B-6151S-00-00 ...NUT...NUT
-
4F1B-61461-02-00 ...STUD, JOINT BALL...STUD, JOINT BALL
-
5F2N-61460-00-00 ...BALL JOINT ASSY...BALL JOINT ASSY
-
690201-06906-00 WASHER, PLATEWASHER, PLATE
-
79538R-06700-00 NUTNUT
-
8F2X-6140B-00-00 MOTOR ASSY.MOTOR ASSY.
-
9F3J-U8285-00-00 PLATEPLATE
-
1090110-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1190119-08851-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
129572R-08300-00 NUT, FLANGENUT, FLANGE
-
13F3J-6150F-00-00 SHIFT ARM ASSYSHIFT ARM ASSY
-
14F3J-6150D-00-00 ROD ASSY 2ROD ASSY 2
