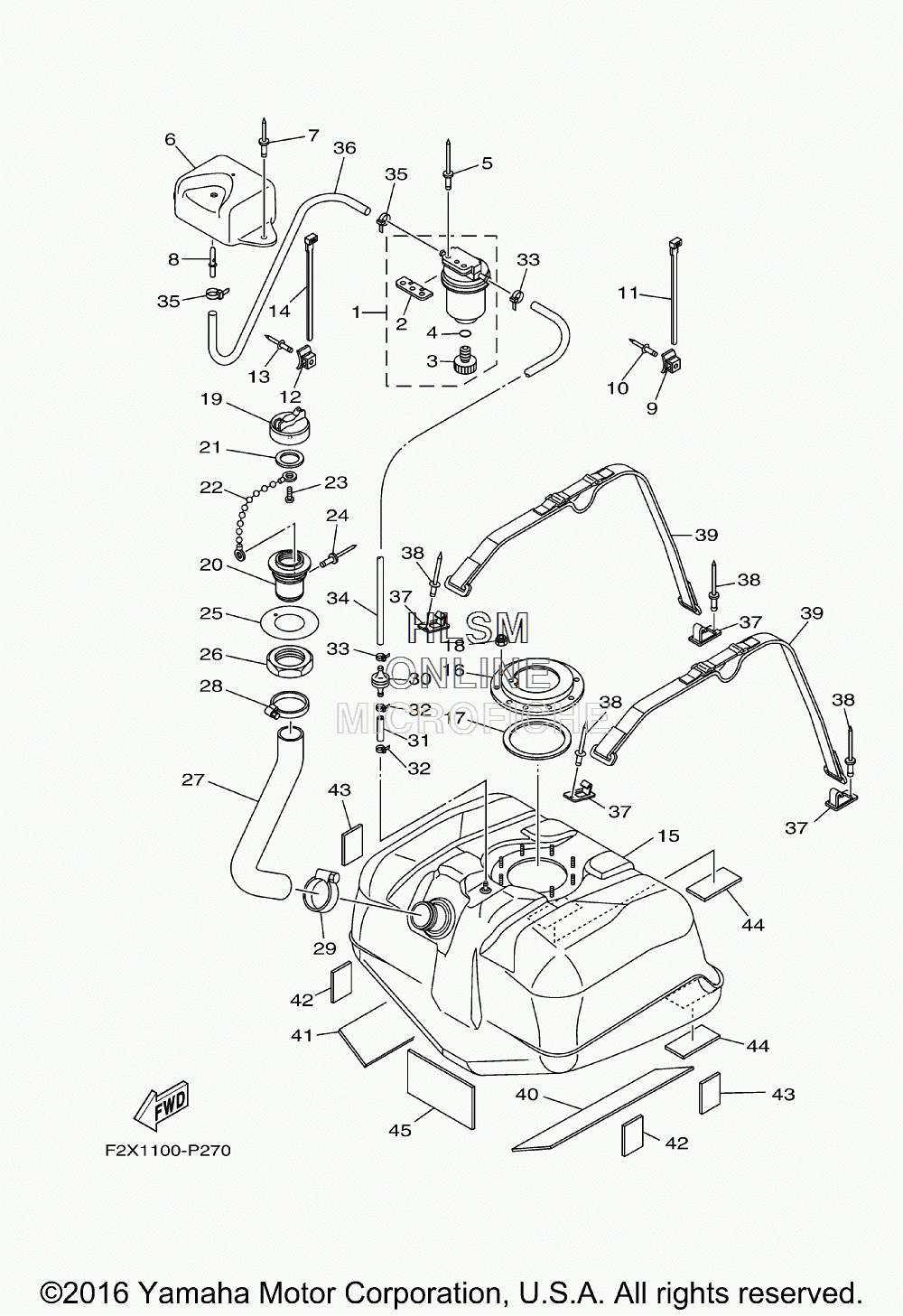

FUEL TANK для Yamaha VX CRUISER [VX1050AR] - 2016 года выпуска
-
№АртикулНазвание
-
1F2F-6214A-00-00 FILTER, VENT ASSYFILTER, VENT ASSY
-
2EW2-62142-00-00 ...PLATE, FILTER...PLATE, FILTER
-
370R-24543-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
470R-24489-00-00 ...O-RING...O-RING
-
590267-489U2-00 RIVET, BLINDRIVET, BLIND
-
6GP7-62159-02-00 SOCKET, VENTILATIONSOCKET, VENTILATION
-
790267-489U6-00 RIVET, BLINDRIVET, BLIND
-
8F1G-62149-00-00 PIPE, VENTILATIONPIPE, VENTILATION
-
9F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
1090267-489U6-00 RIVET, BLINDRIVET, BLIND
-
1190464-32801-00 CLAMPCLAMP
-
12F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
1390267-489U6-00 RIVET, BLINDRIVET, BLIND
-
1490464-32801-00 CLAMPCLAMP
-
15F2S-U7711-02-00 TANK, FUELTANK, FUEL
-
16F1B-U7773-00-00 RINGRING
-
17F1B-67747-00-00 PACKING, SEALPACKING, SEAL
-
189572R-06300-00 NUT, NYLONNUT, NYLON
-
19F2X-U7831-00-00 CAP, FUEL FILLERCAP, FUEL FILLER
-
20F2X-U7833-00-00 SOCKETSOCKET
-
21GP7-U7832-01-00 PACKINGPACKING
-
22GP7-U7835-00-00 CHAIN BALLCHAIN BALL
-
2390169-049U1-00 TAPPING SCREWTAPPING SCREW
-
2490267-329UR-00 RIVET, BLINDRIVET, BLIND
-
25GP7-U7834-10-00 PACKING FUEL FILLERPACKING FUEL FILLER
-
26GP7-U783F-00-00 NUT, FUEL FILLERNUT, FUEL FILLER
-
27F2X-U7844-01-00 HOSEHOSE
-
2890601-155U4-00 BAND, HOSE 55BAND, HOSE 55
-
2990601-155U4-00 BAND, HOSE 55BAND, HOSE 55
-
30EU0-67767-31-00 CHECK VALVECHECK VALVE
-
31GP7-U785H-00-00 HOSE, AIR VENT 3HOSE, AIR VENT 3
-
3290465-11829-00 CLAMPCLAMP
-
3390465-11829-00 CLAMPCLAMP
-
34F1K-U785G-00-00 HOSE, AIR VENTHOSE, AIR VENT
-
3590465-11829-00 CLAMPCLAMP
-
36F0D-U7856-10-00 HOSE, AIR VENT 3HOSE, AIR VENT 3
-
37F1K-U5772-04-00 HOOK AHOOK A
-
3890267-489U1-00 RIVET,BLINDRIVET,BLIND
-
39F2S-67743-00-00 BELT, TANK 1BELT, TANK 1
-
40F2S-U759B-00-00 MAT 1MAT 1
-
41F2S-U759B-00-00 MAT 1MAT 1
-
42F1W-U759C-01-00 MAT 2MAT 2
-
43F1W-U759C-01-00 MAT 2MAT 2
-
44F1K-U759C-00-00 MAT 2MAT 2
-
45F1S-U8221-00-00 PAD, BATTERYPAD, BATTERY
