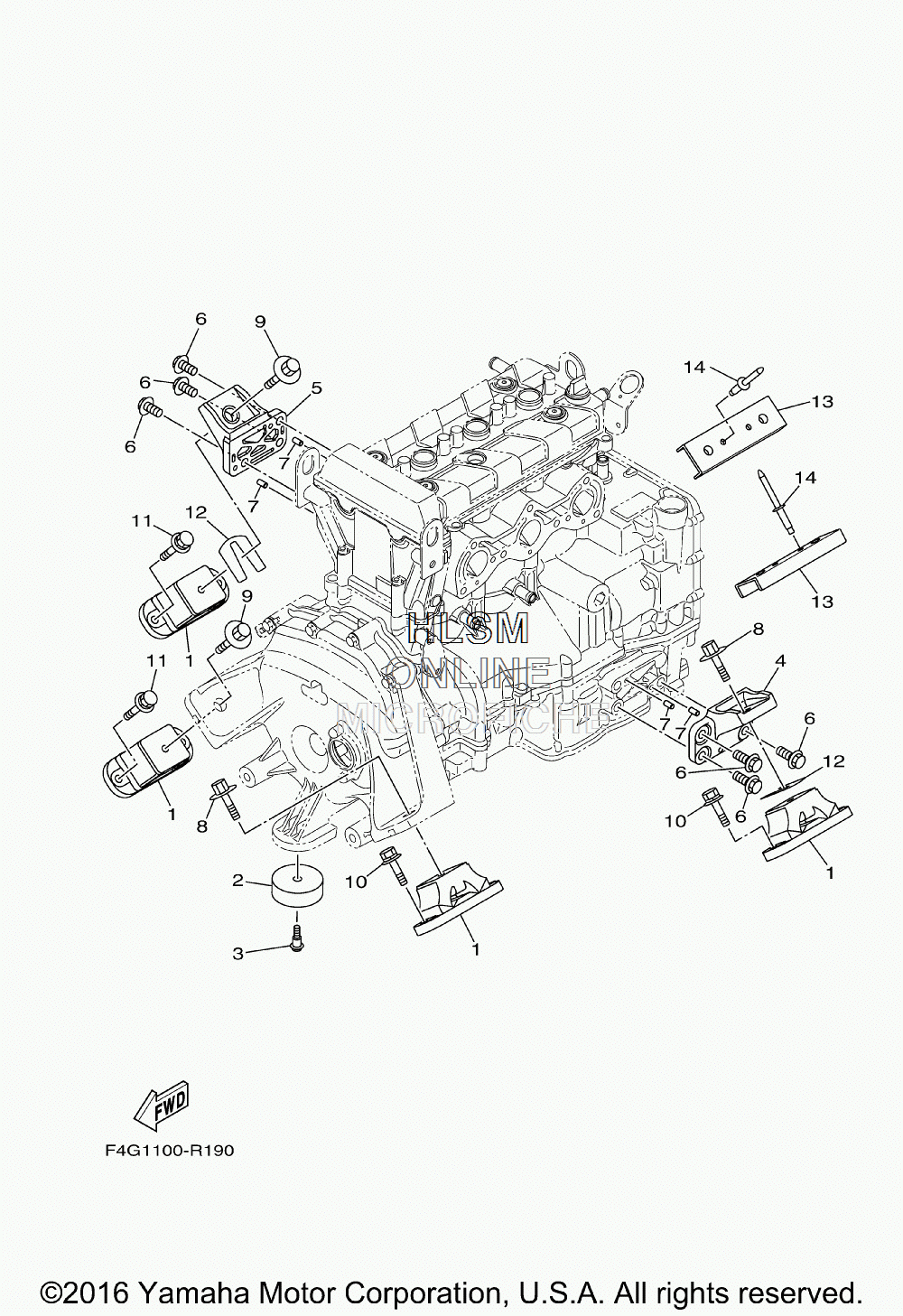

ENGINE MOUNTS для Yamaha VX [VX1050CR] - 2016 года выпуска
-
№АртикулНазвание
-
167X-44517-10-00 MOUNT RUBBERMOUNT RUBBER
-
26EY-44574-00-00 STOPPER, LOWER MOUNT RUBBERSTOPPER, LOWER MOUNT RUBBER
-
390109-06M92-00 BOLTBOLT
-
46EY-41661-00-00 BRACKET 1BRACKET 1
-
56EY-41662-00-00 BRACKET 2BRACKET 2
-
690105-10M49-00 BOLT, FLANGEBOLT, FLANGE
-
793606-12019-00 PIN, DOWELPIN, DOWEL
-
890119-08859-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
990119-08859-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1090119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1190119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
12EU0-U7354-00-20 SHIM (T=2.0) (UN)SHIM (T=2.0) (UN)
-
12EU0-U7354-00-10 SHIM (T=1.0) (UN)SHIM (T=1.0) (UN)
-
12EU0-U7354-00-05 SHIM (T=0.5) (UN)SHIM (T=0.5) (UN)
-
12EU0-U7354-00-03 SHIM (T=0.3) (UN)SHIM (T=0.3) (UN)
-
12EU0-U7354-00-01 SHIM (T=0.1) (UN)SHIM (T=0.1) (UN)
-
13F2S-U732B-00-00 PLATEPLATE
-
1490267-489U2-00 RIVET, BLINDRIVET, BLIND
