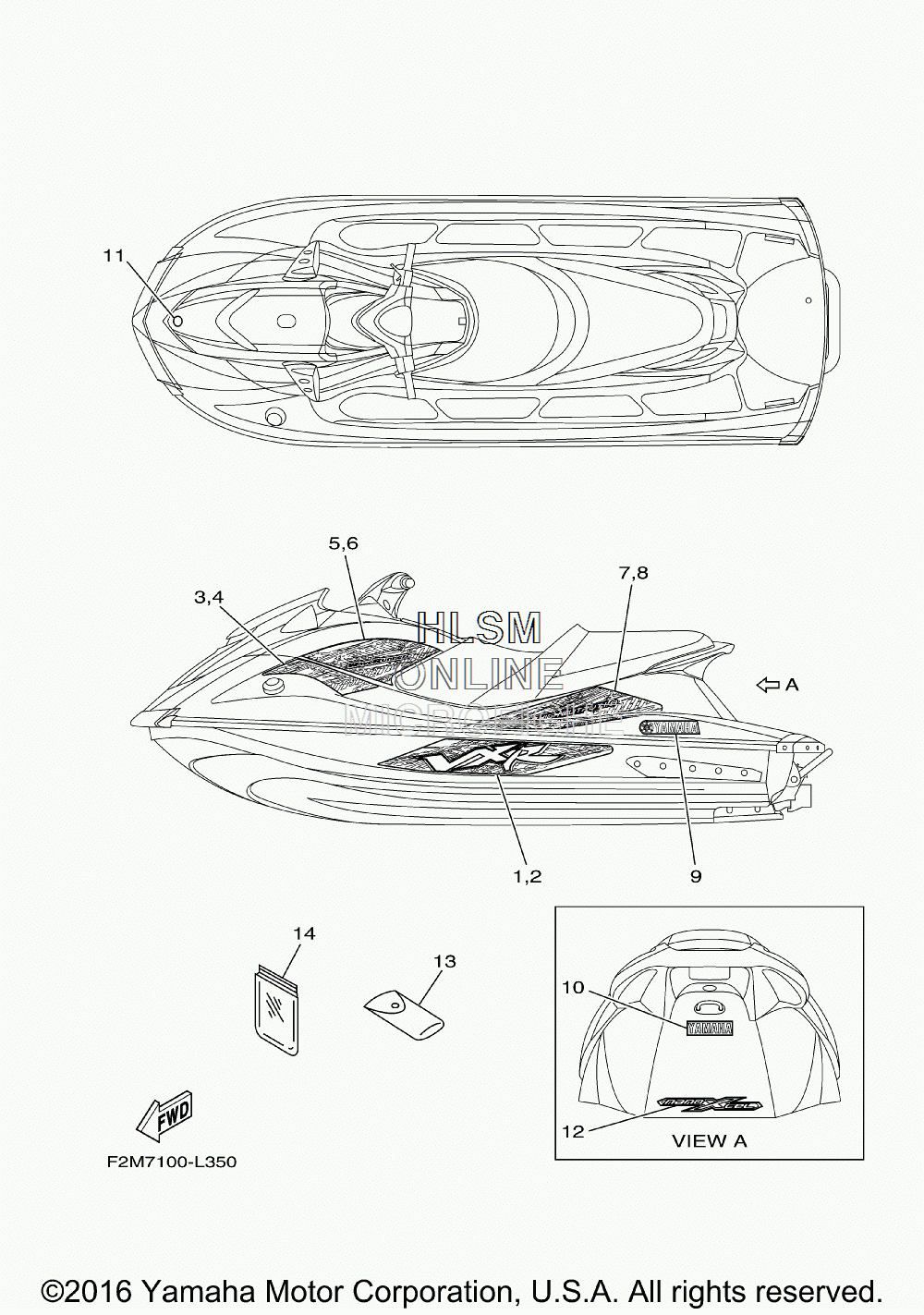

GRAPHICS для Yamaha VXR [VX1800AL] - 2016 года выпуска
-
№АртикулНазвание
-
1F2M-U417B-60-00 GRAPHIC 1 (LH) (FOR GREY)GRAPHIC 1 (LH) (FOR GREY)
-
1F2M-U417B-70-00 GRAPHIC 1 (LH) (FOR RED)GRAPHIC 1 (LH) (FOR RED)
-
2F2M-U417C-70-00 GRAPHIC 2 (RH) (FOR RED)GRAPHIC 2 (RH) (FOR RED)
-
2F2M-U417C-60-00 GRAPHIC 2 (RH) (FOR GREY)GRAPHIC 2 (RH) (FOR GREY)
-
3F2M-U417D-70-00 GRAPHIC 3 (LH) (FOR RED)GRAPHIC 3 (LH) (FOR RED)
-
3F2M-U417D-60-00 GRAPHIC 3 (LH) (FOR GREY)GRAPHIC 3 (LH) (FOR GREY)
-
4F2M-U417E-70-00 GRAPHIC 4 (RH) (FOR RED)GRAPHIC 4 (RH) (FOR RED)
-
4F2M-U417E-60-00 GRAPHIC 4 (RH) (FOR GREY)GRAPHIC 4 (RH) (FOR GREY)
-
5F2M-U417F-70-00 GRAPHIC 5 (LH) (FOR RED)GRAPHIC 5 (LH) (FOR RED)
-
5F2M-U417F-60-00 GRAPHIC 5 (LH) (FOR GREY)GRAPHIC 5 (LH) (FOR GREY)
-
6F2M-U417G-70-00 GRAPHIC 6 (RH) (FOR RED)GRAPHIC 6 (RH) (FOR RED)
-
6F2M-U417G-60-00 GRAPHIC 6 (RH) (FOR GREY)GRAPHIC 6 (RH) (FOR GREY)
-
7F2M-U417H-70-00 GRAPHIC 7 (LH) (FOR RED)GRAPHIC 7 (LH) (FOR RED)
-
7F2M-U417H-60-00 GRAPHIC 7 (LH) (FOR GREY)GRAPHIC 7 (LH) (FOR GREY)
-
8F2M-U417J-70-00 GRAPHIC 8 (RH) (FOR RED)GRAPHIC 8 (RH) (FOR RED)
-
8F2M-U417J-60-00 GRAPHIC 8 (RH) (FOR GREY)GRAPHIC 8 (RH) (FOR GREY)
-
9F1W-U411C-00-00 EMBLEM, YAMAHA (FOR RED)EMBLEM, YAMAHA (FOR RED)
-
9F2R-U411C-00-00 EMBLEM, YAMAHA (FOR GREY)EMBLEM, YAMAHA (FOR GREY)
-
10F1W-U4114-00-00 MARK, YAMAHA A (FOR RED)MARK, YAMAHA A (FOR RED)
-
10F2R-U4114-00-00 MARK, YAMAHA A (FOR GREY)MARK, YAMAHA A (FOR GREY)
-
11F1K-U411H-00-00 EMBLEM, TUNING FORKEMBLEM, TUNING FORK
-
12F1W-U4121-00-00 EMBLEM AEMBLEM A
-
13F1B-65986-10-00 TOOL SETTOOL SET
-
14EU0-65901-01-00 TOOL BAGTOOL BAG
