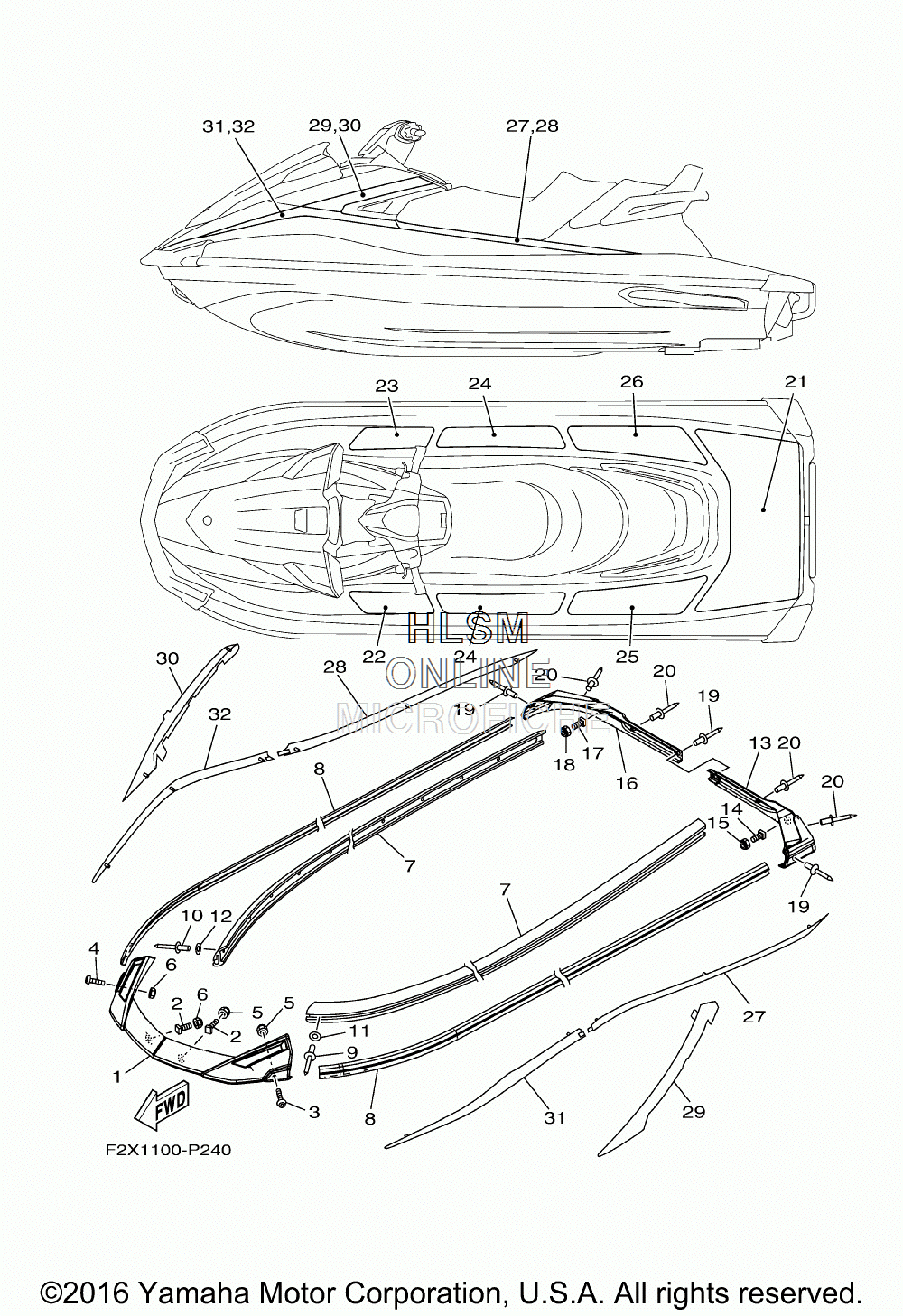

HULL - GUNWALE - MAT для Yamaha VXS [VX1800P] - 2016 года выпуска
-
№АртикулНазвание
-
1F2X-U2511-00-00 GUNWALE, BOW (DARK GRAY)GUNWALE, BOW (DARK GRAY)
-
2F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
390111-06803-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
490111-06803-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
5F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
6F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
7F2X-U2512-00-00 GUNWALE, SIDE (DARK GRAY)GUNWALE, SIDE (DARK GRAY)
-
8F2X-U2519-60-00 INNER,GUNWALE (WHITE)INNER,GUNWALE (WHITE)
-
990267-489U8-00 RIVET, BLINDRIVET, BLIND
-
1090267-489U8-00 RIVET, BLINDRIVET, BLIND
-
119299R-05200-00 WASHERWASHER
-
129299R-05200-00 WASHERWASHER
-
13F2X-U251D-00-00 GUNWALE, STERN 1 (DARK GRAY)GUNWALE, STERN 1 (DARK GRAY)
-
14F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
15F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
16F2X-U251E-00-00 GUNWALE, STERN 2 (DARK GRAY)GUNWALE, STERN 2 (DARK GRAY)
-
17F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
18F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
1990267-48825-00 RIVET, BLINDRIVET, BLIND
-
2090267-48825-00 RIVET, BLINDRIVET, BLIND
-
21F2X-U3581-01-00 MAT, UPPER (GRAY & BLACK)MAT, UPPER (GRAY & BLACK)
-
22F2X-U351H-00-00 MAT, STEP 1 (GRAY & BLACK)MAT, STEP 1 (GRAY & BLACK)
-
23F2X-U351J-00-00 MAT, STEP 2 (GRAY & BLACK)MAT, STEP 2 (GRAY & BLACK)
-
24F2X-U351K-00-00 MAT, STEP 3 (GRAY & BLACK)MAT, STEP 3 (GRAY & BLACK)
-
25F2X-U351M-00-00 MAT, STEP 4 (GRAY & BLACK)MAT, STEP 4 (GRAY & BLACK)
-
26F2X-U351N-00-00 MAT, STEP 5 (GRAY & BLACK)MAT, STEP 5 (GRAY & BLACK)
-
27F2X-U89A8-50-00 ORNAMENT, STERN LH (WHITE)ORNAMENT, STERN LH (WHITE)
-
28F2X-U89A9-50-00 ORNAMENT, STERN RH (WHITE)ORNAMENT, STERN RH (WHITE)
-
29F2X-U89AA-50-00 ORNAMENT, MIDDLE LH (WHITE)ORNAMENT, MIDDLE LH (WHITE)
-
30F2X-U89AB-50-00 ORNAMENT, MIDDLE RH (WHITE)ORNAMENT, MIDDLE RH (WHITE)
-
31F2X-U89AC-50-00 ORNAMENT, BOW LH (WHITE)ORNAMENT, BOW LH (WHITE)
-
32F2X-U89AD-50-00 ORNAMENT, BOW RH (WHITE)ORNAMENT, BOW RH (WHITE)
