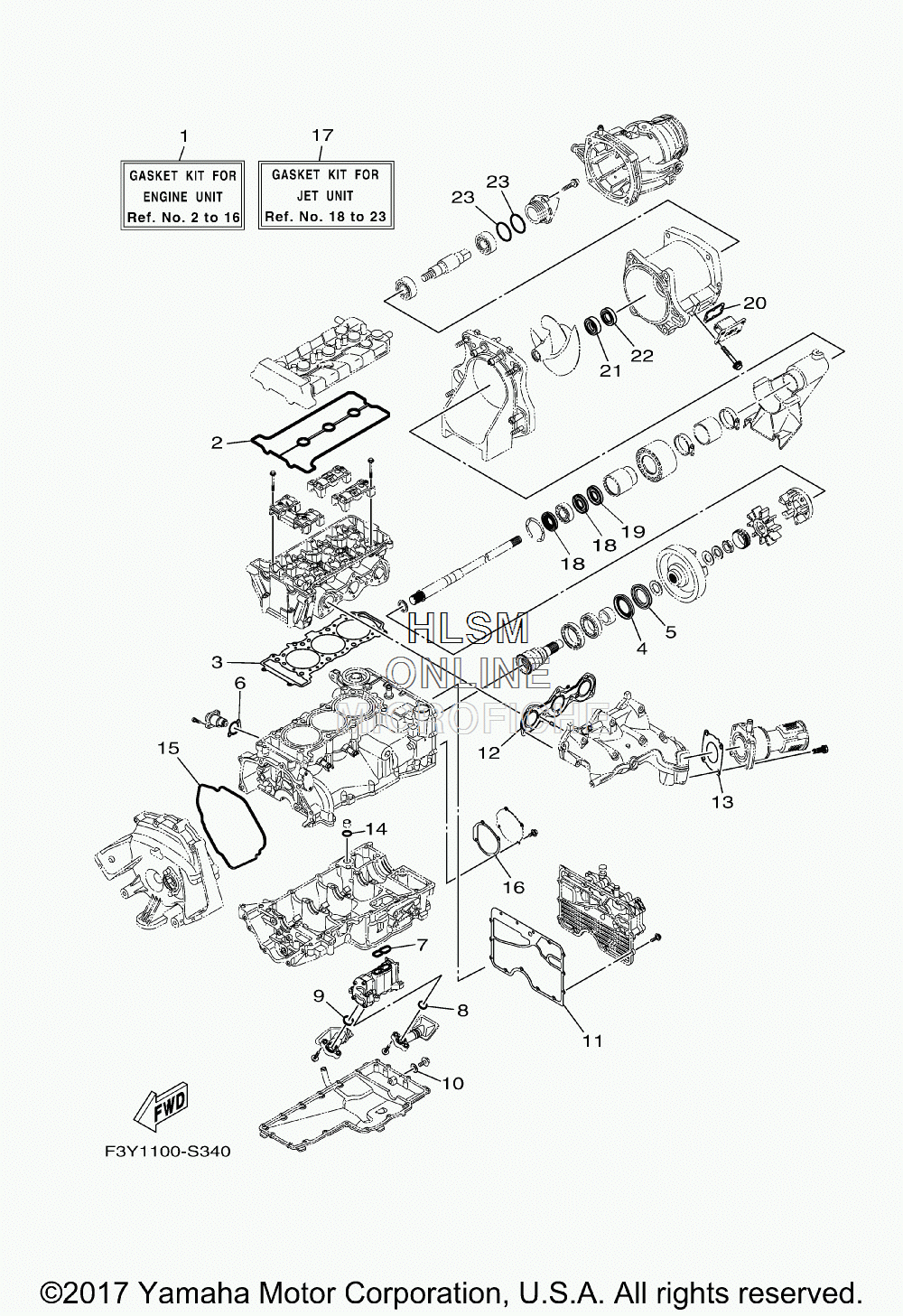

GASKET KIT - ENGINE AND JET UNIT для Yamaha EX DELUXE [EX1050AS] - 2017 года выпуска`
-
№АртикулНазвание
-
16GA-W0001-00-00 GASKET KIT FOR ENGINE UNITGASKET KIT FOR ENGINE UNIT
-
26EY-11193-00-00 ...GASKET, HEAD COVER 1...GASKET, HEAD COVER 1
-
36EY-11181-00-00 ...GASKET, CYLINDER HEAD 1...GASKET, CYLINDER HEAD 1
-
493101-40001-00 ...OIL SEAL...OIL SEAL
-
593101-40002-00 ...OIL SEAL...OIL SEAL
-
62C0-12213-00-00 ...GASKET, TENSIONER CASE...GASKET, TENSIONER CASE
-
76EY-13563-00-00 ...GASKET...GASKET
-
86EY-13477-00-00 ...GASKET...GASKET
-
96EY-13476-00-00 ...GASKET...GASKET
-
1090430-08209-00 ...GASKET...GASKET
-
116EY-15453-00-00 ...GASKET...GASKET
-
126GA-14613-00-00 ...GASKET, EXHAUST PIPE...GASKET, EXHAUST PIPE
-
136GA-14739-00-00 ...GASKET, MUFFLER DAMPER 1...GASKET, MUFFLER DAMPER 1
-
1493210-17010-00 ...O-RING...O-RING
-
156EY-15461-00-00 ...GASKET, CRANKCASE COVER 2...GASKET, CRANKCASE COVER 2
-
166EY-15463-00-00 ...GASKET, 2...GASKET, 2
-
176GA-W0001-20-00 GASKET KIT FOR JET UNITGASKET KIT FOR JET UNIT
-
1893101-25M55-00 ...OIL SEAL...OIL SEAL
-
1993101-25M56-00 ...OIL SEAL...OIL SEAL
-
206GA-G2414-00-00 ...O-RING...O-RING
-
2193102-25M34-00 ...OIL SEAL...OIL SEAL
-
2293101-25M50-00 ...OIL SEAL...OIL SEAL
-
2393210-44003-00 ...O-RING...O-RING
