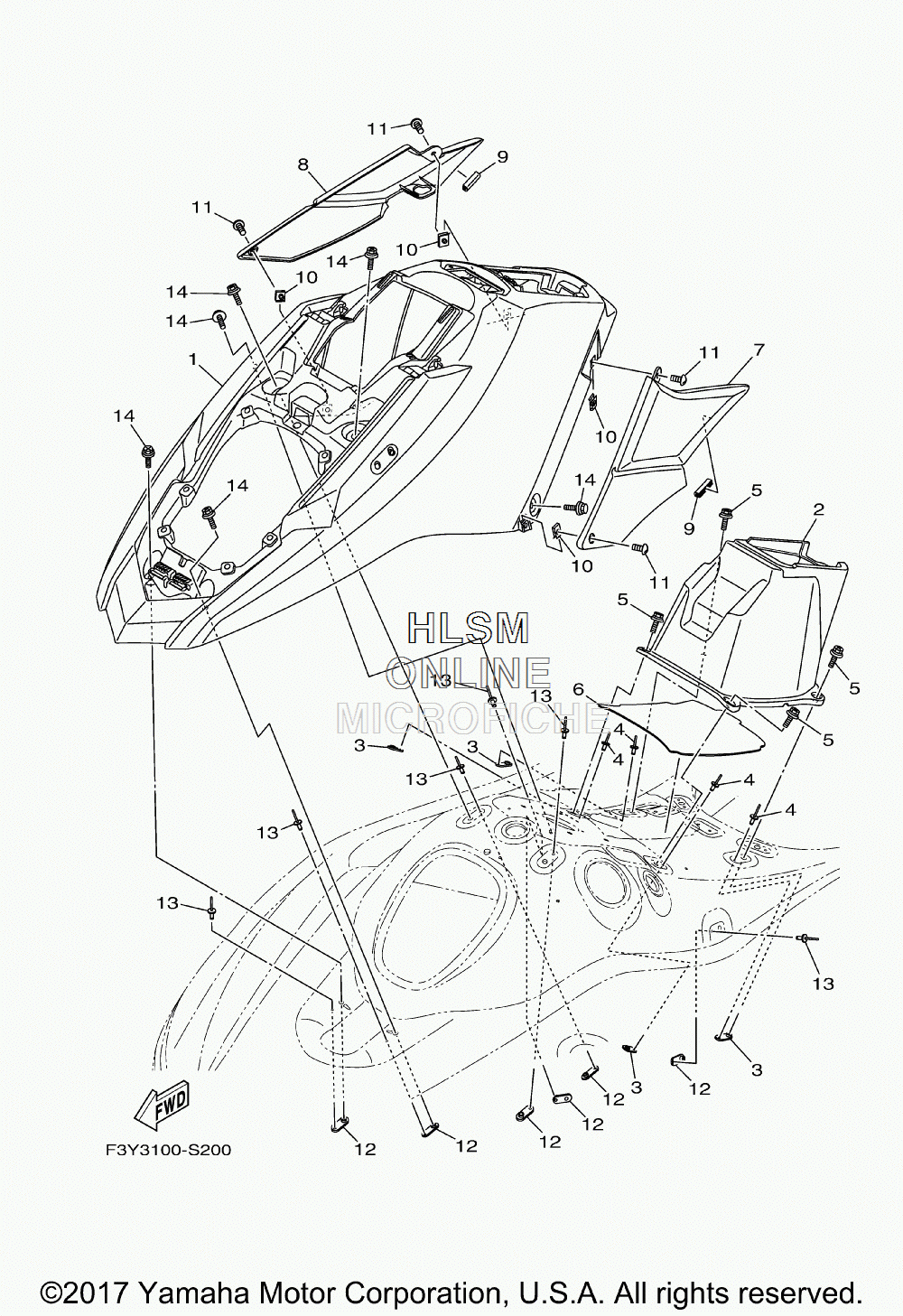

SIDE COVERS для Yamaha EX SPORT [EX1050BS] - 2017 года выпуска
-
№АртикулНазвание
-
1F3Y-U516N-00-00 COVER, ENGINE HATCHCOVER, ENGINE HATCH
-
2F3Y-U516P-00-00 BOX GLOVEBOX GLOVE
-
3F2X-U5175-00-00 PLATE, FIXPLATE, FIX
-
490267-489U1-00 RIVET,BLINDRIVET,BLIND
-
590119-06882-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
6F3Y-U759B-00-00 MAT 1MAT 1
-
7F3Y-U353B-00-00 PAD, KNEEPAD, KNEE
-
8F3Y-U353B-10-00 PAD, KNEEPAD, KNEE
-
9F3Y-U828H-00-00 TRIM, 1TRIM, 1
-
1090183-06902-00 NUT, SPRINGNUT, SPRING
-
11F2S-U7823-01-00 SCREWSCREW
-
12F2X-U5175-00-00 PLATE, FIXPLATE, FIX
-
1390267-489U1-00 RIVET,BLINDRIVET,BLIND
-
1490119-06820-00 BOLT, WITH WASHERBOLT, WITH WASHER
