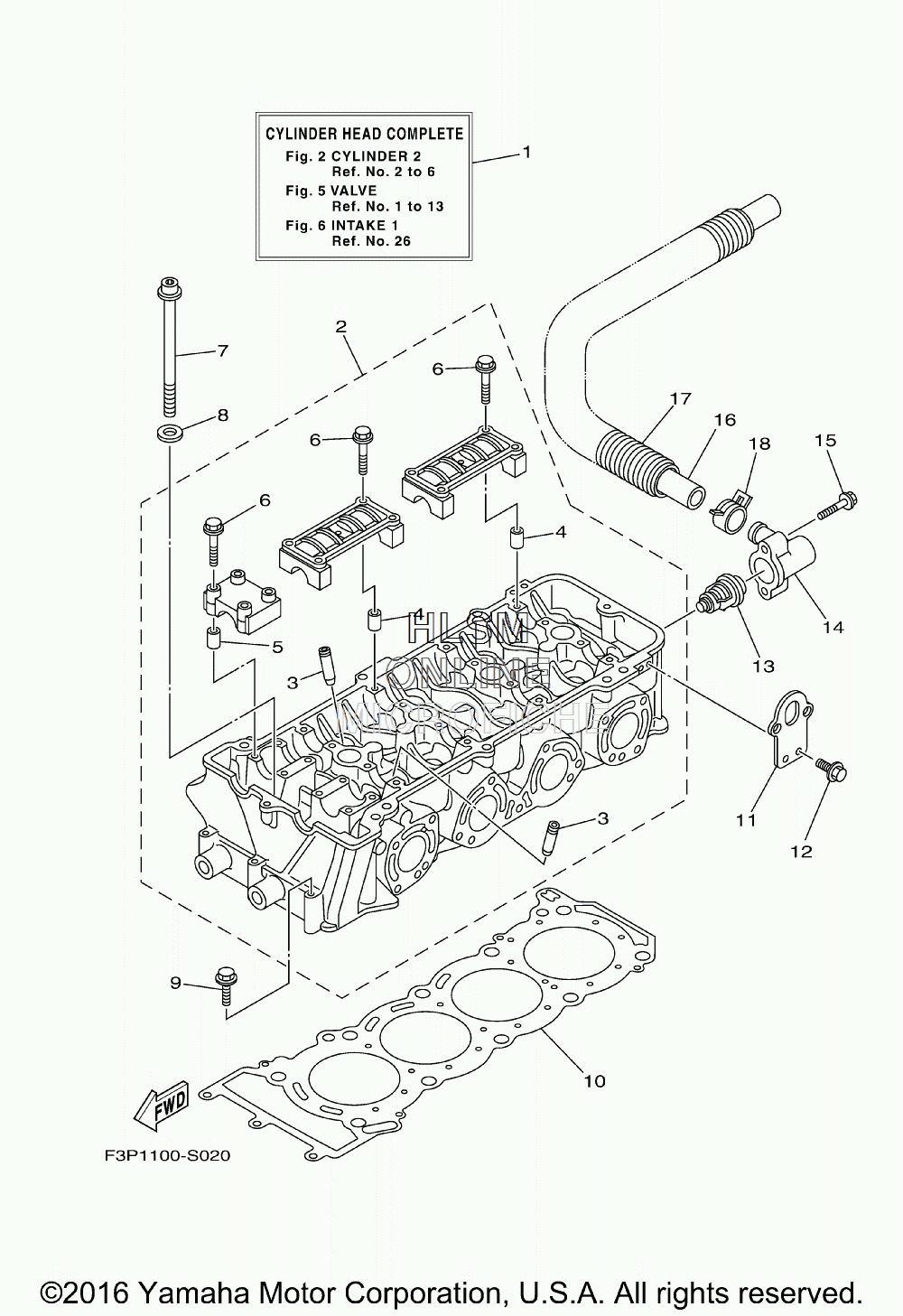

CYLINDER 2 для Yamaha GP1800S [GP1800S] - 2017 года выпуска
-
№АртикулНазвание
-
16ET-W009A-01-94 CYLINDER HEAD COMPLETECYLINDER HEAD COMPLETE
-
26S5-11102-11-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
36S5-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
491809-16002-00 ...PIN, DOWEL...PIN, DOWEL
-
591809-16002-00 ...PIN, DOWEL...PIN, DOWEL
-
690105-07009-00 ...BOLT, FLANGE...BOLT, FLANGE
-
76S5-12228-01-00 BOLTBOLT
-
890201-12039-00 WASHER, PLATEWASHER, PLATE
-
997513-06555-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
106BH-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
116BH-1111E-00-00 HANGER, ENGINE 2HANGER, ENGINE 2
-
1290119-06078-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
136D3-12411-00-00 THERMOSTATTHERMOSTAT
-
146BH-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
1590105-06035-00 BOLT, FLANGEBOLT, FLANGE
-
166S5-12578-00-00 HOSE 3HOSE 3
-
1790447-28008-00 TUBE (L850)TUBE (L850)
-
1890467-240A0-00 CLIPCLIP
Все узлы модели:
- CONTROL CABLES
- CRANKCASE
- CRANKSHAFT W/ PISTON
- • CYLINDER 2
- CYLINDER HEAD COVER ASSY.
- ELECTRICAL 1
- ELECTRICAL 2
- ELECTRICAL 3
- ENGINE MOUNTS
- EXHAUST - HOSES
- EXHAUST - WATER BOX
- EXHAUST SYSTEM
- FRONT STORAGE W/ COVER
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- GRAPHICS
- GRAPHICS - WARNING / CAUTION
- HANDLEBAR PAD
- HANDLEBAR W/ CONTROLS - STEERING COLUMN
- HULL - GUNWALE - MAT
- HULL FITTINGS W/ SPONSONS
- INTAKE 3
- INTAKE AND RIDE PLATE ASSY
- MODEL INFO - MANUALS
- OIL BREATHER ASSY.
- OIL COOLER
- OIL PAN
- OIL PUMP
- PROPULSION SYSTEM - EXTERNAL
- PROPULSION SYSTEM - INTERNAL
- REVERSE GATE
- SEAT W/ UNDER LOCKER
- SIDE COVERS
- STARTING MOTOR
- STEERING - PADDING
- SUPER CHARGER ASSY
- THROTTLE BODY ASSY.
- VALVE W/ CAM SHAFTS AND CHAIN
- VENTILATION
