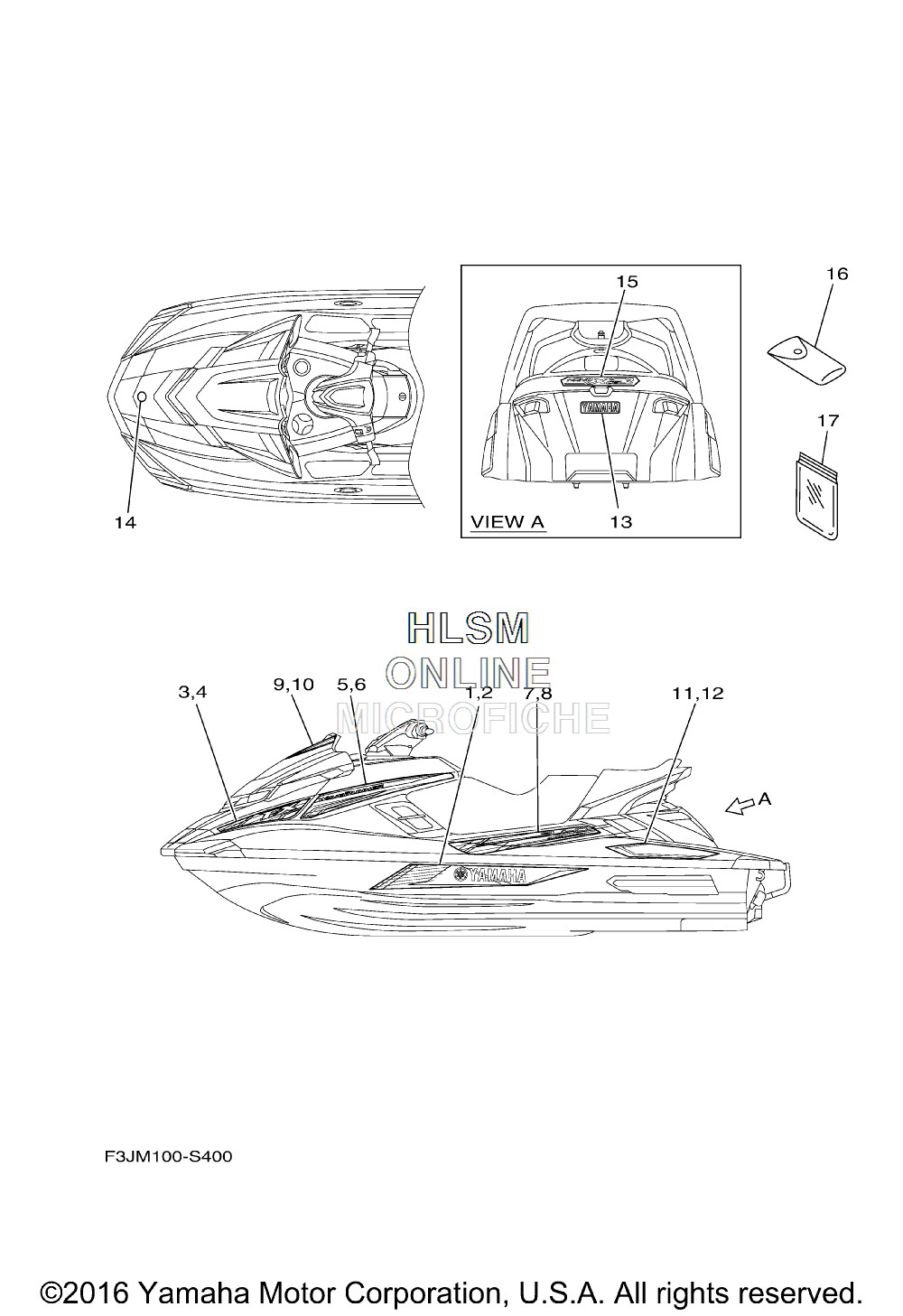

GRAPHICS для Yamaha WAVERUNNER FX SVHO [FC1800S] - 2017 года выпуска
-
№АртикулНазвание
-
1F3J-U417B-E0-00 GRAPHIC 1 (LEFT)GRAPHIC 1 (LEFT)
-
2F3J-U417C-E0-00 GRAPHIC 2 (RIGHT)GRAPHIC 2 (RIGHT)
-
3F3J-U417D-E0-00 GRAPHIC 3 (LEFT)GRAPHIC 3 (LEFT)
-
4F3J-U417E-E0-00 GRAPHIC 4 (RIGHT)GRAPHIC 4 (RIGHT)
-
5F3J-U417F-E0-00 GRAPHIC 5 (LEFT)GRAPHIC 5 (LEFT)
-
6F3J-U417G-E0-00 GRAPHIC 6 (RIGHT)GRAPHIC 6 (RIGHT)
-
7F3J-U417H-E0-00 GRAPHIC 7 (LEFT)GRAPHIC 7 (LEFT)
-
8F3J-U417J-E0-00 GRAPHIC 8 (RIGHT)GRAPHIC 8 (RIGHT)
-
9F3J-U417K-E0-00 GRAPHIC 9 (LEFT)GRAPHIC 9 (LEFT)
-
10F3J-U417L-E0-00 GRAPHIC B (RIGHT)GRAPHIC B (RIGHT)
-
11F3J-U417M-E0-00 GRAPHIC C (LEFT)GRAPHIC C (LEFT)
-
12F3J-U417N-E0-00 GRAPHIC D (RIGHT)GRAPHIC D (RIGHT)
-
13F3K-U4114-50-00 MARK, YAMAHA AMARK, YAMAHA A
-
14F2S-6411H-00-00 EMBLEM, TUNING FORKEMBLEM, TUNING FORK
-
15F3J-U4121-00-00 EMBLEM AEMBLEM A
-
16F1B-65986-13-00 TOOL SETTOOL SET
-
17EU0-65901-02-00 TOOL BAGTOOL BAG
