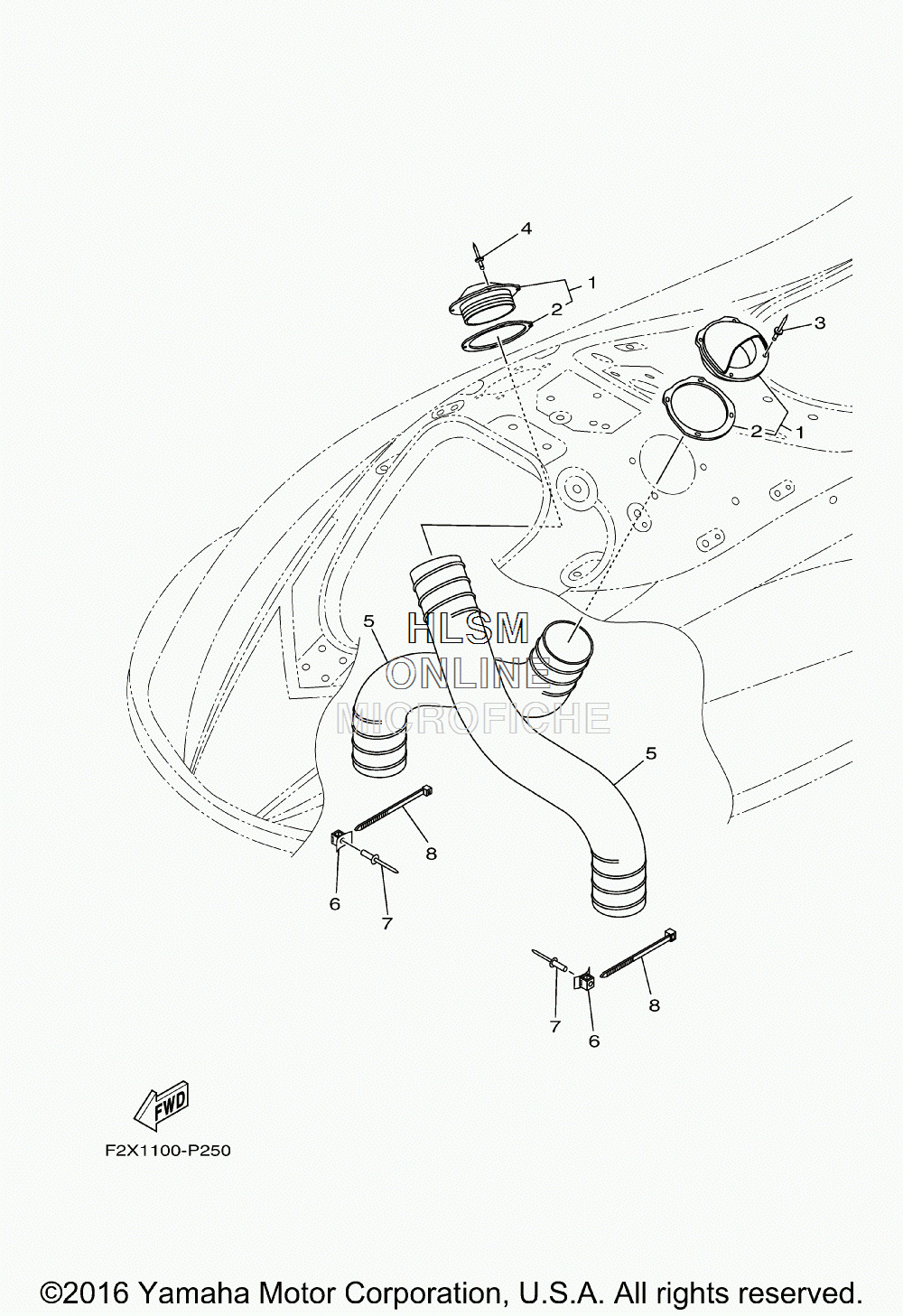

VENTILATION для Yamaha WAVERUNNER VX CRUISER [VX1050AS] - 2017 года выпуска
-
№АртикулНазвание
-
1F2X-U2127-00-00 BASE, AIR INTAKEBASE, AIR INTAKE
-
2F2X-U2157-00-00 ...PACKING...PACKING
-
390267-48806-00 RIVET, BLINDRIVET, BLIND
-
490267-48806-00 RIVET, BLINDRIVET, BLIND
-
5F2N-U213G-01-00 HOSE, VENTILATOR 2HOSE, VENTILATOR 2
-
6F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
790267-489U6-00 RIVET, BLINDRIVET, BLIND
-
890464-99804-00 CLAMPCLAMP
Все узлы модели:
- AIR SILENCER W/ INTAKE
- CONTROL CABLES
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER W/ HEAD
- ELECTRICAL 1
- ELECTRICAL 2
- ELECTRICAL 3
- ENGINE MOUNTS
- EXHAUST - HOSES
- EXHAUST - WATER BOX
- EXHAUST SYSTEM
- FRONT STORAGE W/ COVER
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- GRAPHICS
- GRAPHICS - WARNING / CAUTION
- HANDLEBAR PAD
- HANDLEBAR W/ CONTROLS - STEERING COLUMN
- HULL - GUNWALE - MAT
- HULL FITTINGS W/ SPONSONS
- MODEL INFO - MANUALS
- OIL COOLER
- OIL PUMP
- PROPULSION SYSTEM - EXTERNAL
- PROPULSION SYSTEM - INTERNAL
- REVERSE GATE
- SEAT W/ UNDER LOCKER
- SIDE COVERS
- STARTING MOTOR
- STEERING - PADDING
- SUPER CHARGER ASSY
- VALVE W/ CAM SHAFTS AND CHAIN
- • VENTILATION
