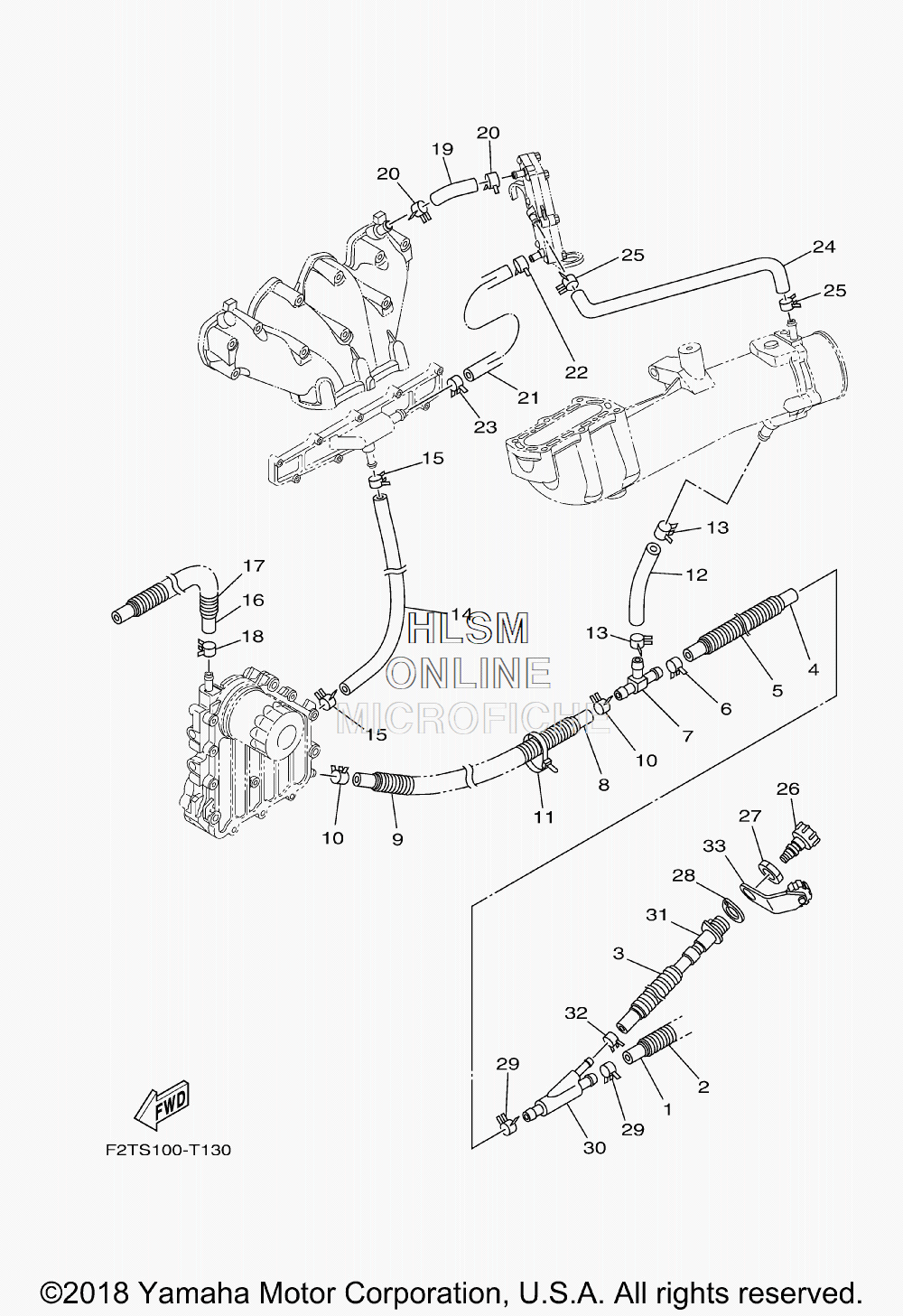

EXHAUST - HOSES для Yamaha FX CRUISER HO - 2018 года выпуска
-
№АртикулНазвание
-
190445-21806-00 HOSE (L250)HOSE (L250)
-
290447-22801-00 TUBE (L200)TUBE (L200)
-
390447-19801-00 TUBE (L485)TUBE (L485)
-
46S5-1243E-01-00 HOSE 2HOSE 2
-
5F2T-U773D-00-00 TUBETUBE
-
690467-200A3-00 CLIPCLIP
-
76BH-12584-00-00 JOINT, HOSE 3JOINT, HOSE 3
-
890445-18012-00 HOSE (L400)HOSE (L400)
-
990447-19005-00 TUBE (L260)TUBE (L260)
-
1090467-160A0-00 CLIPCLIP
-
1190464-35132-00 CLAMPCLAMP
-
126S5-12589-01-00 HOSE 6HOSE 6
-
1390467-200A3-00 CLIPCLIP
-
146BH-1244H-00-00 HOSE 5HOSE 5
-
1590467-150A1-00 CLIPCLIP
-
166CS-12588-00-00 HOSE 5HOSE 5
-
1790447-19018-00 TUBE (L760)TUBE (L760)
-
1890467-160A0-00 CLIPCLIP
-
196ET-12577-00-00 HOSE 2HOSE 2
-
2090467-160A0-00 CLIPCLIP
-
216ET-12579-00-00 HOSE 4HOSE 4
-
2290467-160A0-00 CLIPCLIP
-
2390467-170A5-00 CLIPCLIP
-
246ET-12576-00-00 HOSE 1HOSE 1
-
2590467-160A0-00 CLIPCLIP
-
2667X-E2590-00-00 CONDUCTION ASSYCONDUCTION ASSY
-
27EU0-61652-00-00 NUTNUT
-
28F2S-U7525-00-00 PACKINGPACKING
-
2990467-200A3-00 CLIPCLIP
-
3060E-12581-00-00 JOINT, HOSE 1JOINT, HOSE 1
-
316CS-12580-00-00 JOINT ASSYJOINT ASSY
-
3290467-150A5-00 CLIPCLIP
-
336EY-84385-00-00 CAP,1CAP,1
