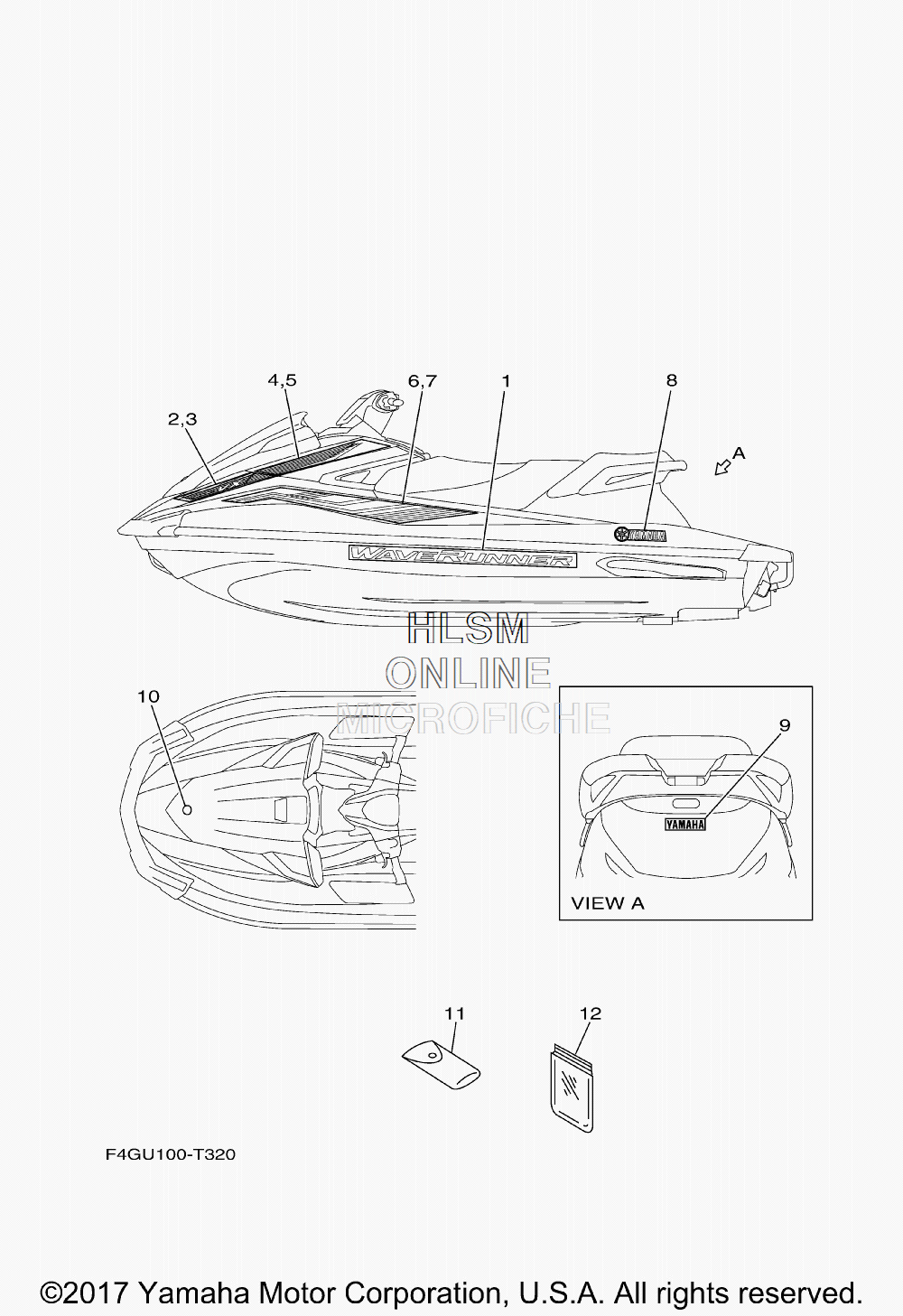

GRAPHICS для Yamaha VX - 2018 года выпуска
-
№АртикулНазвание
-
1F4G-U417B-G0-00 GRAPHIC 1GRAPHIC 1
-
2F4G-U417D-G0-00 GRAPHIC 3 (LH)GRAPHIC 3 (LH)
-
3F4G-U417E-G0-00 GRAPHIC 4 (RH)GRAPHIC 4 (RH)
-
4F4G-U417F-G0-00 GRAPHIC 5 (LH)GRAPHIC 5 (LH)
-
5F4G-U417G-G0-00 GRAPHIC 6 (RH)GRAPHIC 6 (RH)
-
6F4G-U417H-G0-00 GRAPHIC 7 (LH)GRAPHIC 7 (LH)
-
7F4G-U417J-G0-00 GRAPHIC 8 (RH)GRAPHIC 8 (RH)
-
8F2N-U411C-00-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
9F1B-U411C-02-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
10F3Y-U411H-01-00 EMBLEM, TUNING FORKEMBLEM, TUNING FORK
-
11F1B-65986-13-00 TOOL SETTOOL SET
-
12EU0-65901-02-00 TOOL BAGTOOL BAG
Все узлы модели:
- AIR SILENCER W/ INTAKE
- CONTROL CABLES
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER W/ HEAD
- ELECTRICAL 1
- ELECTRICAL 2
- ELECTRICAL 3
- ENGINE MOUNTS
- EXHAUST - HOSES
- EXHAUST - WATER BOX
- EXHAUST SYSTEM
- FRONT STORAGE W/ COVER
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- • GRAPHICS
- GRAPHICS - WARNING / CAUTION
- HANDLEBAR PAD
- HANDLEBAR W/ CONTROLS - STEERING COLUMN
- HULL - GUNWALE - MAT
- HULL FITTINGS W/ SPONSONS
- MODEL INFO - MANUALS
- OIL COOLER
- OIL PUMP
- PROPULSION SYSTEM - EXTERNAL
- PROPULSION SYSTEM - INTERNAL
- REVERSE GATE
- SEAT W/ UNDER LOCKER
- SIDE COVERS
- STARTING MOTOR
- STEERING - PADDING
- SUPER CHARGER ASSY
- VALVE W/ CAM SHAFTS AND CHAIN
- VENTILATION
