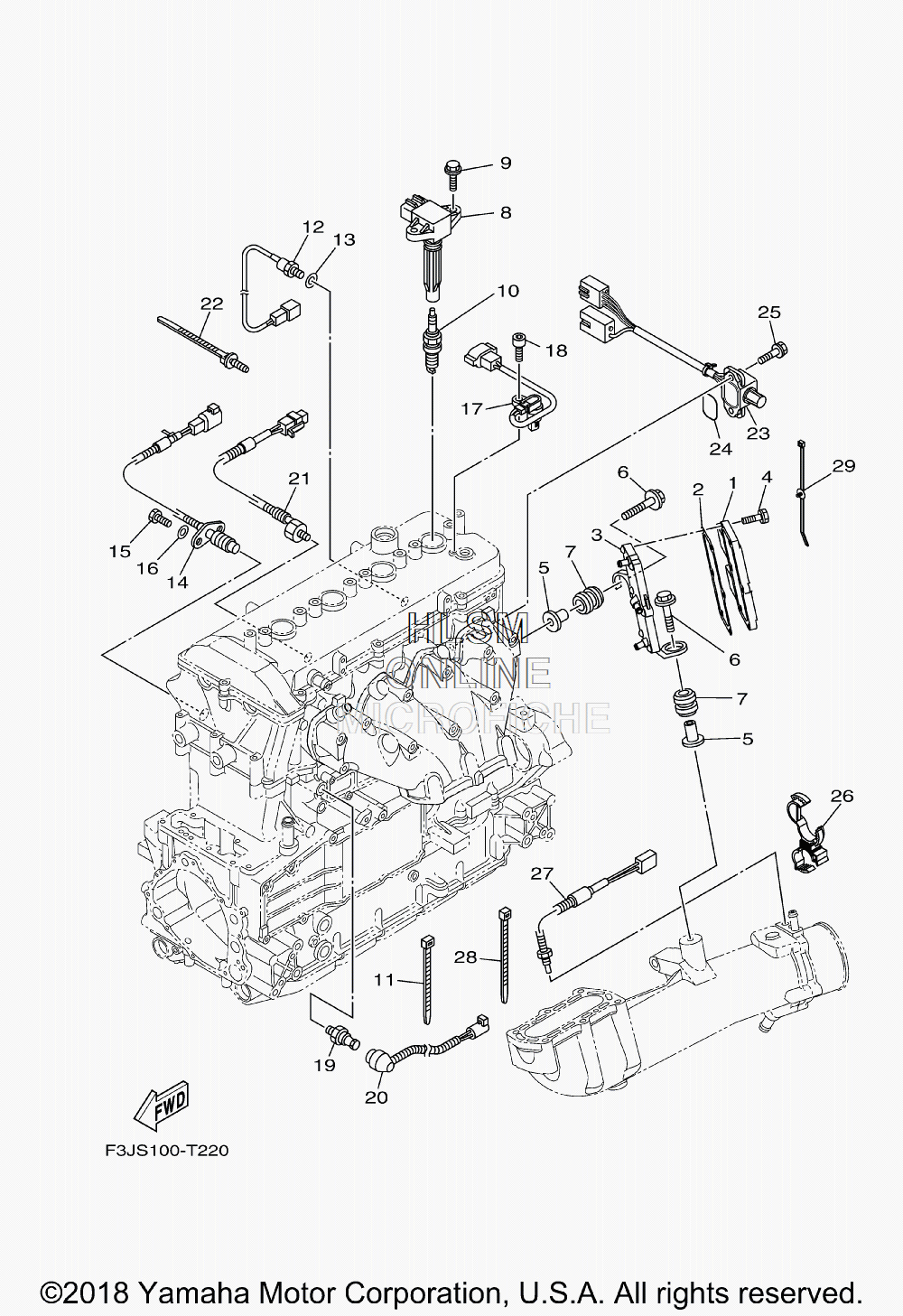

ELECTRICAL - SENSORS для Yamaha FX SVHO - 2019 года выпуска
-
№АртикулНазвание
-
16EK-81960-02-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
26ET-81975-01-00 PLATE, RECTIFIER FITTINGPLATE, RECTIFIER FITTING
-
36ET-81972-00-00 COVER, RECTIFIERCOVER, RECTIFIER
-
490119-06MA4-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
590387-08M37-00 COLLARCOLLAR
-
690119-08M22-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
790480-22M15-00 GROMMETGROMMET
-
86S5-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
990105-06903-00 BOLT, FLANGEBOLT, FLANGE
-
10LFR-7A000-00-00 PLUG, SPARK (NGK LFR7A)PLUG, SPARK (NGK LFR7A)
-
1190464-35132-00 CLAMPCLAMP
-
1261A-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
1392990-10600-00 WASHER, PLATEWASHER, PLATE
-
146CR-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
1597095-06016-00 BOLTBOLT
-
1692995-06600-00 WASHERWASHER
-
1760E-85896-01-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
1891380-06016-00 BOLTBOLT
-
1968V-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
206S5-81315-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
216AN-85780-00-00 SENSOR, KNOCKSENSOR, KNOCK
-
2290464-31001-00 CLAMPCLAMP
-
236CS-8273J-10-00 EARTH PLATE COMP.EARTH PLATE COMP.
-
2493210-32172-00 O-RINGO-RING
-
2590119-06MA3-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2690464-20008-00 CLAMPCLAMP
-
276AA-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
2890464-31001-00 CLAMPCLAMP
-
2990464-31002-00 CLAMPCLAMP
