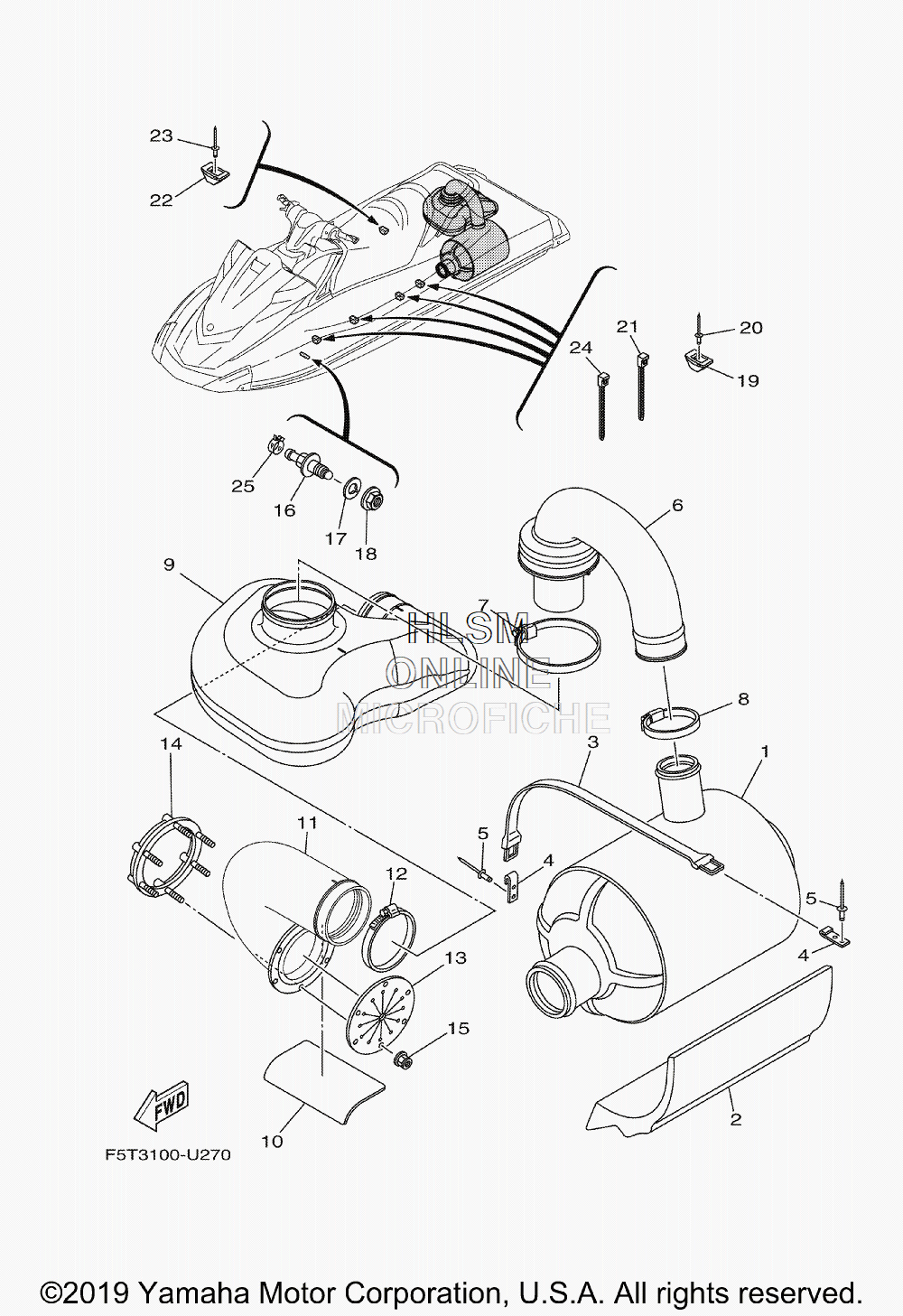

EXHAUST - WATER BOX для Yamaha VX C - 2019 года выпуска
-
№АртикулНазвание
-
1F4G-U7550-02-00 WATER LOCK COMP.WATER LOCK COMP.
-
2F4G-U892F-00-00 FLOATATION, BASE 1FLOATATION, BASE 1
-
3EW2-67821-00-00 BAND, FUEL TANKBAND, FUEL TANK
-
4GA7-65772-00-00 HOOK AHOOK A
-
590267-489U1-00 RIVET,BLINDRIVET,BLIND
-
6F4G-U7555-00-00 HOSE, EXHAUSTHOSE, EXHAUST
-
790601-179U8-00 BAND, HOSE 79BAND, HOSE 79
-
890450-99804-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
9F2N-U4261-00-00 TANK, WATERTANK, WATER
-
10F1S-U8221-00-00 PAD, BATTERYPAD, BATTERY
-
11F2N-U758D-00-00 HOSE,EXHAUST 3HOSE,EXHAUST 3
-
1290450-99801-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
13F1B-U751G-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
14F1S-U757B-01-00 PLATEPLATE
-
15F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
16F2C-U753B-01-00 PILOT, WATERPILOT, WATER
-
17F2C-U7564-00-00 GASKETGASKET
-
18F2C-U2733-00-00 NUTNUT
-
19F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
2090267-489U6-00 RIVET, BLINDRIVET, BLIND
-
2190464-32801-00 CLAMPCLAMP
-
22F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
2390267-489U6-00 RIVET, BLINDRIVET, BLIND
-
2490601-200U2-00 BANDBAND
-
2590467-150A5-00 CLIPCLIP
