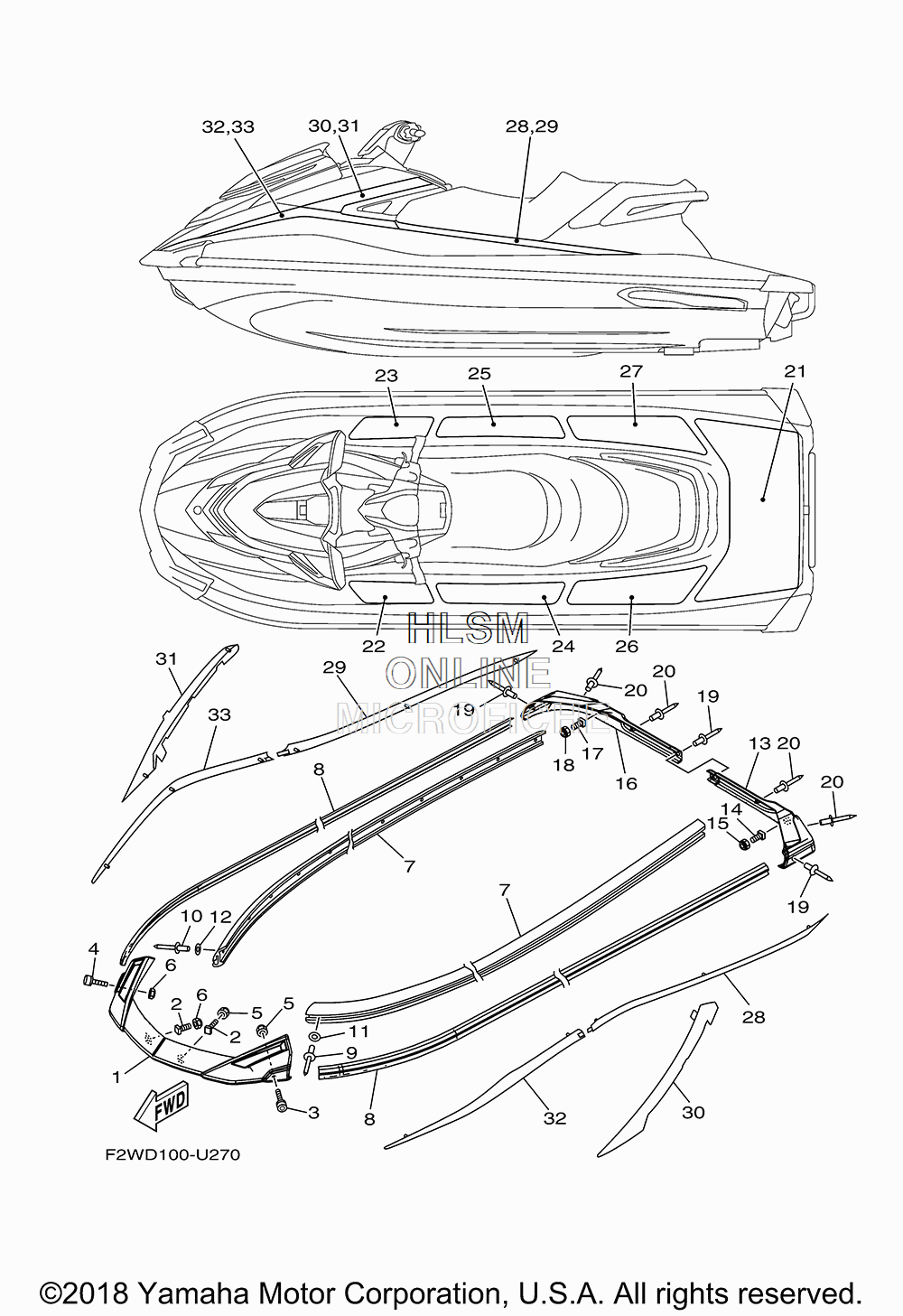

HULL - GUNWALE - MAT для Yamaha VXR - 2019 года выпуска
-
№АртикулНазвание
-
1F2X-U2511-10-00 GUNWALE, BOW (YB - YAMAHA BLACK)GUNWALE, BOW (YB - YAMAHA BLACK)
-
2F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
390110-06191-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
490110-06191-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
6F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
7F2X-U2512-10-00 GUNWALE, SIDE (YB - YAMAHA BLACKB)GUNWALE, SIDE (YB - YAMAHA BLACKB)
-
8F2X-U2519-D0-00 INNER, GUNWALE (YELLOW FOR VPBM6 - BLUE METALLIC)INNER, GUNWALE (YELLOW FOR VPBM6 - BLUE METALLIC)
-
8F2X-U2519-40-00 INNER, GUNWALE (RED FOR RM9 - RED METALLIC)INNER, GUNWALE (RED FOR RM9 - RED METALLIC)
-
990267-489U8-00 RIVET, BLINDRIVET, BLIND
-
1090267-489U8-00 RIVET, BLINDRIVET, BLIND
-
119299R-05200-00 WASHERWASHER
-
129299R-05200-00 WASHERWASHER
-
13F2X-U251D-10-00 GUNWALE, STERN 1 (YB - YAMAHA BLACK)GUNWALE, STERN 1 (YB - YAMAHA BLACK)
-
14F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
15F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
16F2X-U251E-10-00 GUNWALE, STERN 2 (YB - YAMAHA BLACK)GUNWALE, STERN 2 (YB - YAMAHA BLACK)
-
17F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
18F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
1990267-48825-00 RIVET, BLINDRIVET, BLIND
-
2090267-48825-00 RIVET, BLINDRIVET, BLIND
-
21F3P-U3581-00-00 MAT, UPPER (GRAY/BLACK FOR RED FOR RM9 - RED METALLIC)MAT, UPPER (GRAY/BLACK FOR RED FOR RM9 - RED METALLIC)
-
21F3P-U3581-10-00 MAT, UPPER (BLACK/BLUE FOR VPBM6 - BLUE METALLIC)MAT, UPPER (BLACK/BLUE FOR VPBM6 - BLUE METALLIC)
-
22F3P-U351H-00-00 MAT, STEP 1 (GRAY/BLACK FOR RED FOR RM9 - RED METALLIC)MAT, STEP 1 (GRAY/BLACK FOR RED FOR RM9 - RED METALLIC)
-
22F3P-U351H-10-00 MAT, STEP 1 (BLACK/BLUE FOR VPBM6 - BLUE METALLIC)MAT, STEP 1 (BLACK/BLUE FOR VPBM6 - BLUE METALLIC)
-
23F3P-U351J-00-00 MAT, STEP 2 (GRAY/BLACK FOR RED FOR RM9 - RED METALLIC)MAT, STEP 2 (GRAY/BLACK FOR RED FOR RM9 - RED METALLIC)
-
23F3P-U351J-10-00 MAT, STEP 2 (BLACK/BLUE FOR VPBM6 - BLUE METALLIC)MAT, STEP 2 (BLACK/BLUE FOR VPBM6 - BLUE METALLIC)
-
24F3P-U351K-00-00 MAT, STEP 3 (GRAY/BLACK FOR RED FOR RM9 - RED METALLIC)MAT, STEP 3 (GRAY/BLACK FOR RED FOR RM9 - RED METALLIC)
-
24F3P-U351K-10-00 MAT, STEP 3 (BLACK/BLUE FOR VPBM6 - BLUE METALLIC)MAT, STEP 3 (BLACK/BLUE FOR VPBM6 - BLUE METALLIC)
-
25F3P-U351M-00-00 MAT, STEP 4 (GRAY/BLACK FOR RED FOR RM9 - RED METALLIC)MAT, STEP 4 (GRAY/BLACK FOR RED FOR RM9 - RED METALLIC)
-
25F3P-U351M-10-00 MAT, STEP 4 (BLACK/BLUE FOR VPBM6 - BLUE METALLIC)MAT, STEP 4 (BLACK/BLUE FOR VPBM6 - BLUE METALLIC)
-
26F3P-U351N-00-00 MAT, STEP 5 (GRAY/BLACK FOR RED FOR RM9 - RED METALLIC)MAT, STEP 5 (GRAY/BLACK FOR RED FOR RM9 - RED METALLIC)
-
26F3P-U351N-10-00 MAT, STEP 5 (BLACK/BLUE FOR VPBM6 - BLUE METALLIC)MAT, STEP 5 (BLACK/BLUE FOR VPBM6 - BLUE METALLIC)
-
27F3P-U351P-00-00 MAT, STEP 6 (GRAY/BLACK FOR RED FOR RM9 - RED METALLIC)MAT, STEP 6 (GRAY/BLACK FOR RED FOR RM9 - RED METALLIC)
-
27F3P-U351P-10-00 MAT, STEP 6 (BLACK/BLUE FOR VPBM6 - BLUE METALLIC)MAT, STEP 6 (BLACK/BLUE FOR VPBM6 - BLUE METALLIC)
-
28F2X-U89A8-60-00 ORNAMENT, STERN (LEFT HAND) (BLUE FOR VPBM6 - BLUE METALLIC)ORNAMENT, STERN (LEFT HAND) (BLUE FOR VPBM6 - BLUE METALLIC)
-
28F2X-U89A8-00-00 ORNAMENT, STERN (LEFT HAND) (YB - YAMAHA BLACK FOR RED FOR RM9 - RED METALLIC)ORNAMENT, STERN (LEFT HAND) (YB - YAMAHA BLACK FOR RED FOR RM9 - RED METALLIC)
-
29F2X-U89A9-60-00 ORNAMENT, STERN (RIGHT HAND) (BLUE FOR VPBM6 - BLUE METALLIC)ORNAMENT, STERN (RIGHT HAND) (BLUE FOR VPBM6 - BLUE METALLIC)
-
29F2X-U89A9-00-00 ORNAMENT, STERN (RIGHT HAND) (YB - YAMAHA BLACK FOR RED FOR RM9 - RED METALLIC)ORNAMENT, STERN (RIGHT HAND) (YB - YAMAHA BLACK FOR RED FOR RM9 - RED METALLIC)
-
30F2X-U89AA-60-00 ORNAMENT, MIDDLE (LEFT HAND) (BLUE FOR VPBM6 - BLUE METALLIC)ORNAMENT, MIDDLE (LEFT HAND) (BLUE FOR VPBM6 - BLUE METALLIC)
-
30F2X-U89AA-00-00 ORNAMENT, MIDDLE (LEFT HAND) (YB - YAMAHA BLACK FOR RED FOR RM9 - RED METALLIC)ORNAMENT, MIDDLE (LEFT HAND) (YB - YAMAHA BLACK FOR RED FOR RM9 - RED METALLIC)
-
31F2X-U89AB-60-00 ORNAMENT, MIDDLE (RIGHT HAND) (BLUE FOR VPBM6 - BLUE METALLIC)ORNAMENT, MIDDLE (RIGHT HAND) (BLUE FOR VPBM6 - BLUE METALLIC)
-
31F2X-U89AB-00-00 ORNAMENT, MIDDLE (RIGHT HAND) (YB - YAMAHA BLACK FOR RED FOR RM9 - RED METALLIC)ORNAMENT, MIDDLE (RIGHT HAND) (YB - YAMAHA BLACK FOR RED FOR RM9 - RED METALLIC)
-
32F2X-U89AC-60-00 ORNAMENT, BOW (LEFT HAND) (BLUE FOR VPBM6 - BLUE METALLIC)ORNAMENT, BOW (LEFT HAND) (BLUE FOR VPBM6 - BLUE METALLIC)
-
32F2X-U89AC-00-00 ORNAMENT, BOW (LEFT HAND) (YB - YAMAHA BLACK FOR RED FOR RM9 - RED METALLIC)ORNAMENT, BOW (LEFT HAND) (YB - YAMAHA BLACK FOR RED FOR RM9 - RED METALLIC)
-
33F2X-U89AD-00-00 ORNAMENT, BOW (RIGHT HAND) (YB - YAMAHA BLACK FOR RED FOR RM9 - RED METALLIC)ORNAMENT, BOW (RIGHT HAND) (YB - YAMAHA BLACK FOR RED FOR RM9 - RED METALLIC)
-
33F2X-U89AD-60-00 ORNAMENT, BOW (RIGHT HAND) (BLUE FOR VPBM6 - BLUE METALLIC)ORNAMENT, BOW (RIGHT HAND) (BLUE FOR VPBM6 - BLUE METALLIC)
