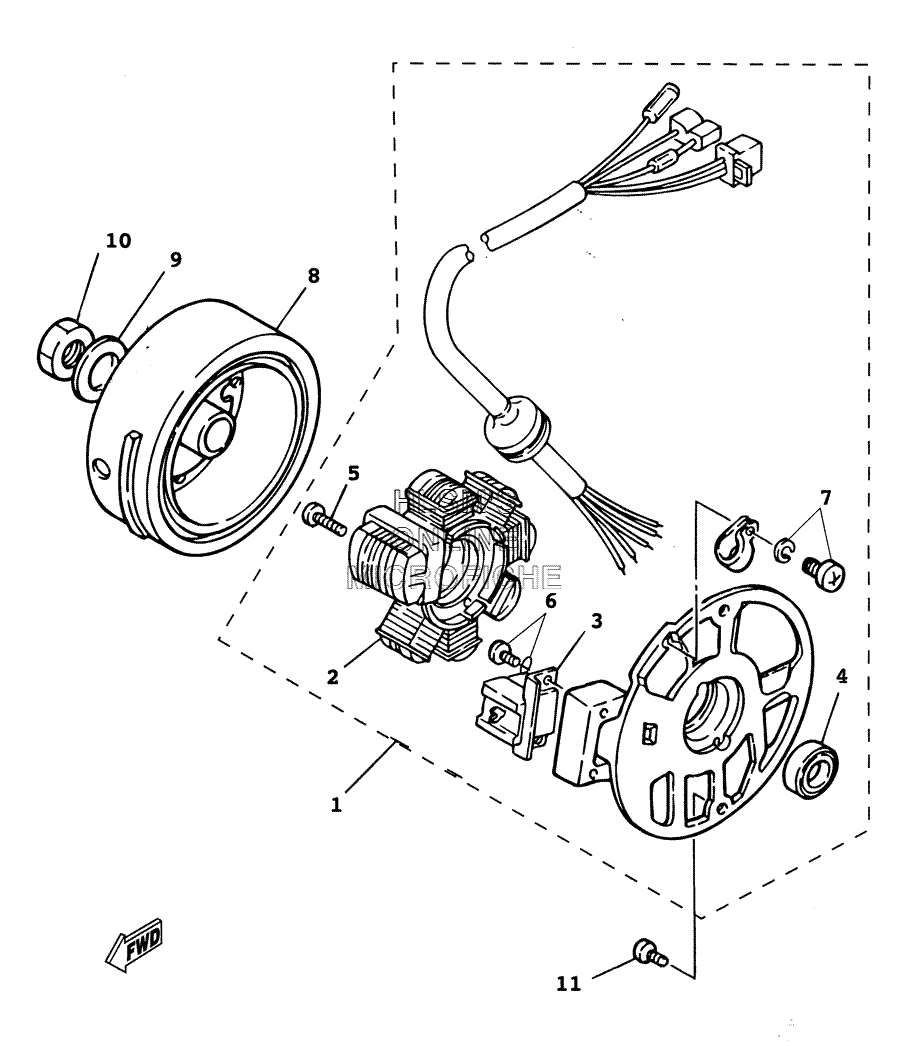

GENERATOR ASSY. для Yamaha ZUMA - 2002 года выпуска
-
№АртикулНазвание
-
15PJ-H5560-00-00 BASE ASSY.BASE ASSY.
-
23GF-H1403-V0-00 ...STATOR COMP....STATOR COMP.
-
33GF-H5580-V0-00 ...COIL, PULSER...COIL, PULSER
-
493104-19097-00 ...OIL SEAL, SO-TYPE...OIL SEAL, SO-TYPE
-
598511-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
697601-05110-00 ...SCREW, PAN HEAD WITH WASHER...SCREW, PAN HEAD WITH WASHER
-
797601-04106-00 ...SCREW, PAN HEAD WITH WASHER...SCREW, PAN HEAD WITH WASHER
-
84DY-H5550-00-00 ROTOR ASSY.ROTOR ASSY.
-
992907-10600-00 WASHER, PLATEWASHER, PLATE
-
1090170-10219-00 NUTNUT
-
1198507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
