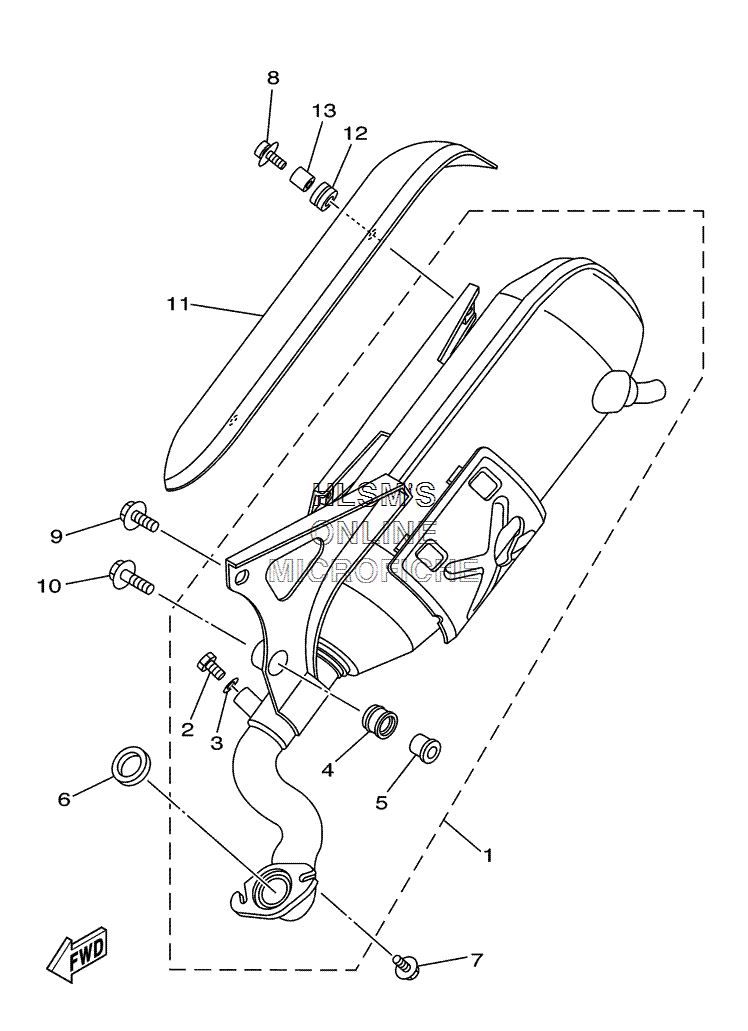

EXHAUST ASSY. для Yamaha VINO CLASSIC - 2004 года выпуска
-
№АртикулНазвание
-
15LY-W1462-01-00 EXHAUST PIPE ASSY. 1EXHAUST PIPE ASSY. 1
-
297080-06008-00 ...BOLT...BOLT
-
392990-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
43YK-14445-00-00 ...GROMMET...GROMMET
-
53YK-14779-00-00 ...COLLAR...COLLAR
-
64KN-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
790153-06061-00 SCREW, HEXAGONSCREW, HEXAGON
-
890159-06011-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
995817-08020-00 BOLT, FLANGEBOLT, FLANGE
-
1095817-08030-00 BOLT, FLANGEBOLT, FLANGE
-
115GD-14708-00-00 PROTECTOR ASSY.PROTECTOR ASSY.
-
1290480-12581-00 GROMMETGROMMET
-
1390387-06023-00 COLLARCOLLAR
