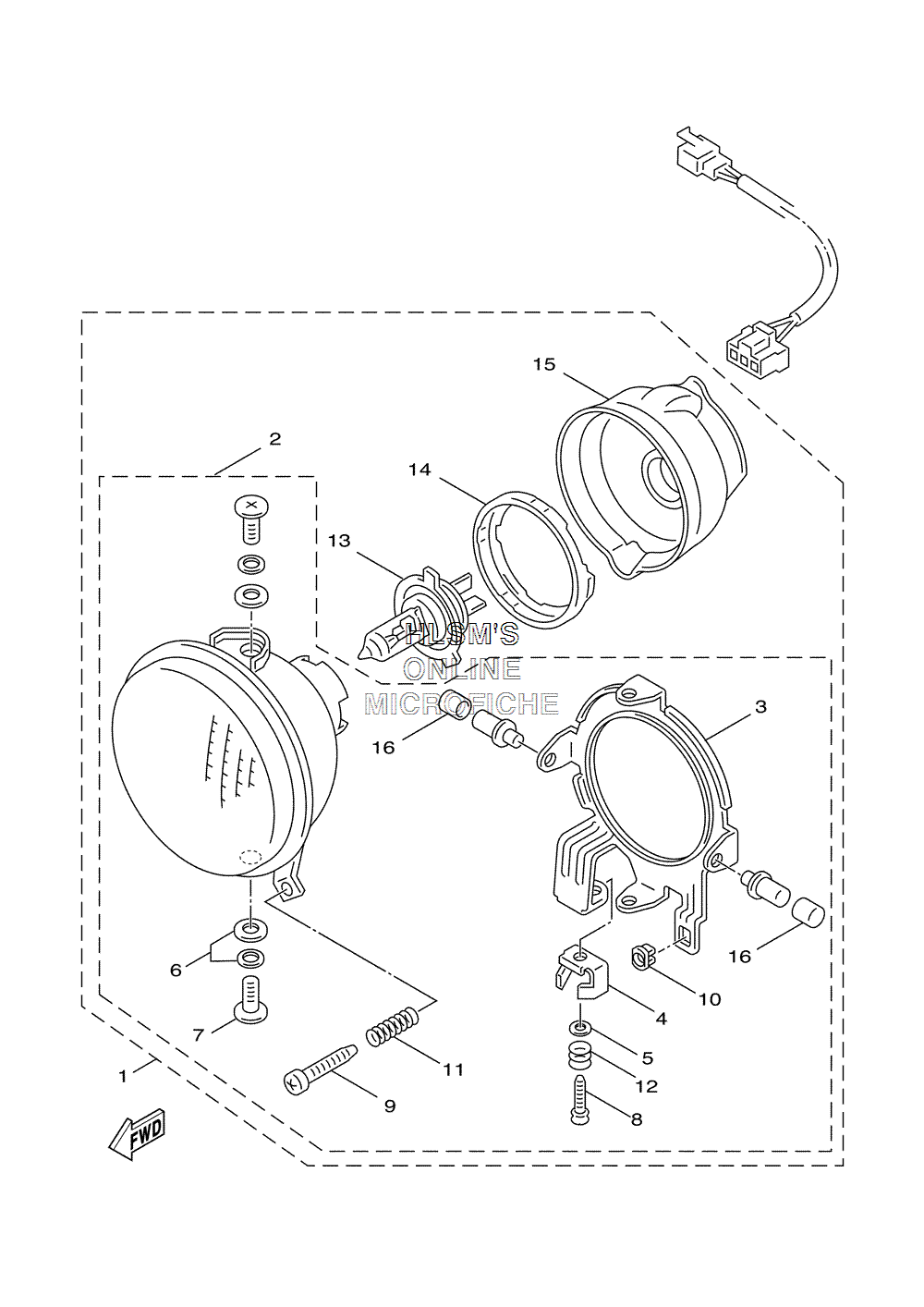

HEADLIGHT ASSY. для Yamaha VINO 125 - 2005 года выпуска
-
№АртикулНазвание
-
15YR-H4310-00-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
25YR-H4320-00-00 ...LENS ASSY...LENS ASSY
-
35YR-H4318-00-00 ...STAY, HEADLIGHT 1...STAY, HEADLIGHT 1
-
45YR-H4334-00-00 ...NUT, ADJUSTING...NUT, ADJUSTING
-
55YR-H4344-00-00 ...WASHER, PLAIN...WASHER, PLAIN
-
65YR-H4344-10-00 ...WASHER, PLAIN...WASHER, PLAIN
-
75PJ-H4325-00-00 ...SCREW, RIM FITTING...SCREW, RIM FITTING
-
85YR-H4331-00-00 ...SCREW, RIM ADJUSTING...SCREW, RIM ADJUSTING
-
95YR-H4331-10-00 ...SCREW, RIM ADJUSTING...SCREW, RIM ADJUSTING
-
105PJ-H431T-00-00 ...METAL, ADJUSTING...METAL, ADJUSTING
-
115YR-H4332-00-00 ...SPRING, SCREW...SPRING, SCREW
-
125YR-H4332-10-00 ...SPRING, SCREW...SPRING, SCREW
-
133YB-H4314-00-00 ...BULB, HEADLIGHT (12V-60/55W)...BULB, HEADLIGHT (12V-60/55W)
-
145PJ-H4397-10-00 ...COVER, SOCKET...COVER, SOCKET
-
155YR-H4378-00-00 ...CAP...CAP
-
165YR-H4345-00-00 ...DAMPER, HEADLIGHT...DAMPER, HEADLIGHT
