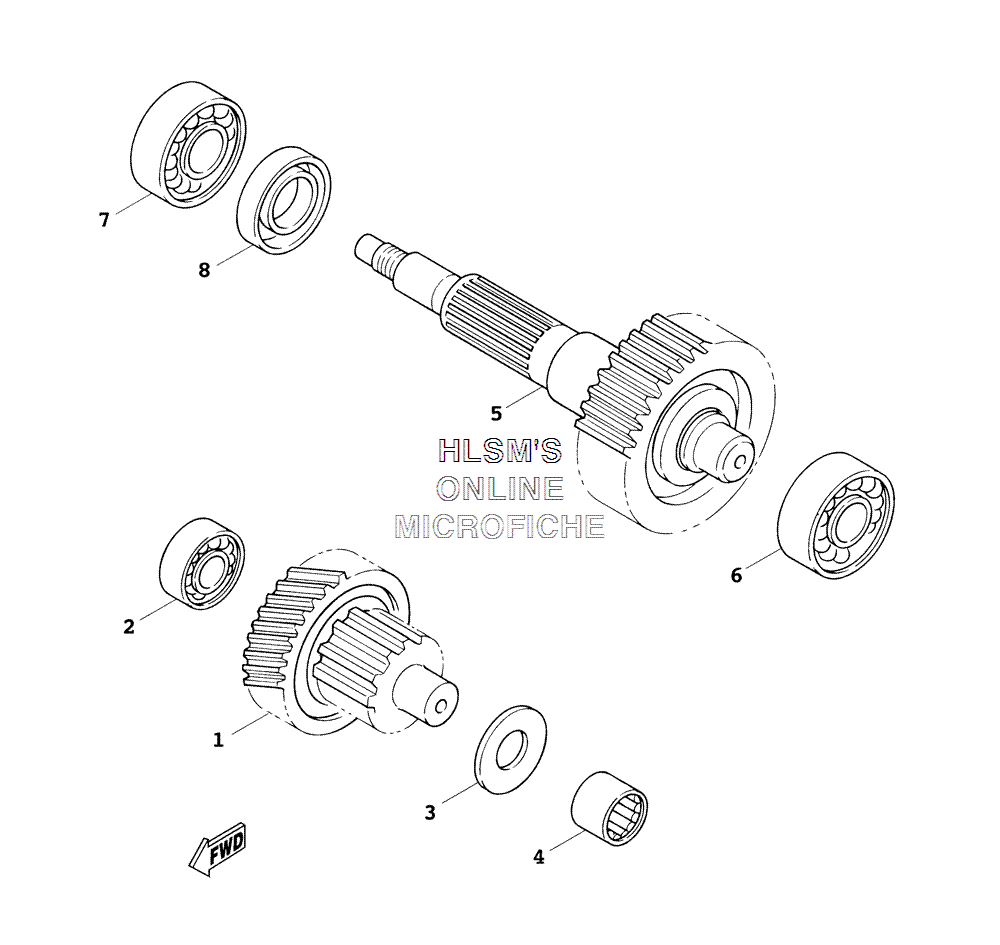

TRANSMISSION для Yamaha VINO 125 - 2005 года выпуска
-
№АртикулНазвание
-
14CW-E7410-02-00 MAIN AXLE COMP.MAIN AXLE COMP.
-
293306-301Y1-00 BEARING (6301)BEARING (6301)
-
390201-156F8-00 WASHER, PLATE (0.8T)WASHER, PLATE (0.8T)
-
493311-315Y2-00 BEARINGBEARING
-
54TE-E7420-01-00 DRIVE AXLE ASSYDRIVE AXLE ASSY
-
693306-302Y1-00 BEARINGBEARING
-
793306-204YH-00 BEARINGBEARING
-
893102-26852-00 OIL SEALOIL SEAL
