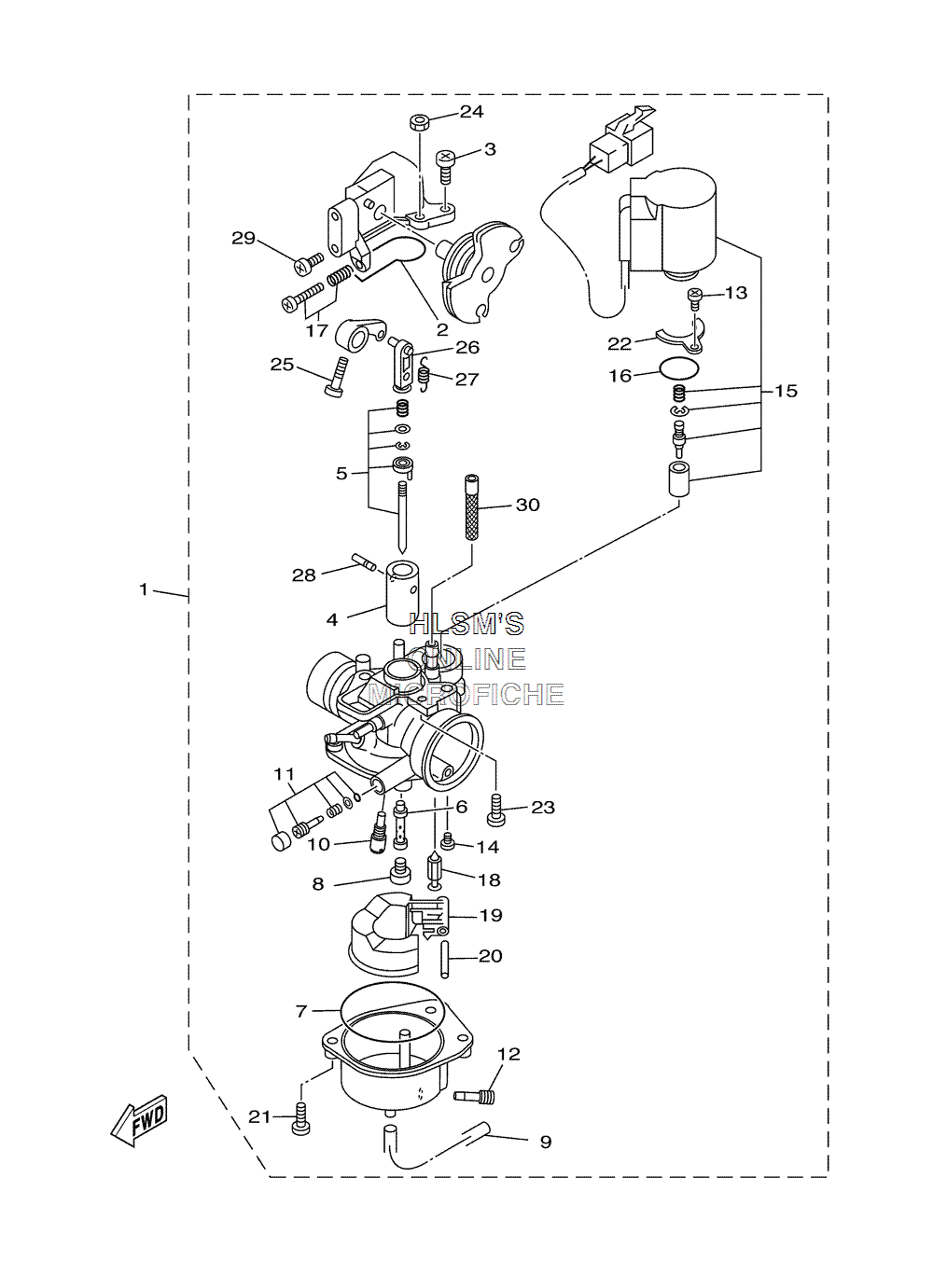

CARBURETOR ASSY. для Yamaha VINO CLASSIC - 2005 года выпуска
-
№АртикулНазвание
-
15LY-14301-01-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
24LV-14561-00-00 ...O-RING...O-RING
-
35Y1-24444-00-00 ...SCREW...SCREW
-
44LV-14312-25-00 ...VALVE, THROTTLE 1...VALVE, THROTTLE 1
-
55BM-1490J-00-00 ...NEEDLE SET...NEEDLE SET
-
63YK-14341-00-00 ...NOZZLE, MAIN...NOZZLE, MAIN
-
74JP-14384-01-00 ...GASKET, FLOAT CHAMBER...GASKET, FLOAT CHAMBER
-
814T-14343-32-00 ...JET, MAIN (# 64)...JET, MAIN (# 64)
-
93KJ-14349-01-00 ...PIPE...PIPE
-
105BM-14353-23-00 ...JET, PILOT (# 46)...JET, PILOT (# 46)
-
114JP-14104-00-00 ...AIR SCREW SET...AIR SCREW SET
-
1214T-14323-00-00 ...SCREW...SCREW
-
1398501-04008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1498501-03006-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
155EM-1410A-00-00 ...STARTER SET...STARTER SET
-
164KL-14397-00-00 ...O-RING...O-RING
-
174LV-14103-00-00 ...THROTTLE SCREW SET...THROTTLE SCREW SET
-
182JA-14392-00-00 ...VALVE, NEEDLE...VALVE, NEEDLE
-
191HV-14385-01-00 ...FLOAT...FLOAT
-
20367-14386-00-00 ...PIN, FLOAT...PIN, FLOAT
-
2197801-04016-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
224JP-14243-01-00 ...PLATE...PLATE
-
234LV-14429-00-00 ...SCREW...SCREW
-
2495301-04700-00 ...NUT...NUT
-
2597801-03014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
264LV-14274-00-00 ...CONNECTOR...CONNECTOR
-
274LV-14286-00-00 ...SPRING...SPRING
-
284LV-14434-00-00 ...SHAFT...SHAFT
-
2998507-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
304SE-1445E-00-00 ...FILTER 1...FILTER 1
