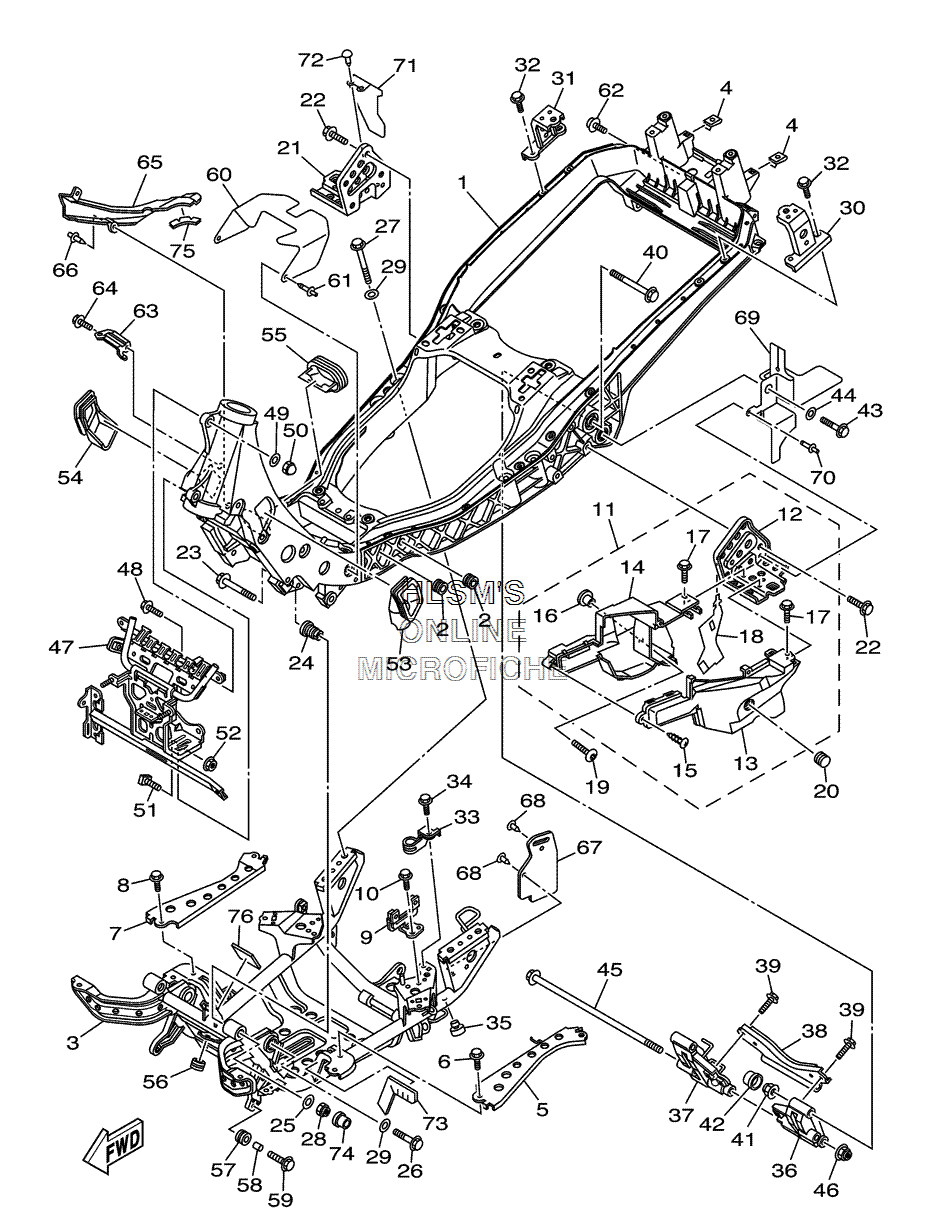

FRAME для Yamaha MAJESTY - 2006 года выпуска
-
№АртикулНазвание
-
15RU-21110-20-00 FRAME COMP.FRAME COMP.
-
290480-16004-00 GROMMETGROMMET
-
35RU-2111B-20-00 FRAME SUB COMP.FRAME SUB COMP.
-
490183-05076-00 NUT, SPRINGNUT, SPRING
-
55RU-22144-10-00 BRACKET, FOOTREST 1BRACKET, FOOTREST 1
-
695807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
75RU-22145-00-00 BRACKET, FOOTREST 2BRACKET, FOOTREST 2
-
895807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
95RU-21359-00-00 BRACKET, COILBRACKET, COIL
-
1095817-08012-00 BOLT, FLANGEBOLT, FLANGE
-
115RU-27430-00-00 REAR FOOTREST ASSY. 1REAR FOOTREST ASSY. 1
-
125RU-27452-00-00 ...BRACKET, FOOTREST 1...BRACKET, FOOTREST 1
-
135RU-2117F-00-00 ...COVER...COVER
-
145RU-2117M-00-00 ...COVER 2...COVER 2
-
1597707-40014-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1690387-065J6-00 ...COLLAR...COLLAR
-
1790119-05009-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
185RU-22129-00-00 ...COVER, THRUST 2...COVER, THRUST 2
-
1990149-05244-00 SCREWSCREW
-
2090338-15004-00 PLUGPLUG
-
215RU-27462-00-00 BRACKET, FOOTREST 2BRACKET, FOOTREST 2
-
2295817-10025-00 BOLT, FLANGEBOLT, FLANGE
-
2390105-10095-00 BOLT, FLANGEBOLT, FLANGE
-
245RU-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
2590201-10144-00 WASHER, PLATEWASHER, PLATE
-
2690105-10102-00 BOLT, FLANGEBOLT, FLANGE
-
2790105-10107-00 BOLT, FLANGEBOLT, FLANGE
-
2895607-10200-00 NUT, U FLANGENUT, U FLANGE
-
2990201-105A2-00 WASHER, PLATEWASHER, PLATE
-
305RU-21341-00-00 BRACKET, SEAT 1BRACKET, SEAT 1
-
315RU-21342-00-00 BRACKET, SEAT 2BRACKET, SEAT 2
-
3295817-08025-00 BOLT, FLANGEBOLT, FLANGE
-
335RU-21374-00-00 HOLDER, FUEL PIPEHOLDER, FUEL PIPE
-
3495807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
355RU-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
365RU-2140X-10-00 ENGINE BRACKET SUB-COMP. 1ENGINE BRACKET SUB-COMP. 1
-
375RU-2140Y-10-00 ENGINE BRACKET SUB-COMP. 2ENGINE BRACKET SUB-COMP. 2
-
385RU-21411-00-00 BRACKET, ENGINE 1BRACKET, ENGINE 1
-
3990105-10109-00 BOLT, FLANGEBOLT, FLANGE
-
4090105-12743-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
4195607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
425RU-13569-00-00 PLUG, BLINDPLUG, BLIND
-
4390105-10088-00 BOLT, FLANGEBOLT, FLANGE
-
4490201-105A2-00 WASHER, PLATEWASHER, PLATE
-
4590105-12106-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
4695607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
475RU-28356-01-00 STAY 1STAY 1
-
4895807-10030-00 BOLT, FLANGEBOLT, FLANGE
-
4992907-10200-00 WASHER, PLAINWASHER, PLAIN
-
5090176-10009-00 NUT, CAPNUT, CAP
-
5190108-10001-00 BOLT, SQUAREBOLT, SQUARE
-
5295707-10500-00 NUT, FLANGENUT, FLANGE
-
535RU-2117V-00-00 COVER 7COVER 7
-
545RU-2117W-00-00 COVER 8COVER 8
-
555RU-2117X-00-00 COVER 9COVER 9
-
5690480-18276-00 GROMMETGROMMET
-
5790480-16301-00 GROMMETGROMMET
-
5890387-0714B-00 COLLARCOLLAR
-
5990119-06118-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
605RU-2117Y-01-00 COVER 10COVER 10
-
6190269-07076-00 RIVETRIVET
-
6290110-06037-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
635RU-12443-00-00 STAYSTAY
-
6495807-06014-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
655RU-2135F-01-00 COVERCOVER
-
6690269-07008-00 RIVETRIVET
-
675RU-2139W-00-00 COVERCOVER
-
6890269-05039-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
695RU-2131D-00-00 PLATE, COVERPLATE, COVER
-
7090269-05039-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
715RU-2132H-00-00 PLATE, COVERPLATE, COVER
-
7290269-05039-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
735RU-2139U-01-00 DAMPER 2DAMPER 2
-
7490480-13295-00 GROMMETGROMMET
-
755RU-21541-00-00 DAMPER 1DAMPER 1
-
764XY-21649-00-00 DAMPERDAMPER
