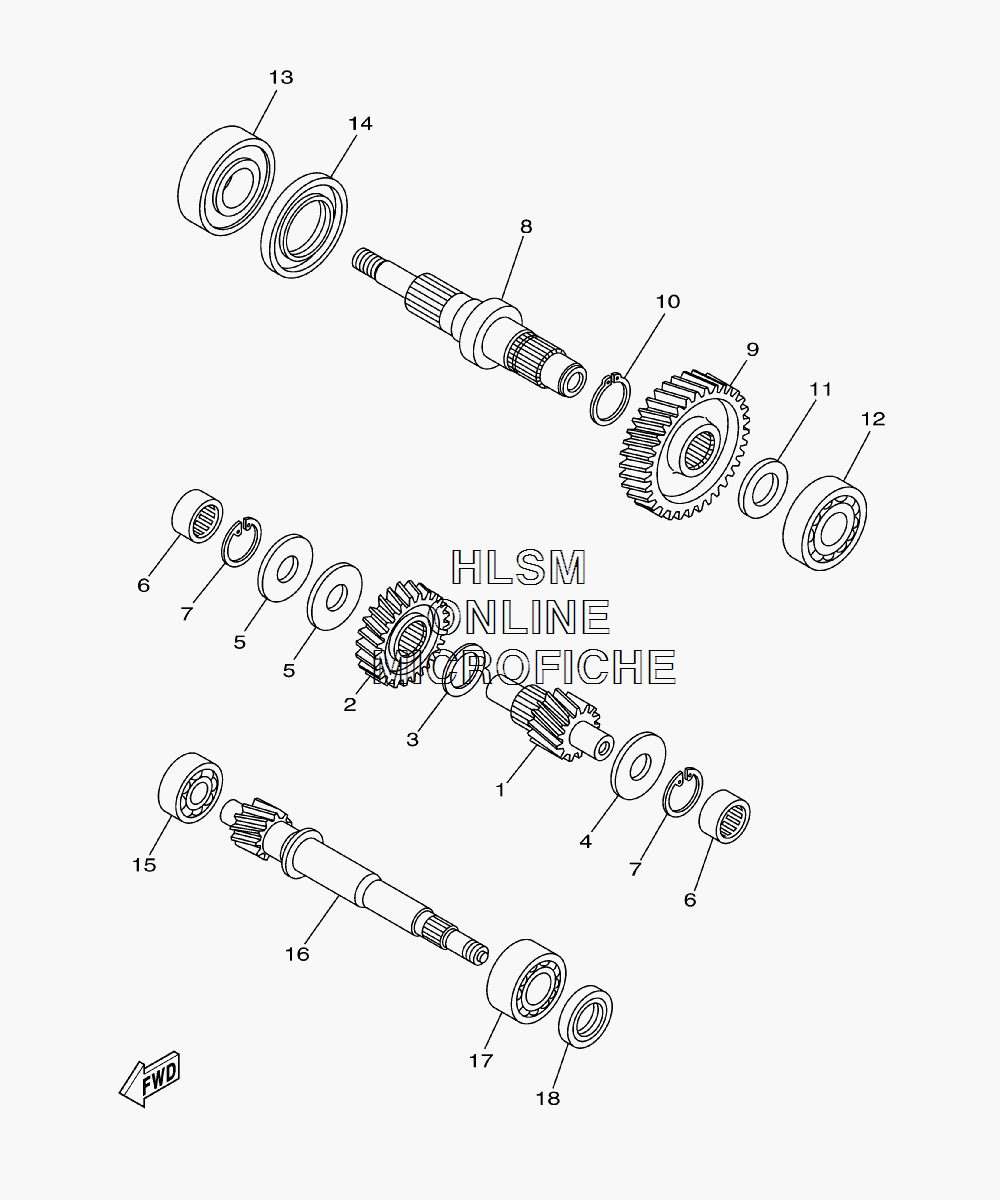

TRANSMISSION для Yamaha MORPHOUS - 2007 года выпуска
-
№АртикулНазвание
-
15VG-17411-00-00 AXLE, MAIN (14T)AXLE, MAIN (14T)
-
25VG-16151-00-00 GEAR, PRIMARY DRIVEN (36T)GEAR, PRIMARY DRIVEN (36T)
-
390201-25016-00 WASHER, PLATEWASHER, PLATE
-
490201-20013-00 WASHER, PLATEWASHER, PLATE
-
590201-20025-00 WASHER, PLATE (D=58, T=2.5)WASHER, PLATE (D=58, T=2.5)
-
693311-52084-00 BEARINGBEARING
-
799009-34700-00 CIRCLIPCIRCLIP
-
81B7-17421-00-00 AXLE, DRIVEAXLE, DRIVE
-
95VG-17211-00-00 GEAR, 1ST WHEEL (50T)GEAR, 1ST WHEEL (50T)
-
1099009-28400-00 CIRCLIPCIRCLIP
-
1190201-25014-00 WASHER, PLATEWASHER, PLATE
-
1293306-30551-00 BEARINGBEARING
-
1393306-30640-00 BEARINGBEARING
-
1493102-44008-00 OIL SEALOIL SEAL
-
1593306-30401-00 BEARINGBEARING
-
165VG-16111-00-00 GEAR, PRIMARY DRIVE (14T)GEAR, PRIMARY DRIVE (14T)
-
1793305-20510-00 BEARINGBEARING
-
1893102-25299-00 OIL SEAL,SD-TYPEOIL SEAL,SD-TYPE
