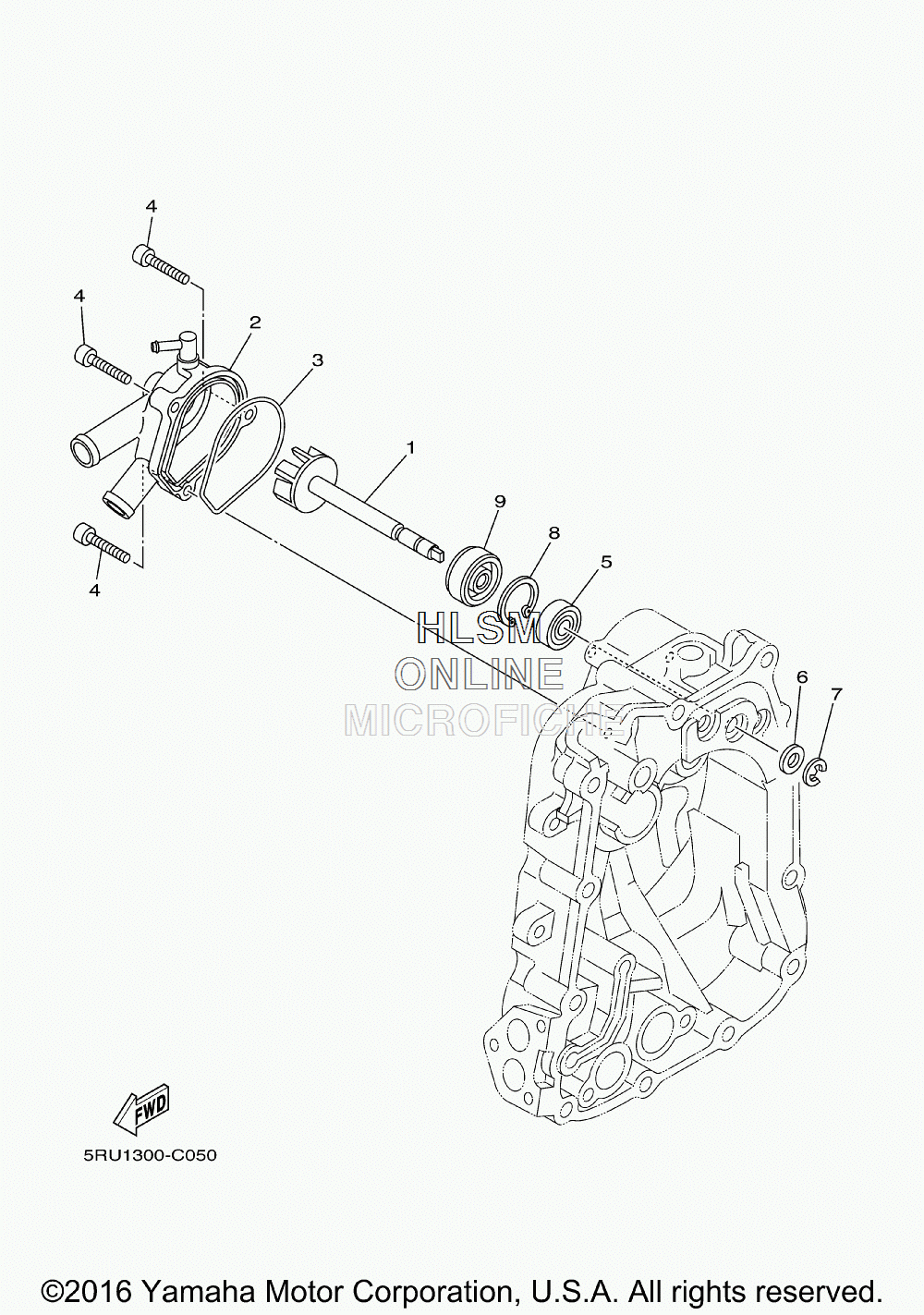

WATER PUMP ASSY. для Yamaha MAJESTY - 2008 года выпуска
-
№АртикулНазвание
-
15RU-12450-00-00 IMPELLER SHAFT ASSYIMPELLER SHAFT ASSY
-
25RU-W1242-00-00 COVER, HOUSINGCOVER, HOUSING
-
35RU-12439-00-00 O-RINGO-RING
-
491317-06025-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
593306-00013-00 BEARINGBEARING
-
690201-08382-00 WASHER, PLATEWASHER, PLATE
-
799001-07600-00 CIRCLIPCIRCLIP
-
893420-28055-00 CIRCLIPCIRCLIP
-
993103-10011-00 OIL SEALOIL SEAL
