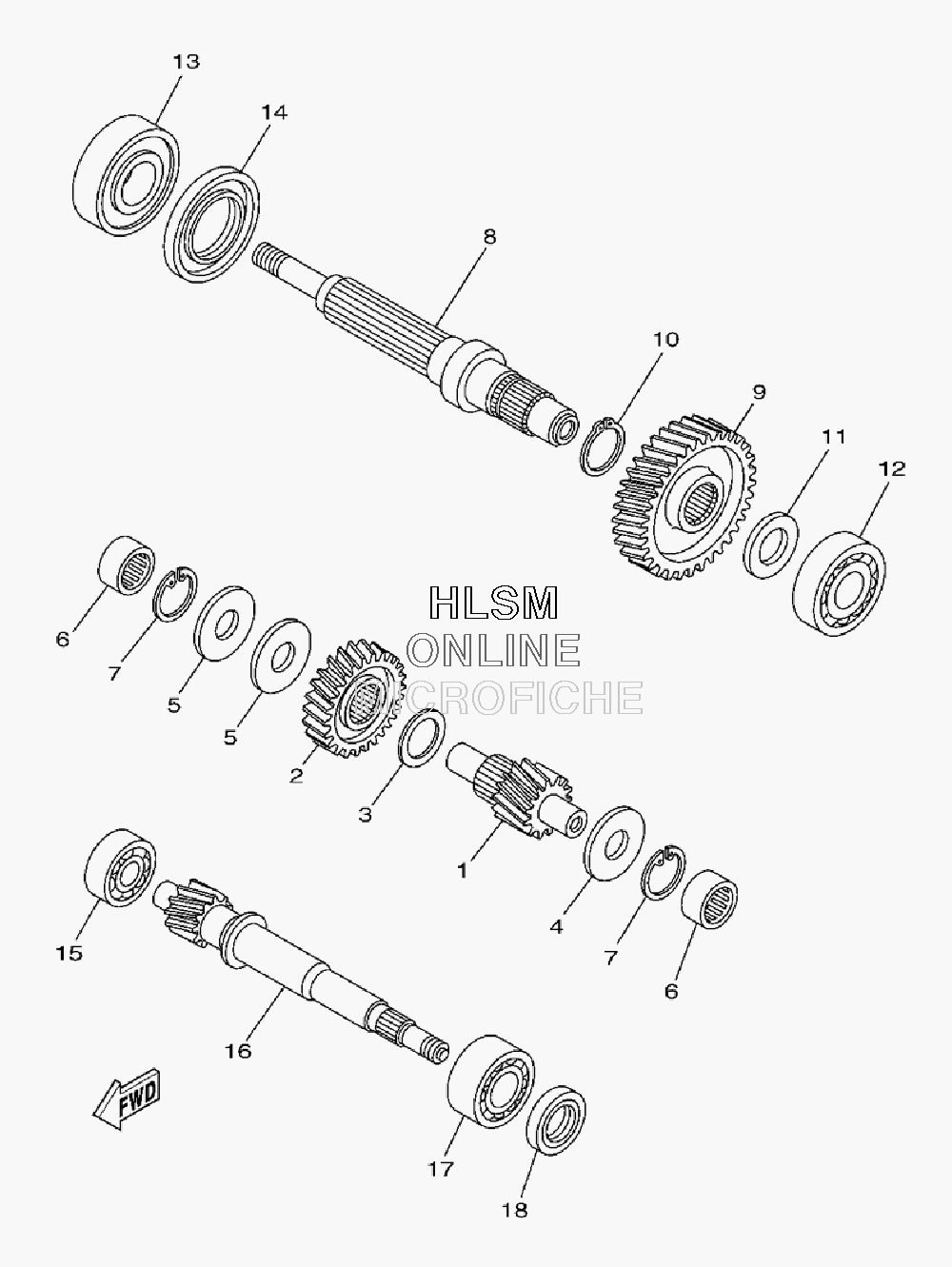

TRANSMISSION для Yamaha MAJESTY - 2009 года выпуска
-
№АртикулНазвание
-
15RU-17411-10-00 AXLE, MAIN (16T)AXLE, MAIN (16T)
-
25RU-16151-00-00 GEAR, PRIMARY DRIVEN (31T)GEAR, PRIMARY DRIVEN (31T)
-
390201-29013-00 WASHER, PLATEWASHER, PLATE
-
490201-20013-00 WASHER, PLATEWASHER, PLATE
-
590201-20025-00 WASHER, PLATEWASHER, PLATE
-
693311-52084-00 BEARINGBEARING
-
799009-34700-00 CIRCLIPCIRCLIP
-
85RU-17421-00-00 AXLE, DRIVEAXLE, DRIVE
-
95RU-17211-10-00 GEAR, 1ST WHEEL (42T)GEAR, 1ST WHEEL (42T)
-
1099009-28400-00 CIRCLIPCIRCLIP
-
1190201-25014-00 WASHER, PLATEWASHER, PLATE
-
1293306-30551-00 BEARINGBEARING
-
1393306-30640-00 BEARINGBEARING
-
1493102-44008-00 OIL SEALOIL SEAL
-
1593306-30401-00 BEARINGBEARING
-
165RU-16111-00-00 GEAR, PRIMARY DRIVE (14T)GEAR, PRIMARY DRIVE (14T)
-
1793305-20510-00 BEARINGBEARING
-
1893102-25299-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
