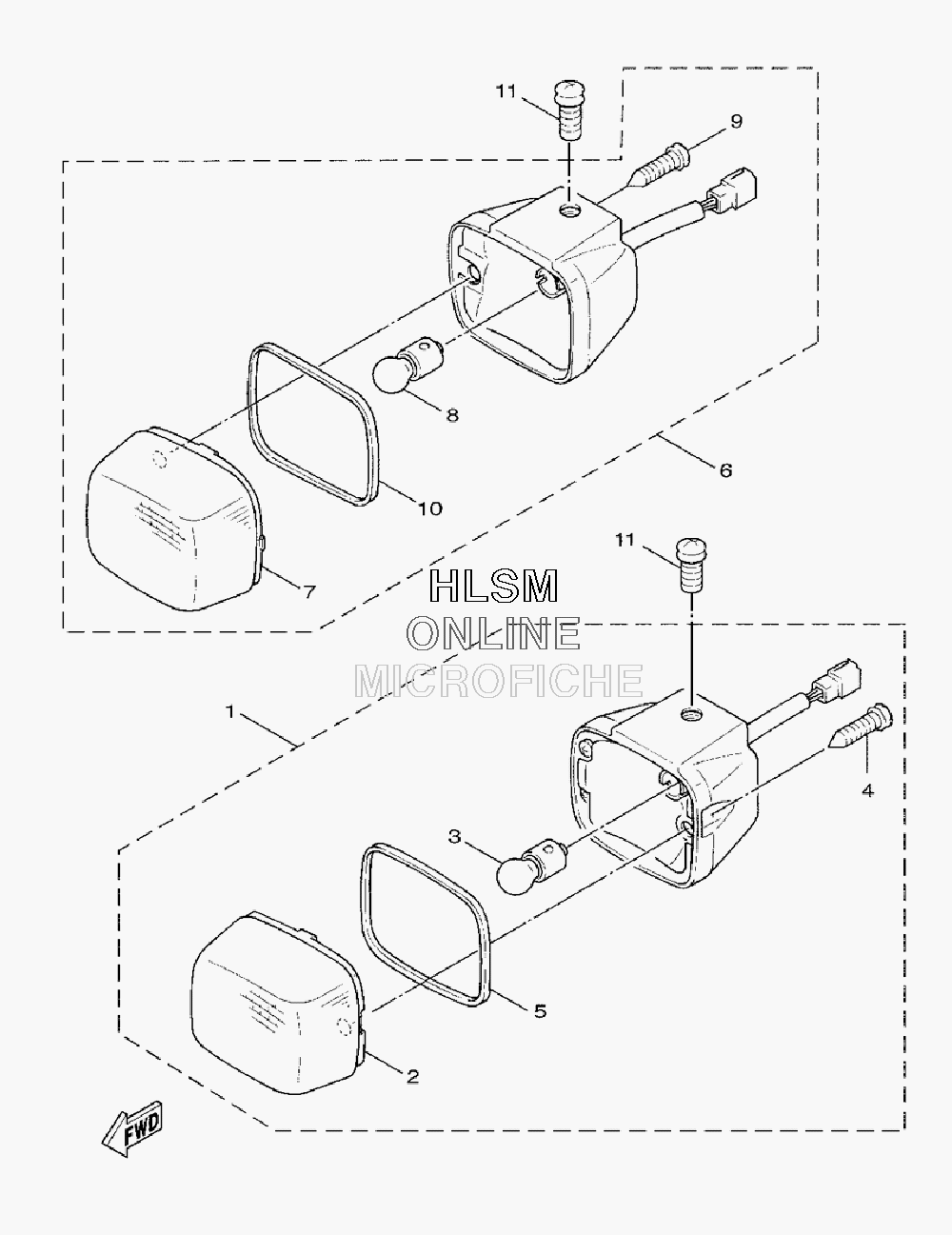

FLASHER LIGHT для Yamaha ZUMA - 2009 года выпуска
-
№АртикулНазвание
-
15PJ-H3310-00-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
25PJ-H3312-00-00 LENS, FLASHERLENS, FLASHER
-
34VP-H3311-00-00 BULB, FLASHERBULB, FLASHER
-
497780-40614-00 SCREW, TAPPINGSCREW, TAPPING
-
55PJ-H3313-00-00 GASKET, FLASHER LENSGASKET, FLASHER LENS
-
65PJ-H3320-00-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
75PJ-H3312-00-00 LENS, FLASHERLENS, FLASHER
-
84VP-H3311-00-00 BULB, FLASHERBULB, FLASHER
-
997780-40614-00 SCREW, TAPPINGSCREW, TAPPING
-
105PJ-H3313-00-00 GASKET, FLASHER LENSGASKET, FLASHER LENS
-
1198507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
