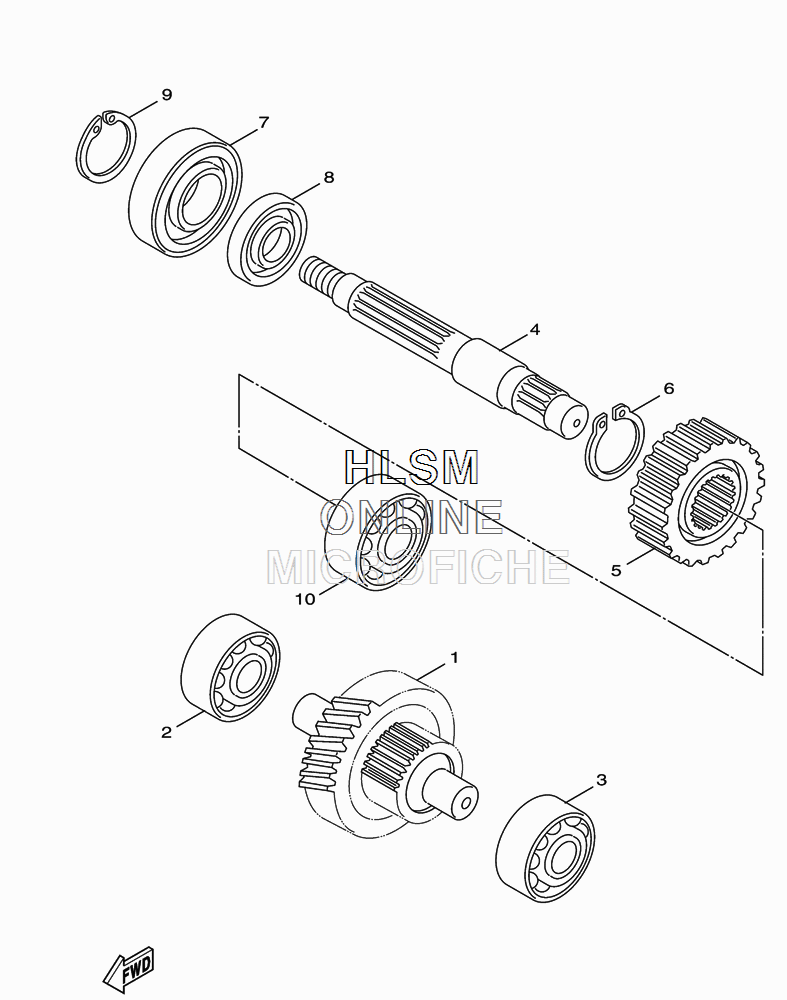

TRANSMISSION для Yamaha C3 - 2010 года выпуска
-
№АртикулНазвание
-
13B3-E7410-00-00 MAIN AXLE COMP.MAIN AXLE COMP.
-
293306-301Y1-00 BEARINGBEARING
-
393306-301Y1-00 BEARINGBEARING
-
44VP-E7421-01-00 AXLE, DRIVEAXLE, DRIVE
-
53B3-E7211-00-00 GEAR, 1ST WHEELGEAR, 1ST WHEEL
-
693410-20823-00 CIRCLIPCIRCLIP
-
793306-004X7-00 BEARINGBEARING
-
893102-25804-00 OIL SEALOIL SEAL
-
999009-42500-00 CIRCLIPCIRCLIP
-
1093306-203YA-00 BEARINGBEARING
