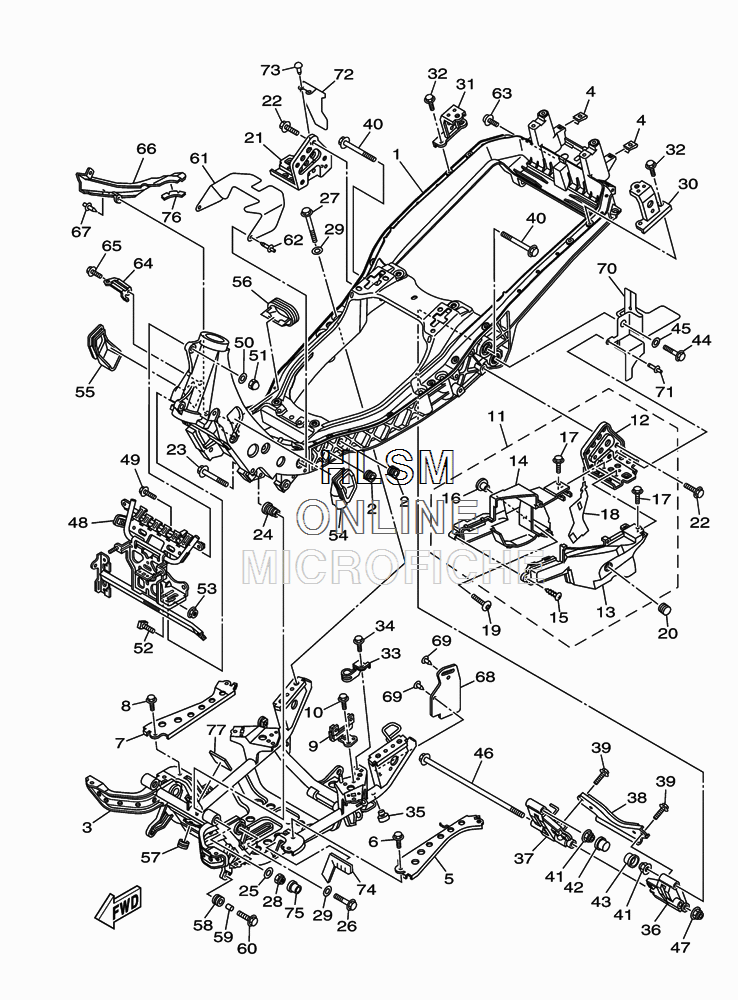

FRAME для Yamaha MAJESTY - 2010 года выпуска
-
№АртикулНазвание
-
15RU-21110-22-00 FRAME COMP.FRAME COMP.
-
290480-16004-00 GROMMETGROMMET
-
35RU-2111B-20-00 FRAME SUB COMP.FRAME SUB COMP.
-
490183-050A6-00 NUT, SPRINGNUT, SPRING
-
55RU-22144-30-00 BRACKET, FOOTREST 1BRACKET, FOOTREST 1
-
695802-06010-00 BOLT, FLANGEBOLT, FLANGE
-
75RU-22145-10-00 BRACKET, FOOTREST 2BRACKET, FOOTREST 2
-
895802-06010-00 BOLT, FLANGEBOLT, FLANGE
-
95RU-21359-10-00 BRACKET, COILBRACKET, COIL
-
1095812-08012-00 BOLT, FLANGEBOLT, FLANGE
-
115RU-27430-20-00 REAR FOOTREST ASSY 1REAR FOOTREST ASSY 1
-
125RU-27452-10-00 BRACKET, FOOTREST 1BRACKET, FOOTREST 1
-
135RU-2117F-00-00 COVERCOVER
-
145RU-2117M-00-00 COVER 2COVER 2
-
1597702-40016-00 SCREW, TAPPINGSCREW, TAPPING
-
1690387-06159-00 COLLARCOLLAR
-
1790119-05016-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
185RU-22129-00-00 COVER, THRUST 2COVER, THRUST 2
-
1990111-05026-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
2090338-15004-00 PLUGPLUG
-
215RU-27462-10-00 BRACKET, FOOTREST 2BRACKET, FOOTREST 2
-
2295812-10025-00 BOLT, FLANGEBOLT, FLANGE
-
2390105-10202-00 BOLT, FLANGEBOLT, FLANGE
-
245RU-21495-10-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
2590201-10046-00 WASHER, PLATEWASHER, PLATE
-
2690105-10203-00 BOLT, FLANGEBOLT, FLANGE
-
2790105-10205-00 BOLT, FLANGEBOLT, FLANGE
-
2895602-10200-00 NUT, U FLANGENUT, U FLANGE
-
2990201-10043-00 WASHER, PLATEWASHER, PLATE
-
305RU-21341-10-00 BRACKET, SEAT 1BRACKET, SEAT 1
-
315RU-21342-10-00 BRACKET, SEAT 2BRACKET, SEAT 2
-
3295812-08025-00 BOLT, FLANGEBOLT, FLANGE
-
335RU-21374-10-00 HOLDER, FUEL PIPEHOLDER, FUEL PIPE
-
3495802-06010-00 BOLT, FLANGEBOLT, FLANGE
-
355RU-27114-10-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
365RU-2140X-10-00 ENGINE BRACKET SUB-COMP. 1ENGINE BRACKET SUB-COMP. 1
-
375RU-2140Y-10-00 ENGINE BRACKET SUB-COMP. 2ENGINE BRACKET SUB-COMP. 2
-
385RU-21411-00-00 BRACKET, ENGINE 1BRACKET, ENGINE 1
-
3990105-10204-00 BOLT, FLANGEBOLT, FLANGE
-
4090105-12046-00 BOLT, FLANGEBOLT, FLANGE
-
4195602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
425RU-13569-00-00 PLUG, BLINDPLUG, BLIND
-
435RU-13569-00-00 PLUG, BLINDPLUG, BLIND
-
4490105-10196-00 BOLT, FLANGEBOLT, FLANGE
-
4590201-10043-00 WASHER, PLATEWASHER, PLATE
-
4690105-12047-00 BOLT, FLANGEBOLT, FLANGE
-
4795602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
485RU-28356-01-00 STAY 1STAY 1
-
4995802-10030-00 BOLT, FLANGEBOLT, FLANGE
-
5092902-10200-00 WASHERWASHER
-
5190176-10009-00 NUT, CROWNNUT, CROWN
-
5290108-10002-00 BOLT, SQUAREBOLT, SQUARE
-
5395702-10500-00 NUT, FLANGENUT, FLANGE
-
545RU-2117V-00-00 COVER 7COVER 7
-
555RU-2117W-00-00 COVER 8COVER 8
-
565RU-2117X-00-00 COVER 9COVER 9
-
5790480-18276-00 GROMMETGROMMET
-
5890480-16301-00 GROMMETGROMMET
-
5990387-0714B-00 COLLARCOLLAR
-
6090119-06159-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
615RU-2117Y-01-00 COVER 10COVER 10
-
6290269-07008-00 RIVETRIVET
-
6390110-06037-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
645RU-12443-10-00 STAYSTAY
-
6595802-06014-00 BOLT, FLANGEBOLT, FLANGE
-
665RU-2135F-01-00 COVERCOVER
-
6790269-07008-00 RIVETRIVET
-
685RU-2139W-00-00 COVERCOVER
-
6990269-05039-00 RIVETRIVET
-
705RU-2131D-00-00 PLATE, COVERPLATE, COVER
-
7190269-05039-00 RIVETRIVET
-
725RU-2132H-00-00 PLATE, COVERPLATE, COVER
-
7390269-05039-00 RIVETRIVET
-
745RU-2139U-01-00 DAMPER 2DAMPER 2
-
7590480-13295-00 GROMMETGROMMET
-
765RU-21541-00-00 DAMPER 1DAMPER 1
-
774XY-21649-00-00 DAMPERDAMPER
