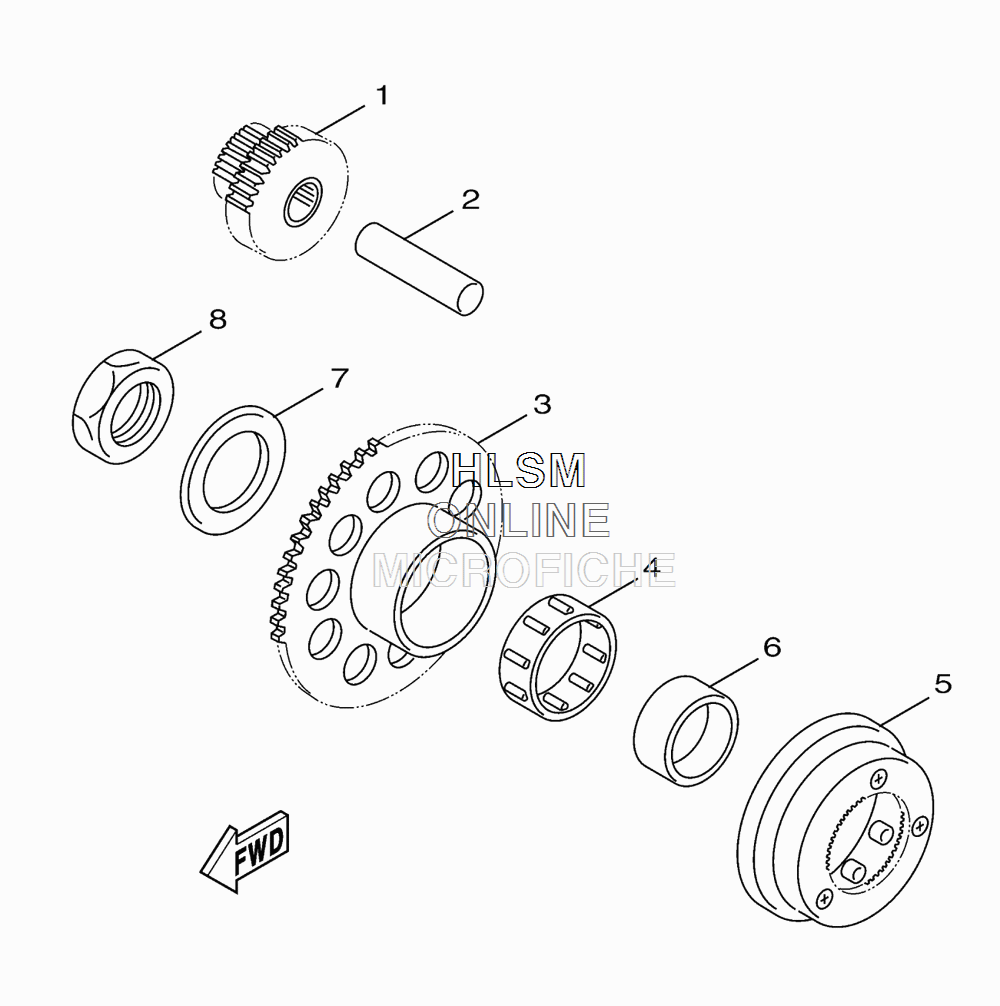

STARTER CLUTCH ASSY. для Yamaha ZUMA 50 - 2013 года выпуска
-
№АртикулНазвание
-
15ST-E5512-21-00 GEAR, IDLER 1GEAR, IDLER 1
-
25CA-E5521-00-00 SHAFT 1SHAFT 1
-
35ST-E5524-22-00 WHEEL, STARTERWHEEL, STARTER
-
493310-23047-00 BEARINGBEARING
-
55ST-E5570-10-00 STARTER CLUTCH ASSYSTARTER CLUTCH ASSY
-
65ST-E571H-00-00 COLLAR, STARTERCOLLAR, STARTER
-
75ST-E5613-00-00 WASHERWASHER
-
890170-22800-00 NUTNUT
