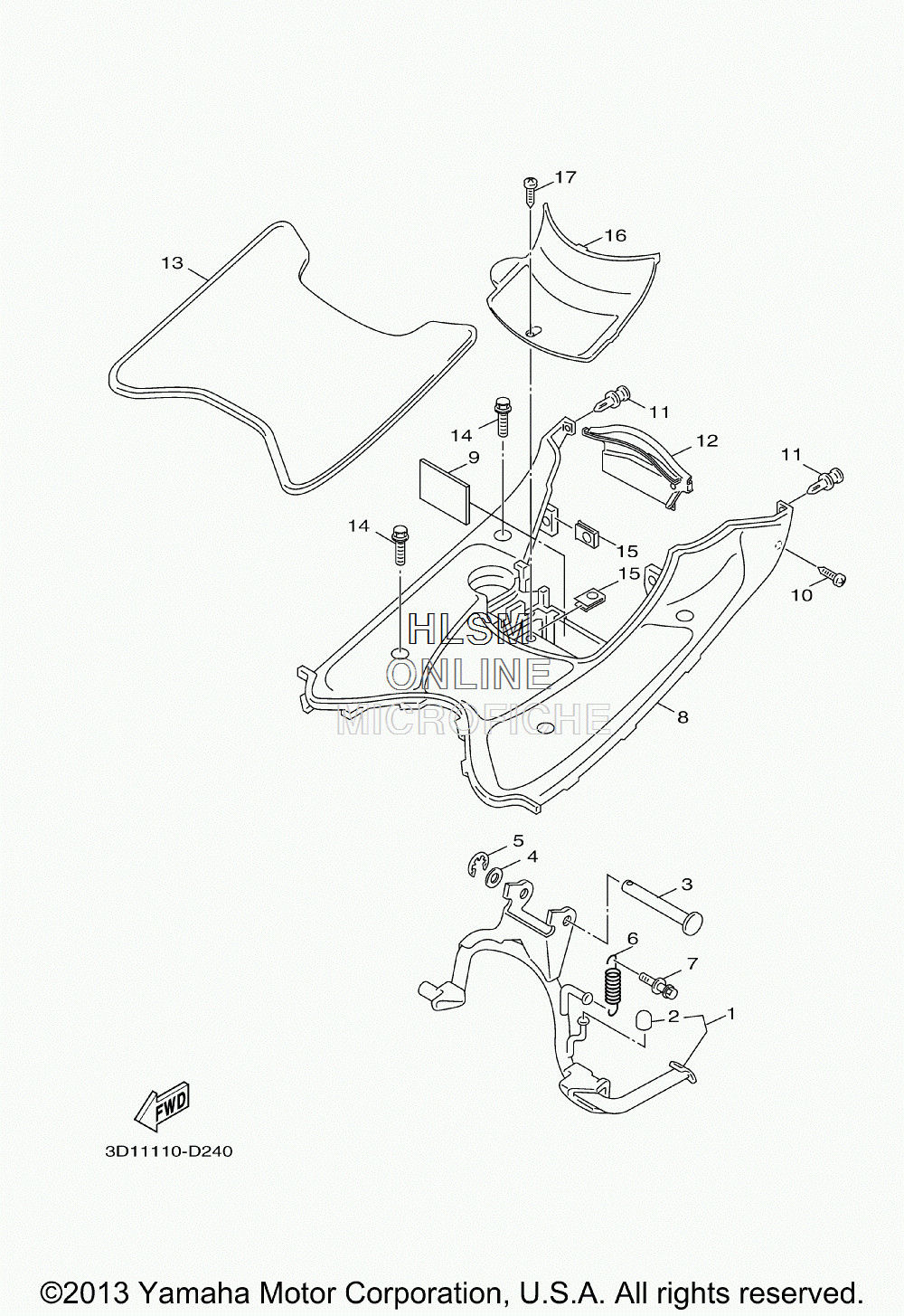

STAND W/ FOOTREST для Yamaha VINO CLASSIC - 2014 года выпуска
-
№АртикулНазвание
-
15ST-XF711-01-00 STAND, MAINSTAND, MAIN
-
25CA-F7114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
390249-10800-00 PINPIN
-
490201-10119-00 WASHER, PLATEWASHER, PLATE
-
599001-08600-00 CIRCLIPCIRCLIP
-
690506-32803-00 SPRING, TENSIONSPRING, TENSION
-
75SU-F7254-01-00 HOOKHOOK
-
85ST-F7481-44-00 BOARD, FOOTRESTBOARD, FOOTREST
-
93D1-H2176-00-00 DAMPERDAMPER
-
1097707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
1190269-06802-00 RIVETRIVET
-
1213P-F7463-00-00 COVER 2COVER 2
-
135ST-F7483-40-00 MAT 1MAT 1
-
1490119-068A9-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1590183-05807-00 NUT, SPRINGNUT, SPRING
-
1613P-H2129-20-00 COVER, BATTERYCOVER, BATTERY
-
1790169-05001-00 TAPPING SCREWTAPPING SCREW
