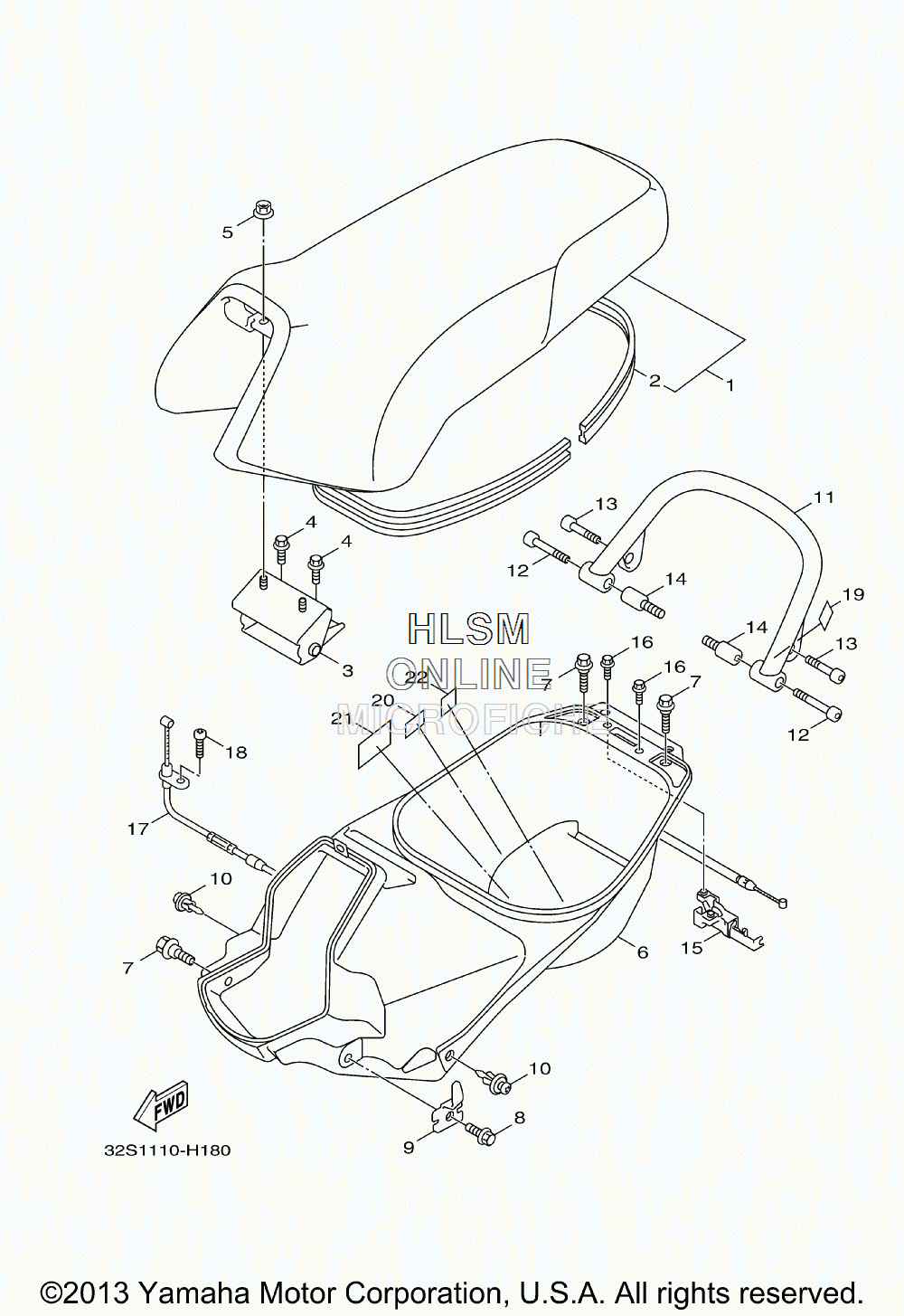

SEAT ASSY. для Yamaha ZUMA 125 - 2014 года выпуска
-
№АртикулНазвание
-
132S-F4730-10-00 DOUBLE SEAT ASSYDOUBLE SEAT ASSY
-
25S9-F475M-00-00 ...SEAL...SEAL
-
332S-F4772-00-00 HINGE ASSYHINGE ASSY
-
495807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
595707-06500-00 NUT, FLANGENUT, FLANGE
-
65S9-F473R-00-00 BOX 1BOX 1
-
790109-063F1-00 BOLTBOLT
-
895807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
95S9-F1398-00-00 HANGER, HELMETHANGER, HELMET
-
1090269-06806-00 RIVETRIVET
-
115S9-F4812-01-7M HANDLE (MDS)HANDLE (MDS)
-
1290119-08848-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1390119-08847-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
145S9-F4735-00-00 SPEED NUTSPEED NUT
-
155ML-F4780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
1695807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
175S9-F478E-01-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
1898507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
195PJ-F4875-00-00 LABEL 1LABEL 1
-
205PJ-F4877-01-00 LABEL, CAUTIONLABEL, CAUTION
-
2132S-F176P-50-00 PLATE, EPA (CALIFORNIA)PLATE, EPA (CALIFORNIA)
-
2232S-F1686-00-00 PLATE, ROUTING 2PLATE, ROUTING 2
