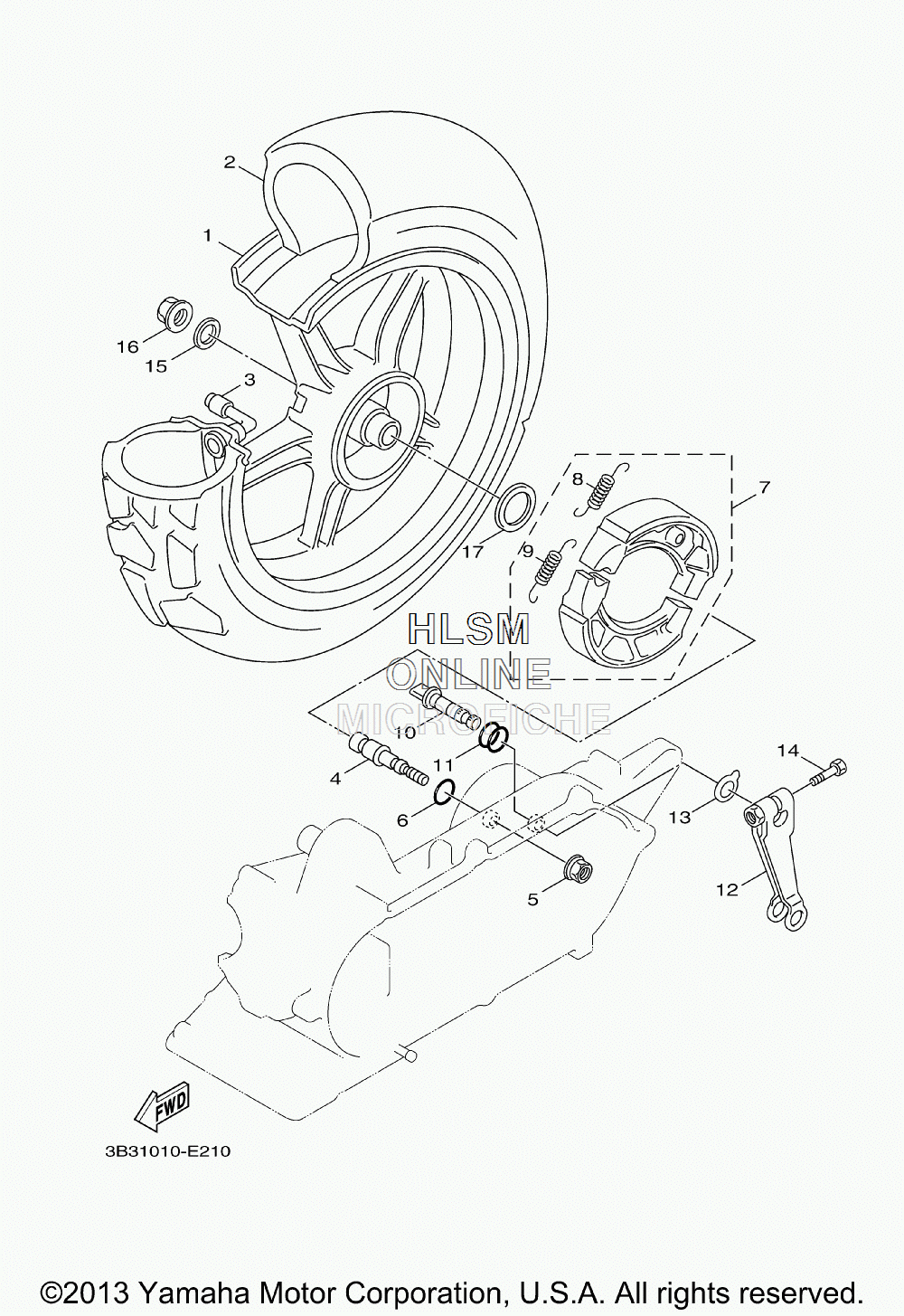

WHEEL - REAR для Yamaha ZUMA 50F - 2014 года выпуска
-
№АртикулНазвание
-
13B3-F5338-01-33 CAST WHEEL, REAR (YAMAHA BLACK)CAST WHEEL, REAR (YAMAHA BLACK)
-
294112-10800-00 TIRE (120/90-10 C6022-5 CH)TIRE (120/90-10 C6022-5 CH)
-
393900-00802-00 VALVE, RIMVALVE, RIM
-
45ST-F5326-10-00 PIN, PIVOTPIN, PIVOT
-
595707-08500-00 NUT, FLANGENUT, FLANGE
-
693210-07803-00 O-RINGO-RING
-
73B3-WF514-10-00 BRAKE SHOE KIT 1BRAKE SHOE KIT 1
-
890506-12001-00 ...SPRING, TENSION...SPRING, TENSION
-
990506-15001-00 ...SPRING, TENSION...SPRING, TENSION
-
103B3-F5351-00-00 CAMSHAFTCAMSHAFT
-
1193210-10801-00 O-RINGO-RING
-
124VP-F5355-00-00 LEVER, CAMSHAFTLEVER, CAMSHAFT
-
135SU-F533A-01-00 PLATE, INDICATORPLATE, INDICATOR
-
1490101-06878-00 BOLTBOLT
-
1590201-16811-00 WASHER, PLATEWASHER, PLATE
-
1690185-16800-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1790201-203E7-00 WASHER, PLATEWASHER, PLATE
