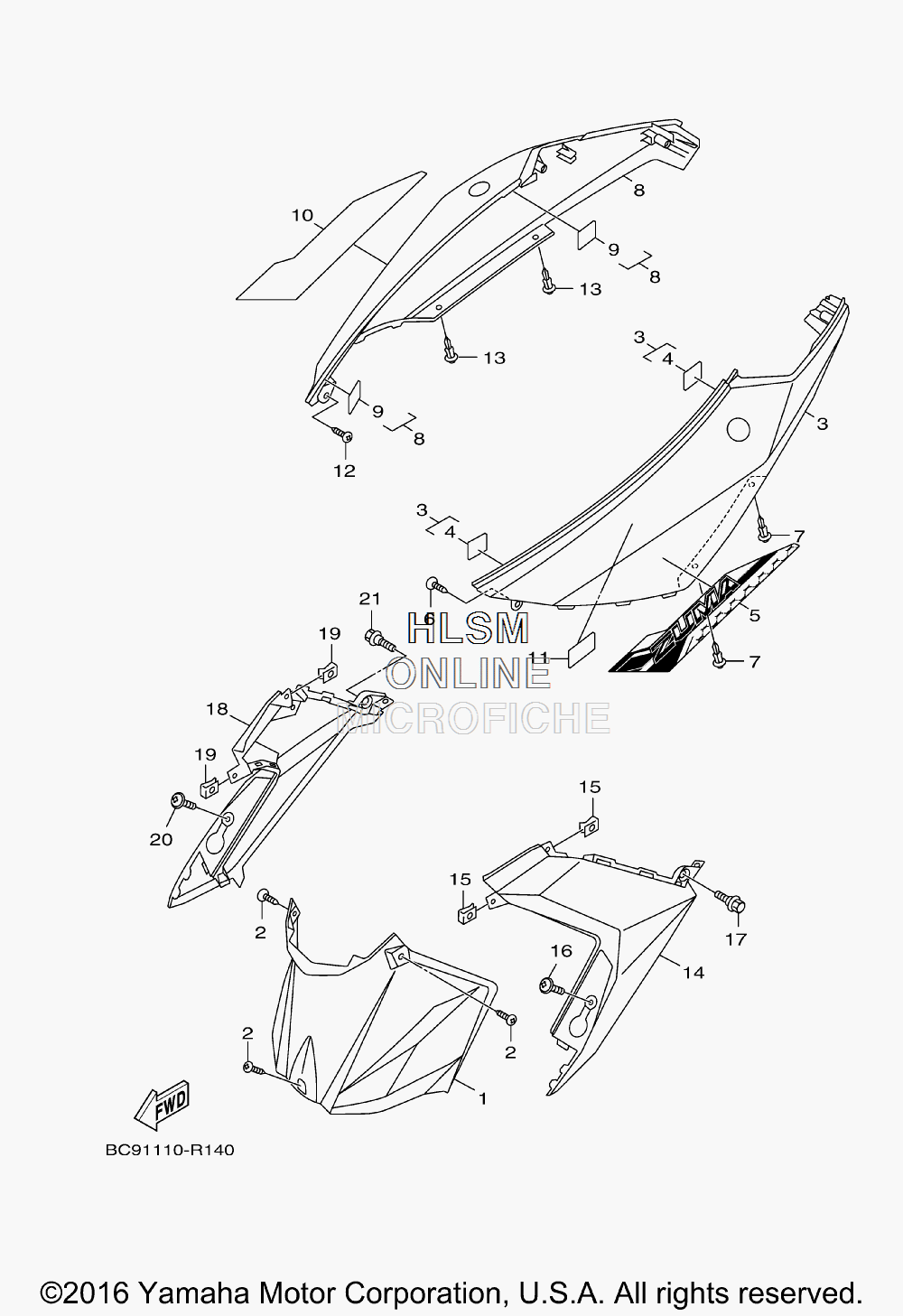

SIDE COVER для Yamaha ZUMA 125 (WHITE) [YW125GW] - 2016 года выпуска
-
№АртикулНазвание
-
12JS-F1711-00-00 COVER, SIDE 1COVER, SIDE 1
-
297707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
32JS-XF172-00-UJ COVER, SIDE 2 (OPT) (RW)COVER, SIDE 2 (OPT) (RW)
-
32JS-XF172-00-P9 COVER, SIDE 2 (OPT) (DPBM14)COVER, SIDE 2 (OPT) (DPBM14)
-
490520-01801-00 ...DAMPER, PLATE...DAMPER, PLATE
-
5BC9-F1781-10-00 EMBLEM 1 (OPT) (DPBM14)EMBLEM 1 (OPT) (DPBM14)
-
5BC9-F1781-00-00 EMBLEM 1 (OPT) (RW)EMBLEM 1 (OPT) (RW)
-
697707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
790269-06803-00 RIVETRIVET
-
82JS-XF173-00-P9 COVER, SIDE 3 (OPT) (DPBM14)COVER, SIDE 3 (OPT) (DPBM14)
-
82JS-XF173-00-UJ COVER, SIDE 3 (OPT) (RW)COVER, SIDE 3 (OPT) (RW)
-
990520-01801-00 ...DAMPER, PLATE...DAMPER, PLATE
-
10BC9-F1782-00-00 EMBLEM 2 (OPT) (RW)EMBLEM 2 (OPT) (RW)
-
10BC9-F1782-10-00 EMBLEM 2 (OPT) (DPBM14)EMBLEM 2 (OPT) (DPBM14)
-
115PJ-F118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
1297707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
1390269-06803-00 RIVETRIVET
-
142JS-F7413-10-00 COVER, FOOTRESTCOVER, FOOTREST
-
1590183-05816-00 NUT, SPRINGNUT, SPRING
-
1690159-06813-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
1790109-06172-00 BOLTBOLT
-
182JS-F7423-10-00 COVER, FOOTRESTCOVER, FOOTREST
-
1990183-05816-00 NUT, SPRINGNUT, SPRING
-
2090159-06813-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
2190109-06172-00 BOLTBOLT
