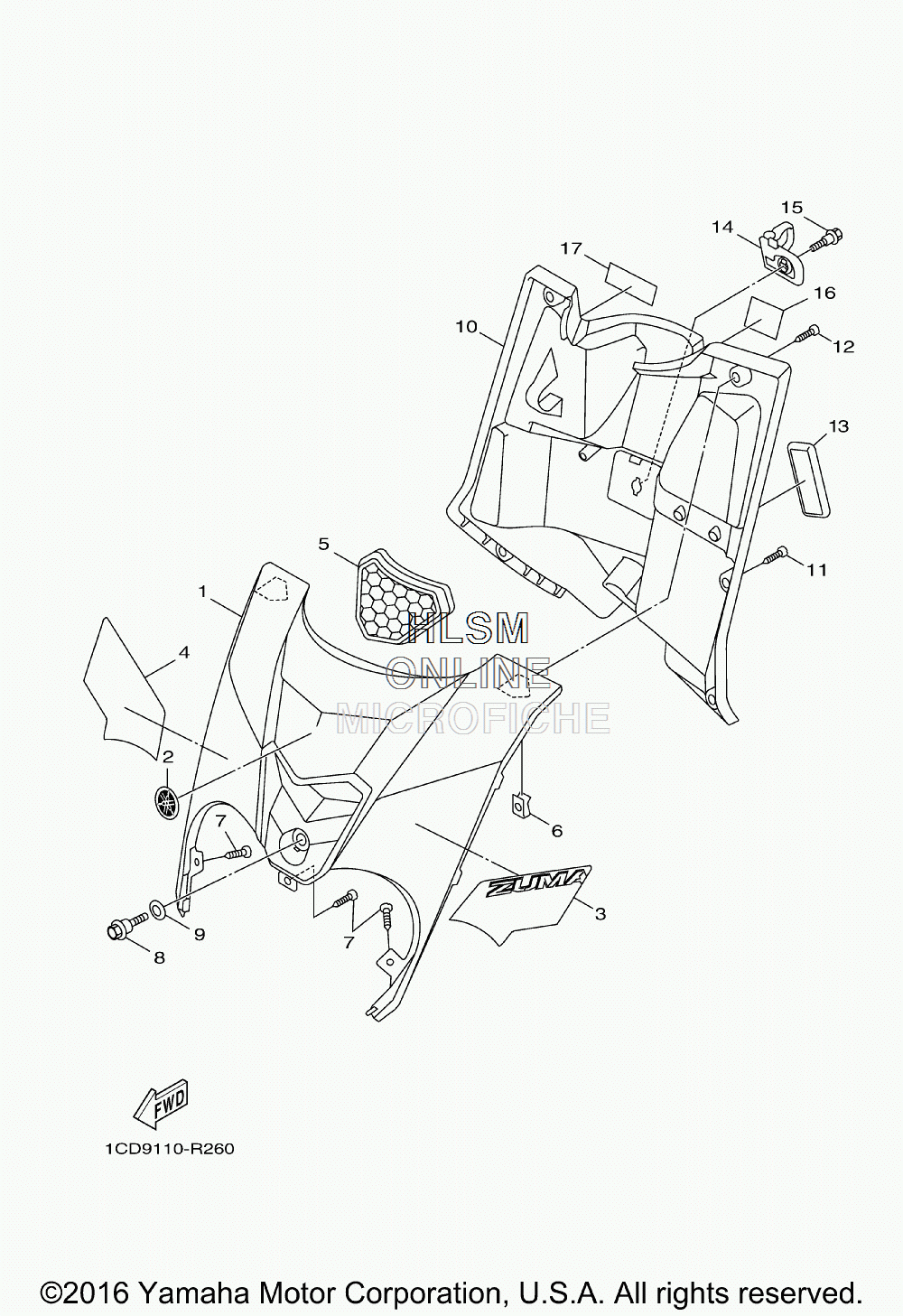

COWLING W/ LEG SHIELD для Yamaha ZUMA 50F (WHITE) [YW50FGT] - 2016 года выпуска
-
№АртикулНазвание
-
11CD-F8311-00-P0 LEG SHIELD 1 (OPT) (SMX)LEG SHIELD 1 (OPT) (SMX)
-
11CD-F8311-00-P8 LEG SHIELD 1 (OPT) (LYNS4)LEG SHIELD 1 (OPT) (LYNS4)
-
25TY-F1569-00-00 GRAPHIC 1GRAPHIC 1
-
31CD-F832K-00-00 GRAPHIC, 12 (OPT) (SMX)GRAPHIC, 12 (OPT) (SMX)
-
31CD-F832K-10-00 GRAPHIC, 12 (OPT) (LYNS4)GRAPHIC, 12 (OPT) (LYNS4)
-
41CD-F832L-10-00 GRAPHIC, 13 (OPT) (LYNS4)GRAPHIC, 13 (OPT) (LYNS4)
-
41CD-F832L-00-00 GRAPHIC, 13 (OPT) (SMX)GRAPHIC, 13 (OPT) (SMX)
-
51CD-F834V-00-00 PROTECTOR 1PROTECTOR 1
-
690183-05816-00 NUT, SPRINGNUT, SPRING
-
797707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
890119-06887-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
990387-068C3-00 COLLARCOLLAR
-
101CD-F8300-00-00 LEG SHIELD ASSYLEG SHIELD ASSY
-
1197707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
1297707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
135FM-F8349-00-00 CAPCAP
-
141CF-F8379-00-00 HOOKHOOK
-
1590109-06872-00 BOLTBOLT
-
161CD-F4877-00-00 LABEL, CAUTIONLABEL, CAUTION
-
171CD-F118K-00-00 LABEL, CAUTIONLABEL, CAUTION
