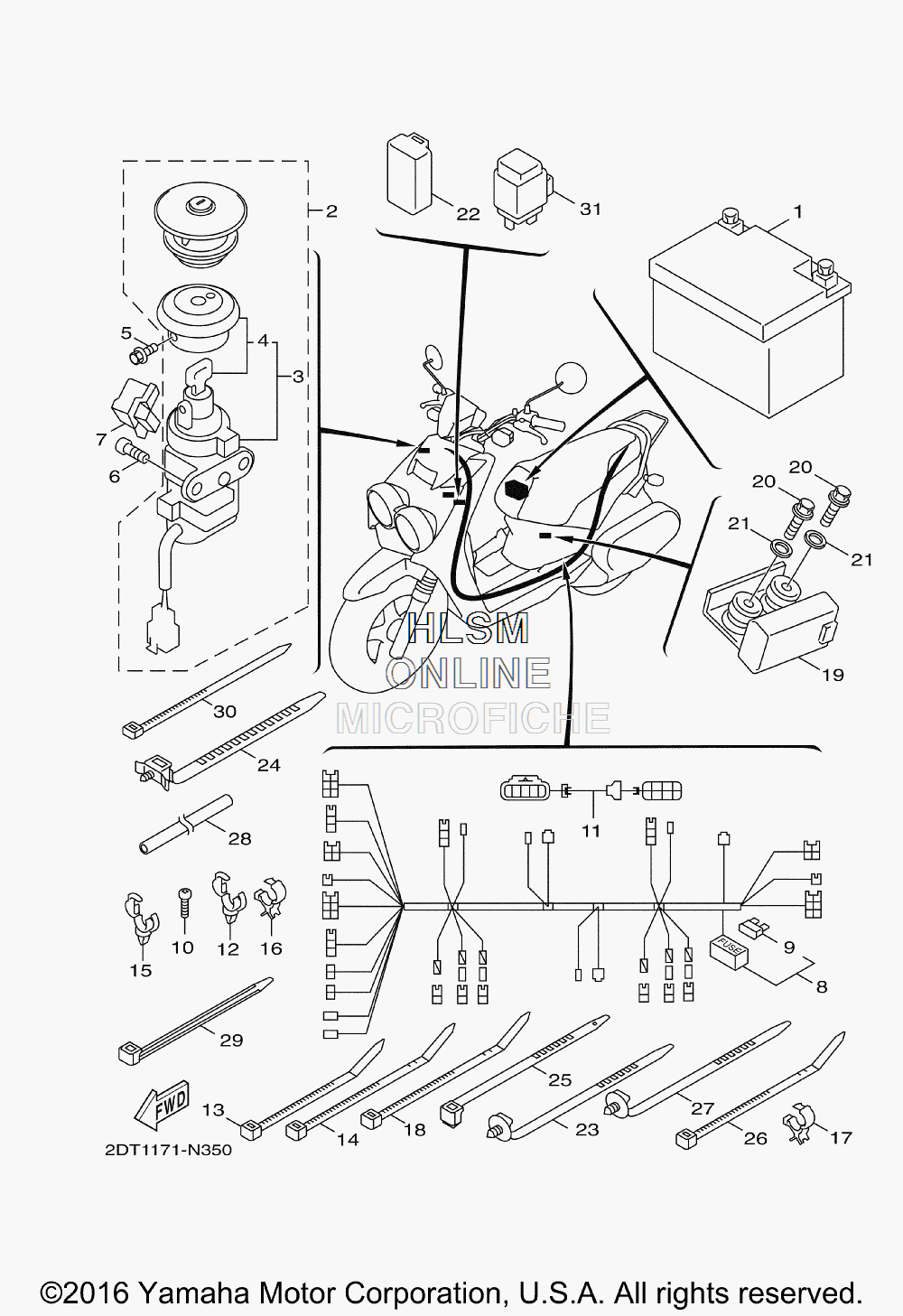

ELECTRICAL 2 для Yamaha ZUMA 50FX (SILVER) [YW50FXGS] - 2016 года выпуска
-
№АртикулНазвание
-
15PJ-H2100-00-00 BATTERY ASSY (GTX5L-BS)BATTERY ASSY (GTX5L-BS)
-
21CD-WH203-02-00 KEY SETKEY SET
-
31CD-H2501-01-00 ...MAIN SWITCH STEERING LOCK...MAIN SWITCH STEERING LOCK
-
41CD-WH250-01-A0 ......MAIN SWITCH IMMOBILIZER KIT......MAIN SWITCH IMMOBILIZER KIT
-
51CD-WH250-01-C0 ............MAIN SWITCH IMMOBILIZER............MAIN SWITCH IMMOBILIZER
-
690119-05004-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
790155-06803-00 SCREW, FLAT FILLISTERSCREW, FLAT FILLISTER
-
83D0-H2155-00-00 BANDBAND
-
92DT-H2590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
105ML-H2151-10-00 ...FUSE (15A)...FUSE (15A)
-
1195807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
123B3-H2509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
1390464-20803-00 CLAMPCLAMP
-
1490464-26800-00 CLAMPCLAMP
-
1590464-40801-00 CLAMPCLAMP
-
1690464-20803-00 CLAMPCLAMP
-
1790464-25801-00 CLAMPCLAMP
-
1890464-30801-00 CLAMPCLAMP
-
1990464-40801-00 CLAMPCLAMP
-
2032P-H2576-00-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
2190110-04802-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2290201-047A2-00 WASHER, PLATEWASHER, PLATE
-
2329U-81950-93-00 RELAY ASSY (ACA12115-1)RELAY ASSY (ACA12115-1)
-
2490464-30802-00 CLAMPCLAMP
-
2590464-45803-00 CLAMPCLAMP
-
2690464-12812-00 CLAMPCLAMP
-
2790464-40801-00 CLAMPCLAMP
-
2890464-30802-00 CLAMPCLAMP
-
291CD-F117G-10-00 PROTECTORPROTECTOR
-
3090465-13152-00 CLAMPCLAMP
-
3190464-60800-00 CLAMPCLAMP
-
323B3-83350-00-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
