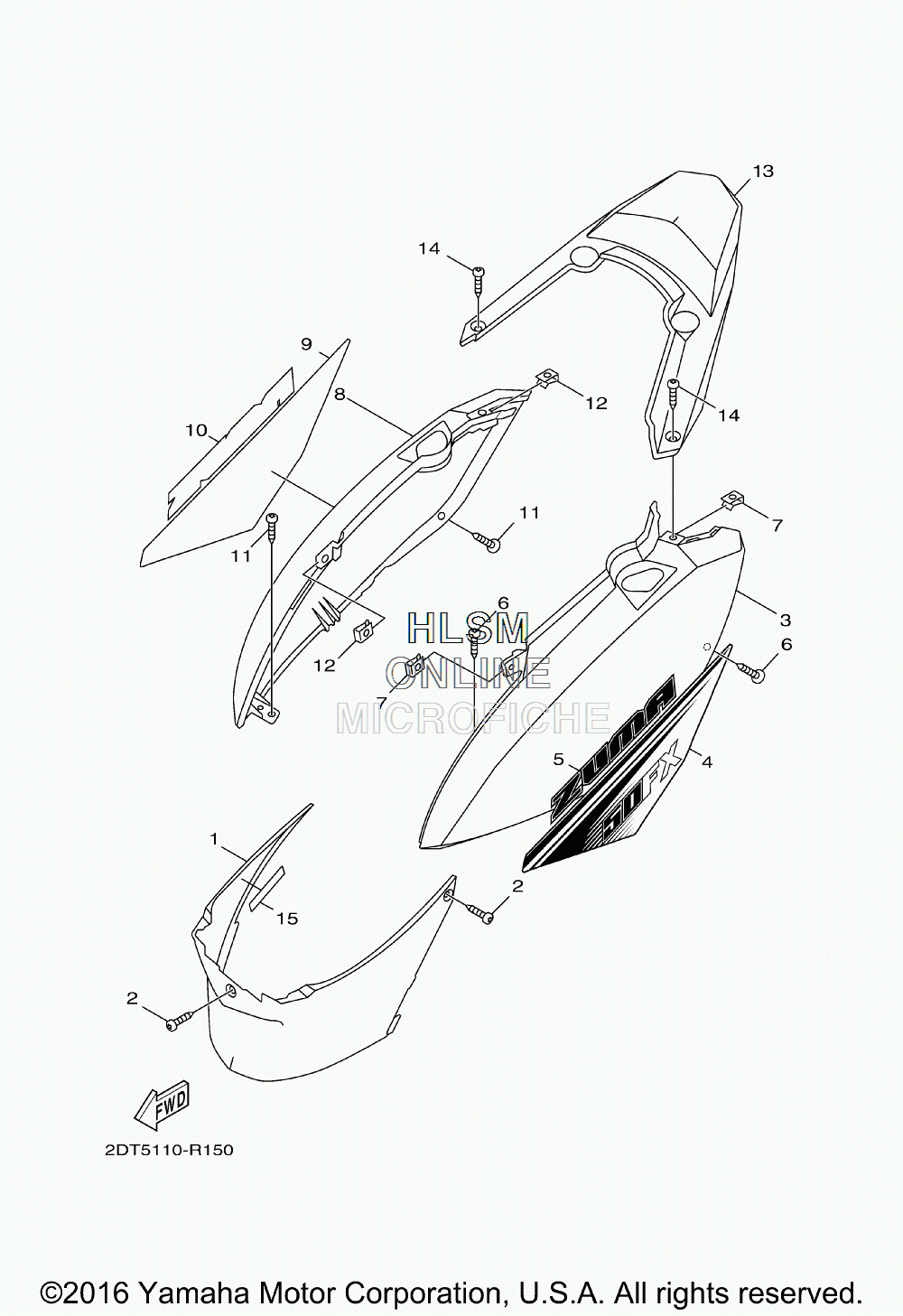

SIDE COVER для Yamaha ZUMA 50FX (WHITE) [YW50FXGW] - 2016 года выпуска

№

Артикул

Название
1

1CD-F1711-00-00 COVER, SIDE 1

COVER, SIDE 1

0 ₽
2

97707-50012-00 SCREW, TRUSS HEAD TAPPING

SCREW, TRUSS HEAD TAPPING

160 ₽
3

1CD-F1721-00-UJ COVER, SIDE 2 (OPT) (RW)

COVER, SIDE 2 (OPT) (RW)

0 ₽
3

1CD-F1721-00-WL COVER, SIDE 2 (STDS) (OPT)

COVER, SIDE 2 (STDS) (OPT)

0 ₽
4

2DT-F1787-00-00 EMBLEM 7 (OPT) (RW)

EMBLEM 7 (OPT) (RW)

0 ₽
4

2DT-F1787-10-00 EMBLEM 7 (STDS) (OPT)

EMBLEM 7 (STDS) (OPT)

0 ₽
5

2DT-F1789-00-00 GRAPHIC (OPT) (RW)

GRAPHIC (OPT) (RW)

0 ₽
5

2DT-F1789-10-00 GRAPHIC (STDS) (OPT)

GRAPHIC (STDS) (OPT)

0 ₽
6

97707-50012-00 SCREW, TRUSS HEAD TAPPING

SCREW, TRUSS HEAD TAPPING

160 ₽
7

90183-05816-00 NUT, SPRING

NUT, SPRING

150 ₽
8

1CD-F1731-00-UJ COVER, SIDE 3 (OPT) (RW)

COVER, SIDE 3 (OPT) (RW)

0 ₽
8

1CD-F1731-00-WL COVER, SIDE 3 (STDS) (OPT)

COVER, SIDE 3 (STDS) (OPT)

0 ₽
9

2DT-F1788-00-00 GRAPHIC (OPT) (RW)

GRAPHIC (OPT) (RW)

0 ₽
9

2DT-F1788-10-00 GRAPHIC (STDS) (OPT)

GRAPHIC (STDS) (OPT)

0 ₽
10

2DT-F1789-10-00 GRAPHIC (STDS) (OPT)

GRAPHIC (STDS) (OPT)

0 ₽
10

2DT-F1789-00-00 GRAPHIC (OPT) (RW)

GRAPHIC (OPT) (RW)

0 ₽
11

97707-50012-00 SCREW, TRUSS HEAD TAPPING

SCREW, TRUSS HEAD TAPPING

160 ₽
12

90183-05816-00 NUT, SPRING

NUT, SPRING

150 ₽
13

1CD-F1741-00-WL COVER, SIDE 4 (STDS) (OPT)

COVER, SIDE 4 (STDS) (OPT)

0 ₽
13

1CD-F1741-00-UJ COVER, SIDE 4 (OPT) (RW)

COVER, SIDE 4 (OPT) (RW)

0 ₽
14

97707-50012-00 SCREW, TRUSS HEAD TAPPING

SCREW, TRUSS HEAD TAPPING

160 ₽
15

5ML-E5337-00-00 DAMPER 4

DAMPER 4

0 ₽
