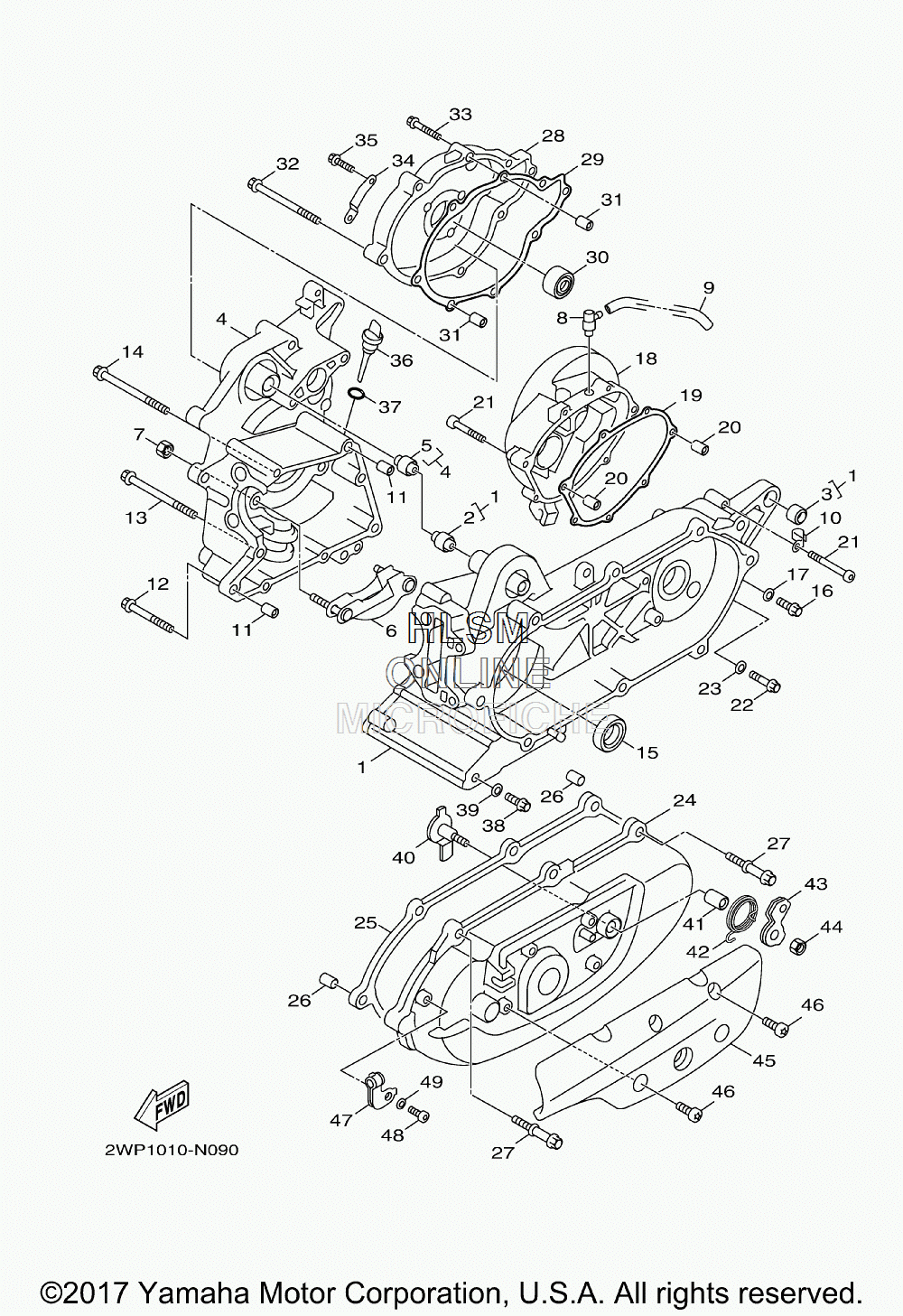

CRANKCASE ASSY. для Yamaha VINO CLASSIC - 2017 года выпуска
-
№АртикулНазвание
-
15ST-WE511-10-00 CRANKCASE 1CRANKCASE 1
-
25ST-F2123-00-00 ...BUSH 1...BUSH 1
-
34X6-F2216-00-00 ...BUSH, REAR SHOCK ABSORBER...BUSH, REAR SHOCK ABSORBER
-
45ST-WE512-10-00 CRANKCASE 2CRANKCASE 2
-
55ST-F2123-00-00 ...BUSH 1...BUSH 1
-
65ST-E5142-10-00 GUIDE 1GUIDE 1
-
795607-06100-00 NUT, UNUT, U
-
85ST-E5371-00-00 BREATHERBREATHER
-
991A10-07016-00 TUBE, FLEXIBLETUBE, FLEXIBLE
-
1090462-08800-00 CLAMPCLAMP
-
1191810-14807-00 PIN, DOWELPIN, DOWEL
-
1290105-06808-00 BOLT, FLANGEBOLT, FLANGE
-
1390105-06810-00 BOLT, FLANGEBOLT, FLANGE
-
1495027-06100-00 BOLT, FLANGEBOLT, FLANGE
-
1593102-19804-00 OIL SEALOIL SEAL
-
1695817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
1790430-08119-00 GASKETGASKET
-
185ST-E5421-10-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
195ST-E5461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
2091810-14807-00 PIN, DOWELPIN, DOWEL
-
2195027-06035-00 BOLT, FLANGEBOLT, FLANGE
-
2295817-06035-00 BOLT, FLANGEBOLT, FLANGE
-
2390430-06014-00 GASKETGASKET
-
241TS-E5411-01-33 COVER, CRANKCASE 1 (YB - YAMAHA BLACK)COVER, CRANKCASE 1 (YB - YAMAHA BLACK)
-
255ST-E5451-10-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
2691810-14807-00 PIN, DOWELPIN, DOWEL
-
2795027-06025-00 BOLT, FLANGEBOLT, FLANGE
-
285ST-E5417-10-00 COVER, CAPCOVER, CAP
-
295ST-E5453-10-00 GASKETGASKET
-
3093102-17807-00 OIL SEALOIL SEAL
-
3191810-14807-00 PIN, DOWELPIN, DOWEL
-
3290105-06895-00 BOLT, FLANGEBOLT, FLANGE
-
3390105-06898-00 BOLT, FLANGEBOLT, FLANGE
-
343B3-E5113-00-00 PLATEPLATE
-
3590105-06896-00 BOLT, FLANGEBOLT, FLANGE
-
365ST-E5362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
375ML-E3769-00-00 O-RINGO-RING
-
3895817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
3990430-08119-00 GASKETGASKET
-
405SU-E5460-01-00 STOPPER LEVER ASSYSTOPPER LEVER ASSY
-
4190380-12800-00 BUSH, SOLIDBUSH, SOLID
-
4290508-162B3-00 SPRING, TORSIONSPRING, TORSION
-
435SU-E546C-00-00 HOLDERHOLDER
-
4490170-08261-00 NUTNUT
-
451TS-E5419-00-00 COVER, SHIFTER 1COVER, SHIFTER 1
-
465ST-E5481-00-00 BOLT 1BOLT 1
-
473P3-E546D-00-00 HOLDER, 2HOLDER, 2
-
4892012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4992902-06200-00 WASHERWASHER
