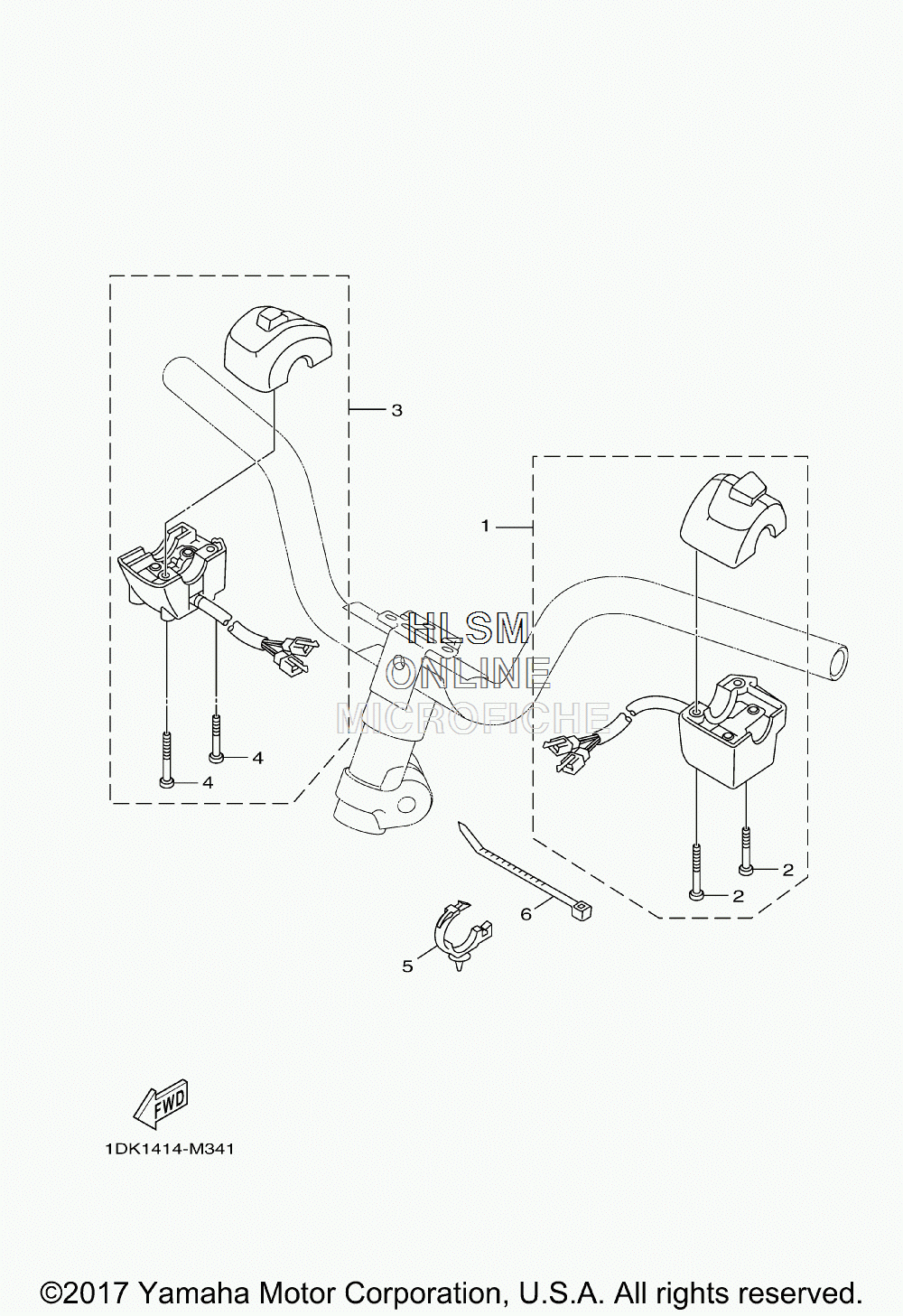

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha SMAX - 2018 года выпуска
-
№АртикулНазвание
-
11DK-H3973-03-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
298507-05045-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
32SW-H3975-01-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
498507-05040-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
590464-20010-00 CLAMPCLAMP
-
690464-26800-00 CLAMPCLAMP
