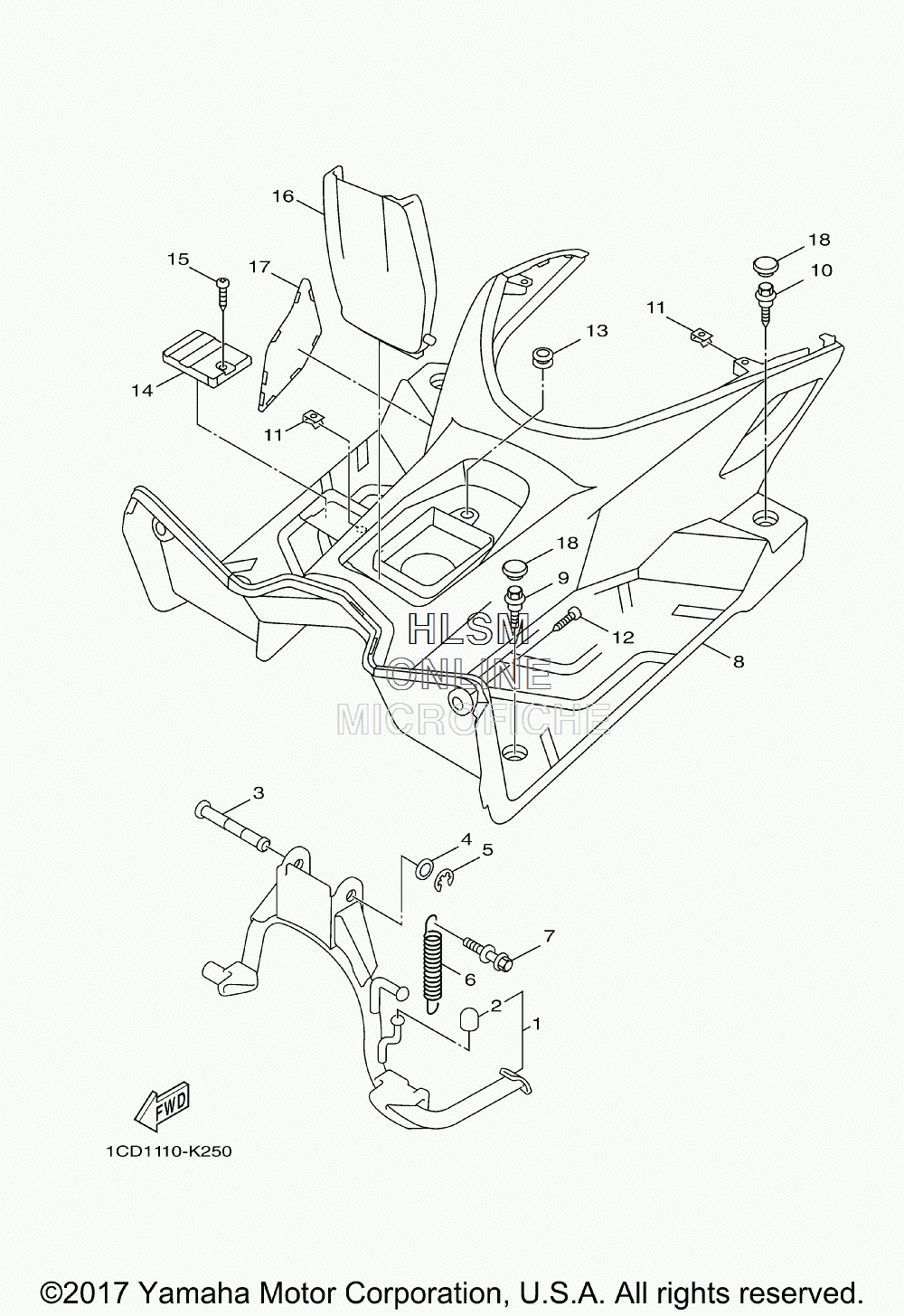

STAND W/ FOOTREST для Yamaha ZUMA 50F - 2018 года выпуска
-
№АртикулНазвание
-
11CD-XF711-00-00 STAND, MAINSTAND, MAIN
-
25CA-F7114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
390249-10801-00 PINPIN
-
490201-10119-00 WASHER, PLATEWASHER, PLATE
-
599001-08600-00 CIRCLIPCIRCLIP
-
690506-32803-00 SPRING, TENSIONSPRING, TENSION
-
75SU-F7254-01-00 HOOKHOOK
-
81CD-F7480-10-00 FOOTREST BOARD ASSYFOOTREST BOARD ASSY
-
990109-06043-00 BOLTBOLT
-
1090109-06872-00 BOLTBOLT
-
1190183-05816-00 NUT, SPRINGNUT, SPRING
-
1297707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
1390480-01884-00 GROMMETGROMMET
-
141CD-F7463-00-00 COVER 2COVER 2
-
1597707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
161CD-F7453-10-00 COVER 1COVER 1
-
171CD-F7475-10-00 CAP 1CAP 1
-
185HK-F7475-00-00 CAP 1CAP 1
