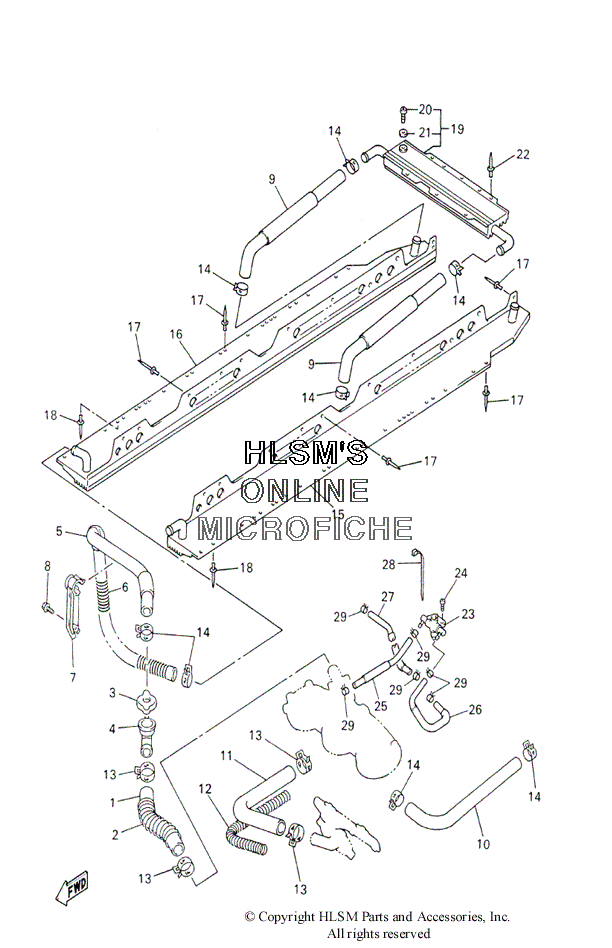

COOLING SYSTEM для Yamaha MOUNTAIN MAX 600 - 2000 года выпуска
-
№АртикулНазвание
-
18CH-12482-00-00 PIPE 2PIPE 2
-
290501-100K8-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
322W-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
48CR-12591-00-00 SUPT, FILLER NECKSUPT, FILLER NECK
-
58CH-12483-10-00 PIPE 3PIPE 3
-
690501-143L9-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
78CR-12491-00-00 CLAMP 1CLAMP 1
-
895807-06014-00 BOLT, FLANGEBOLT, FLANGE
-
98ED-12484-00-00 PIPE 4PIPE 4
-
108CR-12485-00-00 PIPE 5PIPE 5
-
118CH-12476-00-00 PIPE 6PIPE 6
-
1290501-120K7-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1390467-28046-00 CLIPCLIP
-
1490467-23067-00 CLIPCLIP
-
158ED-1240E-00-00 HEAT EXCHANGERHEAT EXCHANGER
-
168ED-1240F-00-00 HEAT EXCHANGERHEAT EXCHANGER
-
1790267-47186-00 RIVET, BLIND (MM700)RIVET, BLIND (MM700)
-
1790267-47195-00 RIVET, BLIND (MM600)RIVET, BLIND (MM600)
-
1890267-47186-00 RIVET, BLINDRIVET, BLIND
-
198ED-1241A-00-00 HEAT EXCHANGER ASSEMBLY 4HEAT EXCHANGER ASSEMBLY 4
-
2090210-06006-00 ...WASHER, SEAL...WASHER, SEAL
-
2198507-06008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2290267-47186-00 RIVET, BLIND (MM700)RIVET, BLIND (MM700)
-
2290267-47195-00 RIVET, BLIND (MM600)RIVET, BLIND (MM600)
-
238CH-1249A-01-00 COCK ASSEMBLYCOCK ASSEMBLY
-
2498907-06020-00 SCREW, BINDSCREW, BIND
-
258CH-1243A-01-00 HOSE 1HOSE 1
-
268CH-1243E-01-00 HOSE 2HOSE 2
-
278CH-1243F-01-00 HOSE, 3HOSE, 3
-
2890464-12045-00 CLAMPCLAMP
-
2990467-11028-00 CLIPCLIP
