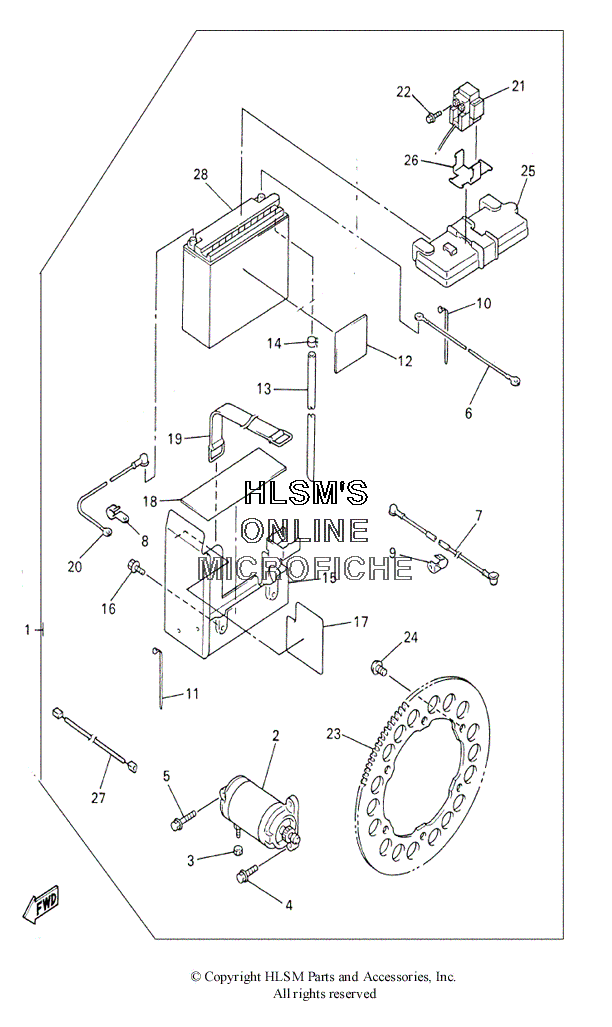

ALTERNATE (ELECTRICAL) для Yamaha SX600 - 2000 года выпуска
-
№АртикулНазвание
-
18DS-W8180-15-KT STARTING MOTOR SET (AP W/ BATTERY)STARTING MOTOR SET (AP W/ BATTERY)
-
28CW-81800-01-00 ...STARTING MOTOR ASSEMBLY...STARTING MOTOR ASSEMBLY
-
395307-06600-00 ...NUT...NUT
-
495027-08030-00 ...BOLT, FLANGE...BOLT, FLANGE
-
595027-08080-00 ...BOLT, FLANGE...BOLT, FLANGE
-
68DY-82116-00-00 ...WIRE, MINUS LEAD...WIRE, MINUS LEAD
-
78DY-82117-00-00 ...WIRE, LEAD...WIRE, LEAD
-
890462-08016-00 ...CLAMP...CLAMP
-
990465-10381-00 ...CLAMP...CLAMP
-
1090464-13073-00 ...CLAMP...CLAMP
-
1190464-15195-00 ...CLAMP...CLAMP
-
128CW-82176-00-00 ...DAMPER...DAMPER
-
138CW-8235W-01-00 ...PIPE...PIPE
-
1490467-08092-00 ...CLIP...CLIP
-
158DM-2199G-00-00 ...BRACKET, BATTERY...BRACKET, BATTERY
-
1690109-06513-00 ...BOLT...BOLT
-
178CW-2199H-00-00 ...SHIELD, HEAT...SHIELD, HEAT
-
188DM-82122-00-00 ...SEAT, BATTERY...SEAT, BATTERY
-
198DM-82131-10-00 ...BAND, BATTERY...BAND, BATTERY
-
208DY-82115-00-00 ...WIRE, PLUS LEAD...WIRE, PLUS LEAD
-
213EL-81940-00-00 ...STARTER RELAY ASSEMBLY...STARTER RELAY ASSEMBLY
-
2295027-06008-00 ...BOLT, FLANGE...BOLT, FLANGE
-
238DM-1760A-19-00 ...GEAR 1...GEAR 1
-
2490150-08008-00 ...SCREW, ROUND HEAD...SCREW, ROUND HEAD
-
258DM-82129-00-00 ...COVER, BATTERY...COVER, BATTERY
-
268CY-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
278DY-82509-00-00 ...WIRE, SUB LEAD...WIRE, SUB LEAD
-
2811K-82110-62-00 BATTERY ASSEMBLY (AP)BATTERY ASSEMBLY (AP)
