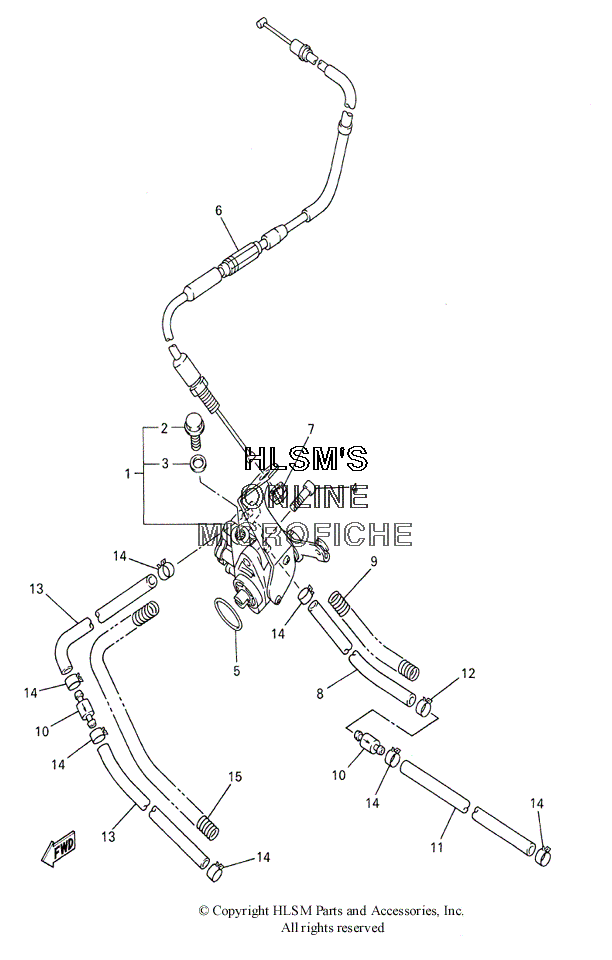

OIL PUMP ASSY для Yamaha SX700 - 2000 года выпуска
-
№АртикулНазвание
-
18CH-13100-00-00 OIL PUMP ASSEMBLY (SX700)OIL PUMP ASSEMBLY (SX700)
-
18DG-13100-00-00 OIL PUMP ASSEMBLY (SX600)OIL PUMP ASSEMBLY (SX600)
-
289A-13185-00-00 ...BOLT, BREATHER...BOLT, BREATHER
-
389A-13187-00-00 ...GASKET, BREATHER BOLT...GASKET, BREATHER BOLT
-
490110-05227-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
593210-191A1-00 O-RINGO-RING
-
68ED-26320-00-00 PUMP CABLE ASSEMBLYPUMP CABLE ASSEMBLY
-
795707-08300-00 NUT, FLANGENUT, FLANGE
-
891A30-03020-00 HOSE 89VHOSE 89V
-
990501-08430-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
108CH-1316A-00-00 CHECK VALVECHECK VALVE
-
1191A30-03014-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
1290467-07055-00 CLIPCLIP
-
1391A30-03008-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
1490468-02025-00 CLIPCLIP
-
1590501-08486-00 SPRING, COMPRESSIONSPRING, COMPRESSION
Все узлы модели:
- ALTERNATE (DRIVE SETTING 1)
- ALTERNATE (DRIVE SETTING 2)
- ALTERNATE (ELECTRICAL)
- ALTERNATE (REAR SUSPENSION)
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CARBURETOR ASSY
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH REPAIR KIT
- CLUTCH TUNE-UP KIT
- CONSOLE - INSTRUMENT PANEL
- COOLING SYSTEM
- CRANKCASE ASSY
- CRANKSHFT W/ PISTON
- CYLINDER W/ HEAD ASSY
- DECALS
- DOUBLE SEAT ASSY. (AP)
- DOUBLE SEAT ASSY. (DX)
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- • OIL PUMP ASSY
- OIL TANK ASSY
- REAR VIEW MIRROR SET
- REFLECTOR ASSY
- REVERSE GEAR KIT
- SEAT ASSY
- STARTER - ELECTRIC
- STARTER - RECOIL
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - TORQUE ARM ASSY
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
- WATER PUMP ASSY
