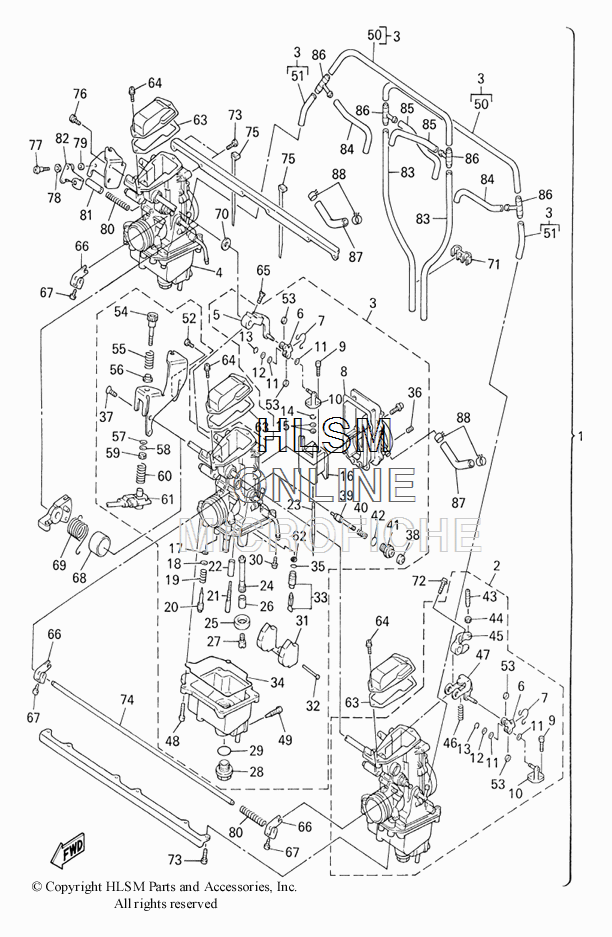

CARBURETOR ASSY для Yamaha V-MAX 600 DELUXE - 2000 года выпуска
-
№АртикулНазвание
-
18CH-14100-10-00 CARBURETOR ASSEMBLY (VX700)CARBURETOR ASSEMBLY (VX700)
-
18DG-14100-00-00 CARBURETOR ASSEMBLY (VX600)CARBURETOR ASSEMBLY (VX600)
-
28CH-14101-10-00 ...CARBURETOR ASSEMBLY 1 (VX700)...CARBURETOR ASSEMBLY 1 (VX700)
-
28DG-14101-00-00 ...CARBURETOR ASSEMBLY 1 (VX600)...CARBURETOR ASSEMBLY 1 (VX600)
-
38CH-14102-10-00 ...CARBURETOR ASSEMBLY 2 (VX700)...CARBURETOR ASSEMBLY 2 (VX700)
-
38DG-14102-00-00 ...CARBURETOR ASSEMBLY 2 (VX600)...CARBURETOR ASSEMBLY 2 (VX600)
-
48CH-14103-10-00 ...CARBURETOR ASSEMBLY 3 (VX700)...CARBURETOR ASSEMBLY 3 (VX700)
-
48DG-14103-00-00 ...CARBURETOR ASSEMBLY 3 (VX600)...CARBURETOR ASSEMBLY 3 (VX600)
-
589A-14292-00-00 ......LEVER A (2)......LEVER A (2)
-
689A-14243-00-00 ......PLATE......PLATE
-
789A-14137-00-00 ......CLIP......CLIP
-
889A-14199-00-00 ......GASKET......GASKET
-
991316-03012-00 ......BOLT......BOLT
-
1089A-14188-00-00 ......CONNECTOR......CONNECTOR
-
113GF-14126-00-00 ......GASKET......GASKET
-
12620-14198-00-00 ......GASKET......GASKET
-
133MA-14937-00-00 ......CLIP......CLIP
-
143FA-14137-00-00 ......CLIP......CLIP
-
158AB-14227-00-00 ......WASHER (T=0.4MM)......WASHER (T=0.4MM)
-
1689A-14112-30-00 ......VALVE, THROTTLE 1 (VX600)......VALVE, THROTTLE 1 (VX600)
-
1689A-14112-35-00 ......VALVE, THROTTLE 1 (VX700)......VALVE, THROTTLE 1 (VX700)
-
173H1-14147-00-00 ......O-RING......O-RING
-
183H1-14962-00-00 ......WASHER......WASHER
-
195K7-14134-00-00 ......SPRING, AIR ADJUSTING......SPRING, AIR ADJUSTING
-
2089A-14565-00-00 ......SCREW, PILOT ADJUSTING......SCREW, PILOT ADJUSTING
-
213H1-14142-42-00 ......JET, PILOT ( 42.5) (STD)......JET, PILOT ( 42.5) (STD)
-
213H1-14142-45-00 ......JET, PILOT ( 45) (VX700) (STD)......JET, PILOT ( 45) (VX700) (STD)
-
213H1-14142-50-00 ......JET, PILOT ( 50) (VX600) (OPT)......JET, PILOT ( 50) (VX600) (OPT)
-
213H1-14142-52-00 ......JET, PILOT ( 52.5) (OPT)......JET, PILOT ( 52.5) (OPT)
-
213H1-14142-55-00 ......JET, PILOT ( 55) (OPT)......JET, PILOT ( 55) (OPT)
-
213H1-14142-57-00 ......JET, PILOT ( 57.5) (OPT)......JET, PILOT ( 57.5) (OPT)
-
213H1-14142-60-00 ......JET, PILOT ( 60) (OPT)......JET, PILOT ( 60) (OPT)
-
213H1-14142-62-00 ......JET, PILOT ( 62.5) (VX700) (OPT)......JET, PILOT ( 62.5) (VX700) (OPT)
-
2289A-14996-00-00 ......PIPE......PIPE
-
23275-14116-50-00 ......NEEDLE (VX600)......NEEDLE (VX600)
-
23275-14116-F1-00 ......NEEDLE (VX700)......NEEDLE (VX700)
-
248CH-14141-52-00 ......NOZZLE, MAIN (VX700) (2,3)......NOZZLE, MAIN (VX700) (2,3)
-
248CH-14141-54-00 ......NOZZLE, MAIN (VX600) (1)......NOZZLE, MAIN (VX600) (1)
-
248CH-14141-54-00 ......NOZZLE, MAIN (VX700) (2,3)......NOZZLE, MAIN (VX700) (2,3)
-
248CH-14141-58-00 ......NOZZLE, MAIN (VX700) (1)......NOZZLE, MAIN (VX700) (1)
-
251LX-14153-00-00 ......WASHER, MAIN JET......WASHER, MAIN JET
-
2689A-14194-00-00 ......RING......RING
-
273G2-14231-26-00 ......JET, MAIN (#130) (OPT)......JET, MAIN (#130) (OPT)
-
273G2-14231-27-00 ......JET, MAIN (#135) (OPT)......JET, MAIN (#135) (OPT)
-
273G2-14231-28-00 ......JET, MAIN (140) (OPT)......JET, MAIN (140) (OPT)
-
273G2-14231-29-00 ......JET, MAIN (145) (VX700) (STD) (1)......JET, MAIN (145) (VX700) (STD) (1)
-
273G2-1423A-77-00 ......JET, MAIN (#132.5) (OPT)......JET, MAIN (#132.5) (OPT)
-
273G2-1423A-78-00 ......JET, MAIN (137.5) (OPT)......JET, MAIN (137.5) (OPT)
-
273G2-1423A-79-00 ......JET, MAIN (142.5) (OPT)......JET, MAIN (142.5) (OPT)
-
273G2-1423A-80-00 ......JET, MAIN (147.5) (OPT)......JET, MAIN (147.5) (OPT)
-
273G2-1423E-51-00 ......JET, MAIN (128.8) (OPT)......JET, MAIN (128.8) (OPT)
-
273G2-1423E-52-00 ......JET, MAIN (131.3) (OPT)......JET, MAIN (131.3) (OPT)
-
273G2-1423E-53-00 ......JET, MAIN (133.8) (OPT)......JET, MAIN (133.8) (OPT)
-
273G2-1423E-53-00 ......JET, MAIN (133.8) (VX600) (STD) (2,3)......JET, MAIN (133.8) (VX600) (STD) (2,3)
-
273G2-1423E-54-00 ......JET, MAIN (136.3) (OPT)......JET, MAIN (136.3) (OPT)
-
273G2-1423E-54-00 ......JET, MAIN (136.3) (VX600) (STD) (1)......JET, MAIN (136.3) (VX600) (STD) (1)
-
273G2-1423E-55-00 ......JET, MAIN (138.8) (OPT)......JET, MAIN (138.8) (OPT)
-
273G2-1423E-56-00 ......JET, MAIN (141.3) (OPT)......JET, MAIN (141.3) (OPT)
-
273G2-1423E-57-00 ......JET, MAIN #143.8 (8V0-1423E-57-00) (#143.8) (VX700) (STD) (2,3)......JET, MAIN #143.8 (8V0-1423E-57-00) (#143.8) (VX700) (STD) (2,3)
-
273G2-1423E-58-00 ......JET, MAIN (146.3) (OPT)......JET, MAIN (146.3) (OPT)
-
273G2-1423E-59-00 ......JET, MAIN (148.8) (OPT)......JET, MAIN (148.8) (OPT)
-
28500-14115-00-00 ......PLUG, SCREW......PLUG, SCREW
-
29558-14147-00-00 ......O-RING......O-RING
-
302LN-14565-00-00 ......SCREW......SCREW
-
311UY-14185-00-00 ......FLOAT......FLOAT
-
32537-14186-00-00 ......PIN, FLOAT......PIN, FLOAT
-
331AE-14190-12-00 ......NEEDLE VALVE ASSEMBLY (VX700)......NEEDLE VALVE ASSEMBLY (VX700)
-
331AE-14190-13-00 ......NEEDLE VALVE ASSEMBLY (VX600)......NEEDLE VALVE ASSEMBLY (VX600)
-
3489A-14147-00-00 ......O-RING......O-RING
-
358F2-14147-00-00 ......O-RING......O-RING
-
36239-14172-10-00 ......PILOT JET, AIR (1.0)......PILOT JET, AIR (1.0)
-
3798702-05008-00 ......SCREW, FLAT HEAD (2)......SCREW, FLAT HEAD (2)
-
38302-14173-00-00 ......COVER, PLUNGER CAP......COVER, PLUNGER CAP
-
394G0-14171-00-00 ......PLUNGER, STARTER......PLUNGER, STARTER
-
401AW-14135-00-00 ......SPRING, PLUNGER......SPRING, PLUNGER
-
411FN-14174-00-00 ......CAP, PLUNGER......CAP, PLUNGER
-
421AE-14147-00-00 ......O-RING......O-RING
-
4389A-14216-00-00 ......SCREW (1,3)......SCREW (1,3)
-
4495302-05700-00 ......NUT (1,3)......NUT (1,3)
-
4589A-14276-00-00 ......LEVER (1,3)......LEVER (1,3)
-
4689A-14286-00-00 ......SPRING (1,3)......SPRING (1,3)
-
4789A-14905-00-00 ......LEVER, STARTER (1,3)......LEVER, STARTER (1,3)
-
4898501-04014-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
4912R-14191-00-00 ......PLUG, DRAIN......PLUG, DRAIN
-
5084M-14197-00-00 ......PIPE (1,3)......PIPE (1,3)
-
518CH-14348-00-00 ......PIPE 1 (1,3)......PIPE 1 (1,3)
-
5298502-04010-00 ......SCREW, PAN HEAD (2)......SCREW, PAN HEAD (2)
-
533MA-14918-00-00 ......RING......RING
-
548CC-14122-00-00 ......SCREW, THROTTLE......SCREW, THROTTLE
-
552J2-14133-00-00 ......SPRING, THROTTLE STOP......SPRING, THROTTLE STOP
-
5689A-14265-00-00 ......COLLAR......COLLAR
-
5722F-14117-00-00 ......WASHER, PLUG SCREW......WASHER, PLUG SCREW
-
581UF-14952-00-00 ......WASHER......WASHER
-
5989A-14594-00-00 ......NUT......NUT
-
6089A-24529-00-00 ......SPRING......SPRING
-
6187S-8259A-00-00 ......SWITCH, CARBURETOR......SWITCH, CARBURETOR
-
621J7-14994-00-00 ......NET, FILTER......NET, FILTER
-
6389A-14198-00-00 ...GASKET...GASKET
-
6497606-04110-00 ...SCREW...SCREW
-
6598702-04014-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
6689A-14208-00-00 ...LEVER COMP1...LEVER COMP1
-
6711H-14991-00-00 ...SCREW...SCREW
-
6889A-14264-00-00 ...COLLAR (2)...COLLAR (2)
-
698CH-14589-00-00 ...SPRING...SPRING
-
703H1-14227-00-00 ...WASHER...WASHER
-
7187M-14137-00-00 ...CLIP...CLIP
-
7297602-04116-00 ...SCREW, PAN HEAD WITH WASHER (1, 3)...SCREW, PAN HEAD WITH WASHER (1, 3)
-
7398502-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
748CH-14978-00-00 ...SHAFT, STARTER LEVER...SHAFT, STARTER LEVER
-
7535H-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
7697602-05110-00 ...SCREW, PAN HEAD WITH WASHER (3)...SCREW, PAN HEAD WITH WASHER (3)
-
7722F-14115-00-00 ...PLUG, SCREW (3)...PLUG, SCREW (3)
-
7822F-14117-00-00 ...WASHER, PLUG SCREW (3)...WASHER, PLUG SCREW (3)
-
793FV-14962-00-00 ...WASHER (3)...WASHER (3)
-
801AE-14135-00-00 ...SPRING, PLUNGER...SPRING, PLUNGER
-
8189A-14118-00-00 ...CAP...CAP
-
8289A-14588-00-00 ...LEVER...LEVER
-
838A7-14197-00-00 ...PIPE...PIPE
-
848A7-14196-00-00 ...PIPE...PIPE
-
858F2-14197-00-00 ...PIPE...PIPE
-
864N0-14251-00-00 ...NIPPLE...NIPPLE
-
878CH-14987-10-00 ...HOSE...HOSE
-
8890467-10035-00 ...CLIP...CLIP
