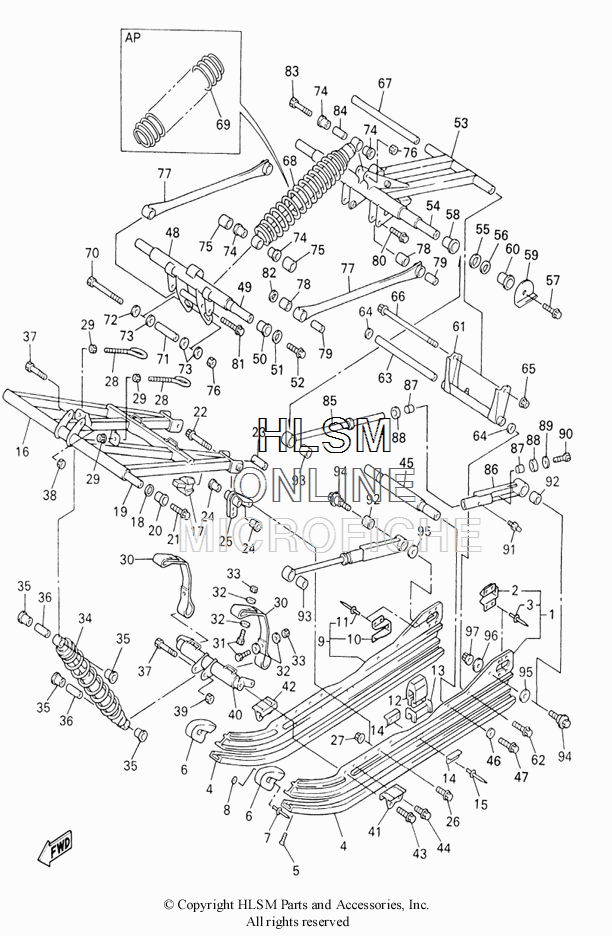

PIVOT ARM W/ SHOCK для Yamaha V-MAX 700 DELUXE - 2000 года выпуска`
-
№АртикулНазвание
-
18EA-47411-00-00 FRAME, SLIDING 1FRAME, SLIDING 1
-
28V0-4741B-00-00 ...BRACKET...BRACKET
-
38V0-47468-00-00 ...RIVETS...RIVETS
-
48CM-47421-40-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
590151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
68CM-47422-10-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
790267-48194-00 RIVET, BLINDRIVET, BLIND
-
890201-047R8-00 WASHER, PLATEWASHER, PLATE
-
98EA-47412-00-00 FRAME, SLIDING 2FRAME, SLIDING 2
-
108V0-4741B-00-00 ...BRACKET...BRACKET
-
118V0-47468-00-00 ...RIVETS...RIVETS
-
128CM-47457-00-00 DAMPER 2DAMPER 2
-
138CM-47341-00-00 SPACERSPACER
-
148AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1590267-48199-00 RIVET, BLINDRIVET, BLIND
-
168CV-47331-01-00 ARM, PIVOT 1ARM, PIVOT 1
-
178DF-47456-10-00 DAMPER 1DAMPER 1
-
1890201-210U0-00 WASHER, PLATEWASHER, PLATE
-
198CR-47465-00-00 SHAFT 1SHAFT 1
-
2090381-19111-00 BUSH, SOLIDBUSH, SOLID
-
2190105-103A1-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2290105-10769-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2390387-1009T-00 COLLARCOLLAR
-
2490381-15112-00 BUSH, SOLIDBUSH, SOLID
-
258CR-47415-00-00 BRACKET 1BRACKET 1
-
2695817-10025-00 BOLT, FLANGEBOLT, FLANGE
-
2795607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
288CR-47448-00-00 HOOK 3HOOK 3
-
2995707-08500-00 NUT, FLANGENUT, FLANGE
-
308CR-47495-00-00 STOPPER 1STOPPER 1
-
3197007-06025-00 BOLTBOLT
-
3290201-06747-00 WASHER, PLATEWASHER, PLATE
-
3395707-06300-00 NUT, FLANGENUT, FLANGE
-
348DG-47481-00-00 SHOCK ABSORBER 2 (VX700)SHOCK ABSORBER 2 (VX700)
-
348DS-47481-00-00 SHOCK ABSORBER 2 (VX600)SHOCK ABSORBER 2 (VX600)
-
3590387-145G7-00 COLLARCOLLAR
-
3690387-105G5-00 COLLARCOLLAR
-
3790101-10738-00 BOLTBOLT
-
3890185-10110-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3995607-10100-00 NUT, UNUT, U
-
408EA-47418-00-00 BRACKET 4BRACKET 4
-
418DF-47463-01-00 BRACKET 5BRACKET 5
-
428DF-47464-01-00 BRACKET 6BRACKET 6
-
4390105-10433-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
4490105-08450-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
458CR-47486-00-00 SHAFT 4SHAFT 4
-
4690201-100L3-00 WASHER, PLATEWASHER, PLATE
-
4790105-10433-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
488CR-47416-10-00 BRACKET 2BRACKET 2
-
498CR-47488-00-00 SHAFT 6SHAFT 6
-
5090381-22099-00 BUSH, SOLIDBUSH, SOLID
-
5190201-207J5-00 WASHER, PLATEWASHER, PLATE
-
5290105-103A1-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
538CR-47332-10-00 ARM, PIVOT 2ARM, PIVOT 2
-
548CR-47475-00-00 SHAFT 2SHAFT 2
-
5590201-251G8-00 WASHER, PLATEWASHER, PLATE
-
5690201-250T6-00 WASHER, PLATEWASHER, PLATE
-
5790105-103A1-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
5890381-28108-00 BUSH, SOLIDBUSH, SOLID
-
598CR-47426-10-00 BRACKET, REAR 1BRACKET, REAR 1
-
608CR-47425-00-00 BRACKET, REAR 2BRACKET, REAR 2
-
618CR-47417-00-00 BRACKET 3BRACKET 3
-
6290105-10433-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
6382M-47485-02-00 SHAFT 3SHAFT 3
-
6490201-10136-00 WASHER, PLATEWASHER, PLATE
-
6595607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
6695827-08220-00 BOLT, FLANGEBOLT, FLANGE
-
6790387-083G6-00 COLLARCOLLAR
-
688DS-47480-00-00 SHOCK ABSORBERSHOCK ABSORBER
-
698CR-47489-00-00 SPRING 1 (AP)SPRING 1 (AP)
-
698CR-47489-10-00 SPRING 1 (AP)SPRING 1 (AP)
-
708AC-4631K-00-00 BOLT, ADJUSTINGBOLT, ADJUSTING
-
7190387-1009S-00 COLLARCOLLAR
-
7290201-103U4-00 WASHER, PLATEWASHER, PLATE
-
7390201-100U1-00 WASHER, PLATEWASHER, PLATE
-
7490381-14101-00 BUSH, SOLIDBUSH, SOLID
-
7590387-1404R-00 COLLARCOLLAR
-
7695607-10100-00 NUT, UNUT, U
-
778CR-47494-01-00 ROD, RELAYROD, RELAY
-
7890381-14109-00 BUSH, SOLIDBUSH, SOLID
-
7990387-100X3-00 COLLARCOLLAR
-
8090105-10739-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
8190105-10436-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
8290201-100U1-00 WASHER, PLATEWASHER, PLATE
-
8390101-10738-00 BOLTBOLT
-
8490387-105G5-00 COLLARCOLLAR
-
858CR-4745A-01-00 ROD, CONTROL 1ROD, CONTROL 1
-
868CR-4745B-00-00 ROD, CONTROL 2ROD, CONTROL 2
-
8790384-16251-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
8890202-16232-00 WASHER, PLATEWASHER, PLATE
-
8990201-106F2-00 WASHER, PLATEWASHER, PLATE
-
9097027-10025-00 BOLTBOLT
-
9193700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
9290380-22232-00 BUSH, SOLIDBUSH, SOLID
-
9390380-28235-00 BUSH, SOLIDBUSH, SOLID
-
948DF-47367-00-00 SCREW, REAR PIVOTSCREW, REAR PIVOT
-
9590201-100S2-00 WASHER, PLATEWASHER, PLATE
-
9690201-101U2-00 WASHER, PLATEWASHER, PLATE
-
9795607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
