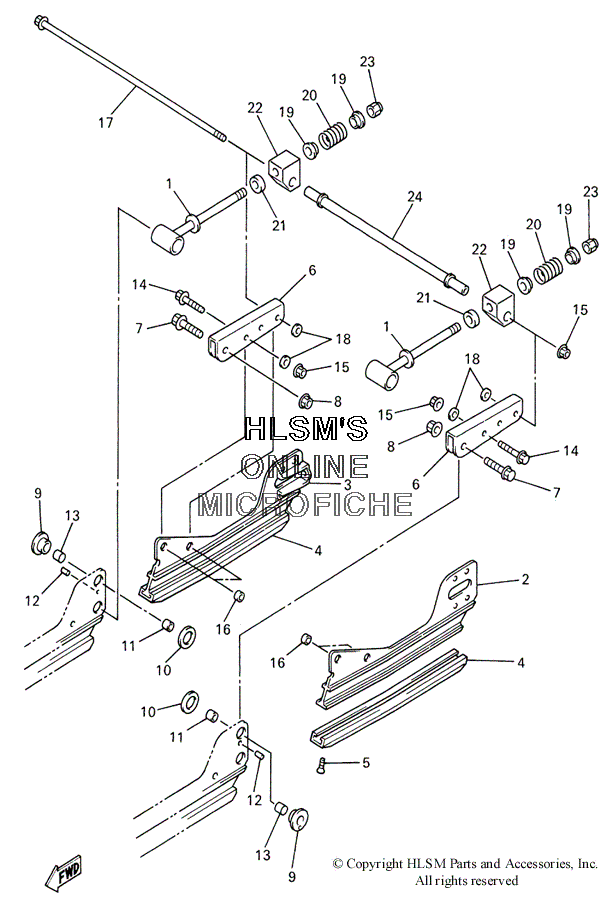

TRACK SUSPENSION 3 для Yamaha VIKING 540 - 2000 года выпуска
-
№АртикулНазвание
-
183R-47337-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
28AC-W4741-00-00 FRAME, SLIDINGFRAME, SLIDING
-
38AC-W4741-00-00 FRAME, SLIDINGFRAME, SLIDING
-
48AC-47424-00-00 RUNNER, SLIDING 4RUNNER, SLIDING 4
-
590151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
683R-47333-01-00 ARM, PIVOT 3ARM, PIVOT 3
-
795817-10030-00 BOLT, FLANGEBOLT, FLANGE
-
890185-10115-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
990387-1815A-00 COLLARCOLLAR
-
1090202-22238-00 WASHER, PLATEWASHER, PLATE
-
1190387-1014Y-00 COLLARCOLLAR
-
1291609-30008-00 PIN, SPRINGPIN, SPRING
-
1390380-16109-00 BUSH, SOLIDBUSH, SOLID
-
1495817-08035-00 BOLT, FLANGEBOLT, FLANGE
-
1595607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1690387-082J1-00 COLLARCOLLAR
-
1790105-08483-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1890201-08649-00 WASHER, PLATEWASHER, PLATE
-
1983R-23768-00-00 SEAT, SPRING 1SEAT, SPRING 1
-
2090501-407E4-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2183R-47335-00-00 SPRINGSPRING
-
2283R-47446-00-00 HOOK 1HOOK 1
-
2395707-12300-00 NUT, FLANGENUT, FLANGE
-
248AC-47478-00-00 COLLAR 2COLLAR 2
