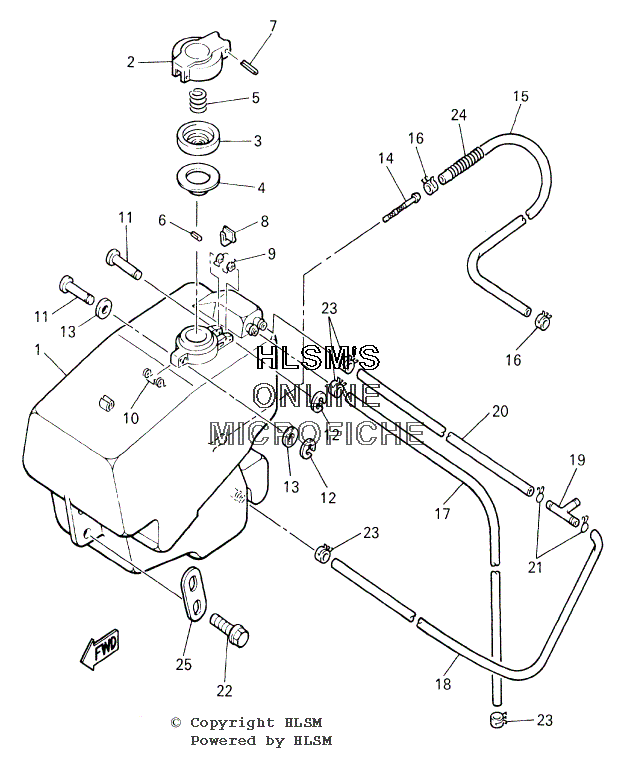

FUEL TANK ASSY для Yamaha BRAVO 250 - 2001 года выпуска
-
№АртикулНазвание
-
18R4-24111-02-00 TANK, FUELTANK, FUEL
-
28A5-24611-00-00 BODY, CAPBODY, CAP
-
3813-24613-01-00 DISC, CAPDISC, CAP
-
489A-24641-00-00 GASKET, CAP 1GASKET, CAP 1
-
590501-20130-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
691609-30016-00 PIN, SPRINGPIN, SPRING
-
791609-25032-00 PIN, SPRINGPIN, SPRING
-
883M-24628-00-00 HOOKHOOK
-
990508-10715-00 SPRING, TORSIONSPRING, TORSION
-
1090508-08353-00 SPRING, TORSIONSPRING, TORSION
-
1190249-03017-00 PINPIN
-
1293430-02001-00 CIRCLIPCIRCLIP
-
1390201-03313-00 WASHER, PLATEWASHER, PLATE
-
1422F-24514-01-00 NET, FILTER 1NET, FILTER 1
-
1590445-117F2-00 HOSE (L650)HOSE (L650)
-
1690467-11028-00 CLIPCLIP
-
1791A20-05145-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
1891A20-05090-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
19801-24376-00-00 PIPE, JOINT 1PIPE, JOINT 1
-
2090445-097J9-00 HOSE (L520)HOSE (L520)
-
2190467-08017-00 CLIPCLIP
-
2290105-08688-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2390467-09026-00 CLIPCLIP
-
248F3-24327-00-00 PROTECTOR, PIPEPROTECTOR, PIPE
-
258R4-24186-00-00 WASHER, SPECIALWASHER, SPECIAL
