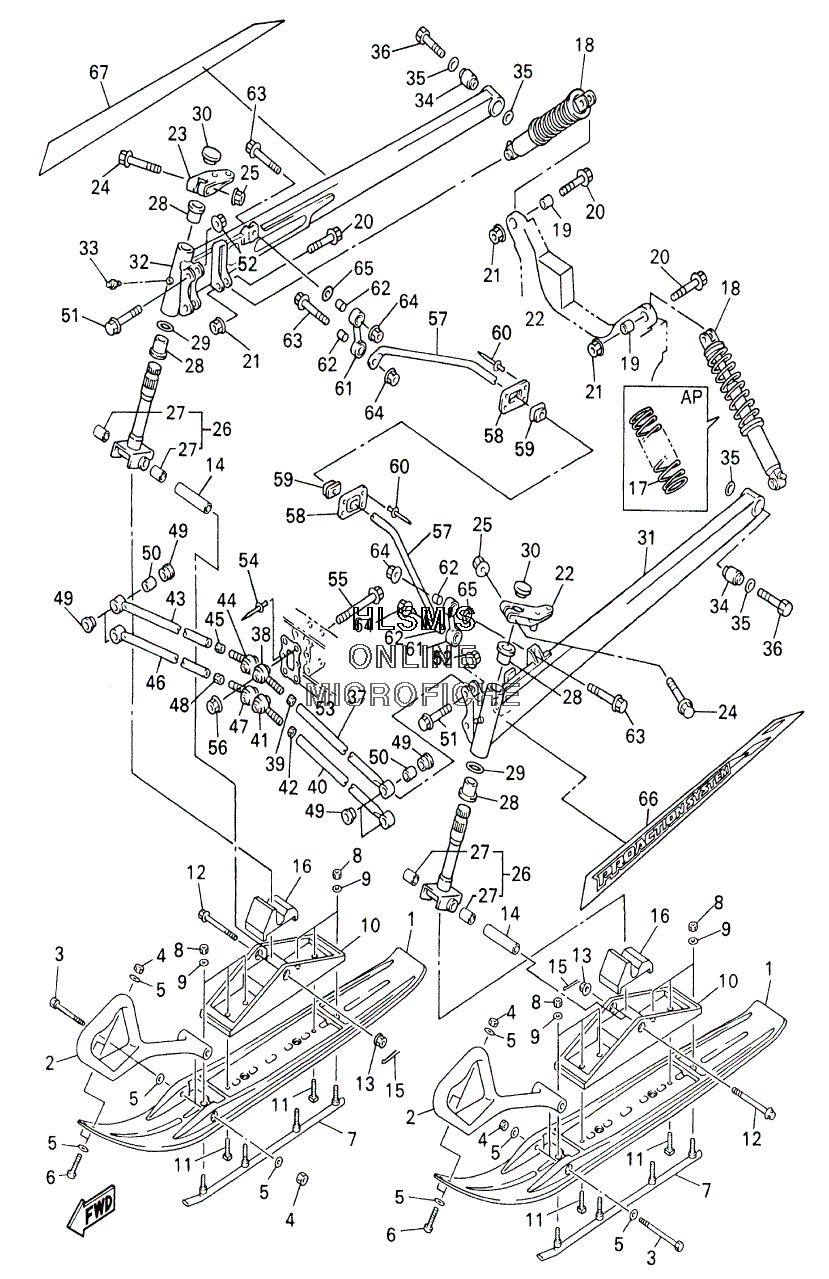

SUSPENSION - FRONT W/ SKI ASSY для Yamaha SX 500 - 2001 года выпуска
-
№АртикулНазвание
-
18DF-23711-10-00 SKI 1SKI 1
-
28DF-23712-00-00 RIENF., HEAD 1RIENF., HEAD 1
-
38DF-23755-00-00 BOLT, REINF. HEAD 1BOLT, REINF. HEAD 1
-
48DF-23778-00-00 NUTNUT
-
58DF-23737-00-00 WASHER 1WASHER 1
-
68DF-23756-00-00 BOLT, REINF. HEAD 2BOLT, REINF. HEAD 2
-
78DF-23731-20-00 RUNNER 1RUNNER 1
-
895707-08300-00 NUT, FLANGENUT, FLANGE
-
990201-086P8-00 WASHER, PLATEWASHER, PLATE
-
108EA-23766-00-00 SADDLE 1SADDLE 1
-
1190108-08002-00 BOLT, SQUAREBOLT, SQUARE
-
1290105-10712-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1395607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1490387-1012H-00 COLLARCOLLAR
-
1591401-20020-00 PIN, COTTERPIN, COTTER
-
168CS-23743-00-00 STOPPER 1STOPPER 1
-
178CH-23760-40-00 SPRING ASSY 1 (K=1.1-1.9-2.1) (OPT)SPRING ASSY 1 (K=1.1-1.9-2.1) (OPT)
-
178CH-23760-50-00 SPRING ASSY 1 (K=1.3-2.4-2.8) (OPT)SPRING ASSY 1 (K=1.3-2.4-2.8) (OPT)
-
178CH-23760-60-00 SPRING ASSY 1 (K=1.5-2.3-3.1) (OPT)SPRING ASSY 1 (K=1.5-2.3-3.1) (OPT)
-
178CX-23760-00-00 SPRING ASSY 1 (K=1.7) (OPT)SPRING ASSY 1 (K=1.7) (OPT)
-
178CX-23760-10-00 SPRING ASSY 1 (K=2.3) (OPT)SPRING ASSY 1 (K=2.3) (OPT)
-
188CT-2376A-40-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
198CR-2376B-00-00 BUSHBUSH
-
2090105-100A9-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2195607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
228CR-23851-00-00 ARM, OUTSIDE 1ARM, OUTSIDE 1
-
238CR-23852-00-00 ARM, OUTSIDE 2ARM, OUTSIDE 2
-
2495817-10055-00 BOLT, FLANGEBOLT, FLANGE
-
2595607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
268CR-23803-01-00 COLUMN, SKI ASSYCOLUMN, SKI ASSY
-
2790384-16251-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
2890381-25115-00 BUSH, SOLIDBUSH, SOLID
-
2990201-301G3-00 WASHER, PLATEWASHER, PLATE
-
308CR-23741-10-00 CAP 1CAP 1
-
318CR-2382E-20-00 ARM, FRONT 1ARM, FRONT 1
-
328CR-2382F-20-00 ARM, FRONT 2ARM, FRONT 2
-
3393700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
348CR-2516A-00-00 DAMPERDAMPER
-
3590201-120T5-00 WASHER, PLATEWASHER, PLATE
-
3690101-12780-00 BOLTBOLT
-
378CR-2384E-20-00 ARM, CONTROL 1ARM, CONTROL 1
-
388CR-23823-01-00 JOINT 2JOINT 2
-
3995317-12600-00 NUTNUT
-
408CR-2384F-20-00 ARM, CONTROL 2ARM, CONTROL 2
-
418CR-23832-00-00 JOINT 3JOINT 3
-
4295314-14600-00 NUTNUT
-
438CR-2384E-20-00 ARM, CONTROL 1ARM, CONTROL 1
-
448CR-23823-01-00 JOINT 2JOINT 2
-
4595317-12600-00 NUTNUT
-
468CR-2384F-20-00 ARM, CONTROL 2ARM, CONTROL 2
-
478CR-23832-00-00 JOINT 3JOINT 3
-
4895314-14600-00 NUTNUT
-
4990381-17110-00 BUSH, SOLIDBUSH, SOLID
-
5090387-1009K-00 COLLARCOLLAR
-
5190105-100A9-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
5295607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
538DF-23779-00-00 WASHERWASHER
-
5490267-48057-00 RIVET, BLINDRIVET, BLIND
-
5590105-121A8-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
5695607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
578CR-2386E-00-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
588CR-2386H-00-00 COVER, STABILIZER FRONTCOVER, STABILIZER FRONT
-
598CR-2386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
6090267-47186-00 RIVET, BLINDRIVET, BLIND
-
618DF-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
6290387-087L3-00 COLLARCOLLAR
-
6390105-08345-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
6495607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
6590201-086P8-00 WASHER, PLATEWASHER, PLATE
-
668EA-77371-20-00 EMBLEM 15EMBLEM 15
-
678EA-77372-20-00 EMBLEM 16EMBLEM 16
