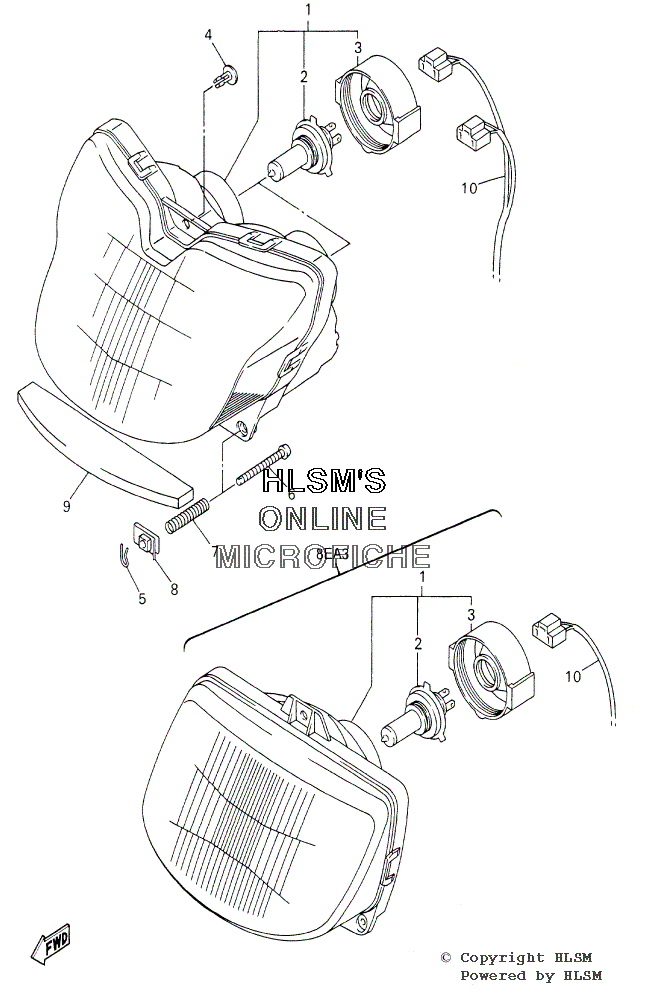

ELECTRICAL - HEADLIGHT ASSY для Yamaha SX 700 - 2001 года выпуска
-
№АртикулНазвание
-
18CR-84310-00-00 HEADLIGHT UNIT ASSY (SX600F)HEADLIGHT UNIT ASSY (SX600F)
-
18DN-84310-00-00 HEADLIGHT UNIT ASSY (SX700F)HEADLIGHT UNIT ASSY (SX700F)
-
28G9-84314-00-00 ...BULB (12V-60/55W) (H4) HALOGEN (SX600F)...BULB (12V-60/55W) (H4) HALOGEN (SX600F)
-
28G9-84314-00-00 ...BULB (12V-60/55W) (H4) HALOGEN (SX700F)...BULB (12V-60/55W) (H4) HALOGEN (SX700F)
-
38DN-84397-00-00 ...COVER, SOCKET (SX600F)...COVER, SOCKET (SX600F)
-
38DN-84397-00-00 ...COVER, SOCKET (SX700F)...COVER, SOCKET (SX700F)
-
490269-06046-00 RIVETRIVET
-
58K4-84374-00-00 CLIPCLIP
-
68A5-84331-00-00 SCREW, RIM ADJUSTINGSCREW, RIM ADJUSTING
-
78A5-84332-00-00 SPRING, SCREW (SX700F)SPRING, SCREW (SX700F)
-
790501-124L0-00 SPRING, COMPRESSION (SX600F)SPRING, COMPRESSION (SX600F)
-
890183-05024-00 NUT, SPRINGNUT, SPRING
-
98CR-84366-00-00 DAMPER, HEADLIGHT 1 (SX600F)DAMPER, HEADLIGHT 1 (SX600F)
-
98DS-84366-00-00 DAMPER, HEADLIGHT 1 (SX700F)DAMPER, HEADLIGHT 1 (SX700F)
-
108CH-84359-10-00 CORD, HEADLIGHT (SX600F)CORD, HEADLIGHT (SX600F)
-
108DM-84359-00-00 CORD, HEADLIGHT (SX700F)CORD, HEADLIGHT (SX700F)
