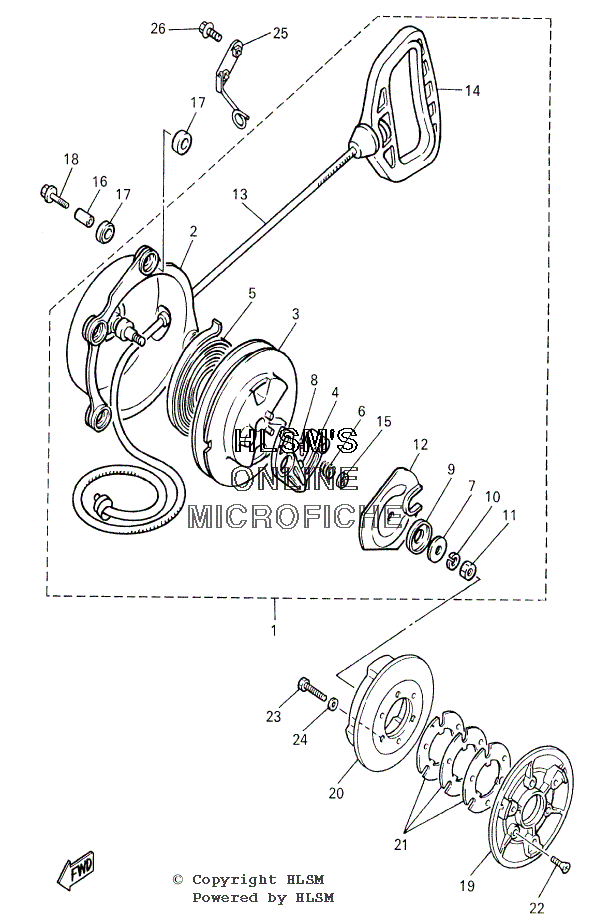

STARTER - REDUCTION GEAR W/ CLUTCH ASSY для Yamaha V-MAX 500 DELUXE - 2001 года выпуска
-
№АртикулНазвание
-
184M-15710-01-00 STARTER ASSYSTARTER ASSY
-
282M-15711-00-00 ...CASE, STARTER...CASE, STARTER
-
38F3-15714-01-00 ...DRUM, SHEAVE...DRUM, SHEAVE
-
48F3-15741-01-00 ...PAWL, DRIVE...PAWL, DRIVE
-
58F3-15713-01-00 ...SPRING, STARTER...SPRING, STARTER
-
68F3-15715-00-00 ...SPRING, FRICTION...SPRING, FRICTION
-
78F3-15739-01-00 ...WASHER, THRUST...WASHER, THRUST
-
88F3-15734-00-00 ...SPRING, RETURN...SPRING, RETURN
-
982M-15716-00-00 ...PLATE, DRIVE...PLATE, DRIVE
-
1092901-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
1195301-06700-00 ...NUT...NUT
-
128G5-15739-00-00 ...WASHER, THRUST...WASHER, THRUST
-
138F3-15751-00-00 ...WIRE, STARTER...WIRE, STARTER
-
148F3-15755-00-00 ...HANDLE, STARTER...HANDLE, STARTER
-
1582M-15779-00-00 ...COVER...COVER
-
1690387-063E9-00 COLLARCOLLAR
-
1790385-12036-00 BUSHBUSH
-
1890119-06211-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
198CA-12618-00-00 PULLEY 1PULLEY 1
-
208CA-15723-00-00 PULLEY, STARTERPULLEY, STARTER
-
218CA-15721-00-00 SHIM (0.5MM) (OPT)SHIM (0.5MM) (OPT)
-
218CA-15722-00-00 SHIM (1.0MM) (OPT)SHIM (1.0MM) (OPT)
-
2298707-06016-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
2397027-08030-00 BOLTBOLT
-
2492907-08600-00 WASHER, PLATEWASHER, PLATE
-
258CR-15758-00-00 GUIDE, ROPEGUIDE, ROPE
-
2695807-06012-00 BOLT, FLANGEBOLT, FLANGE
