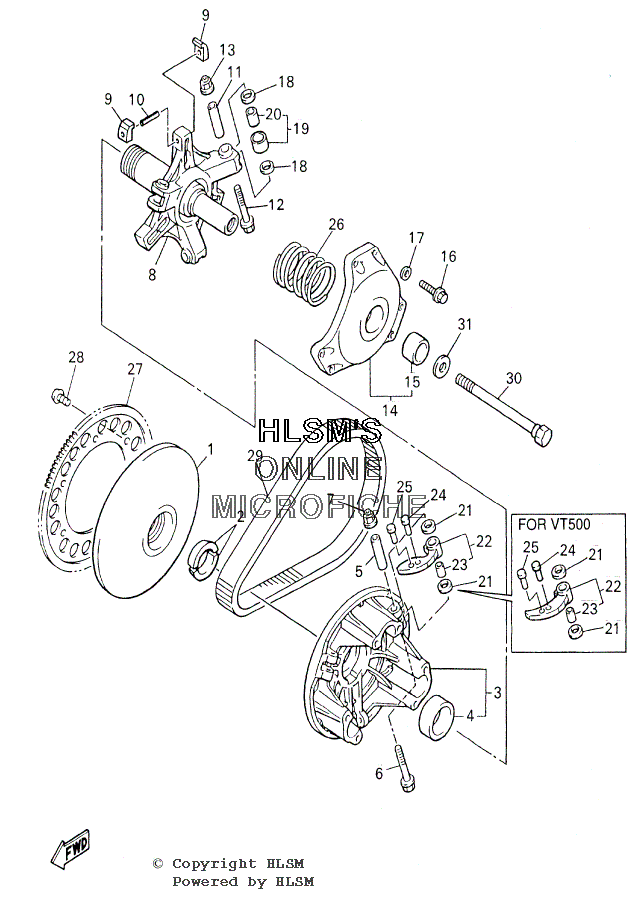

CLUTCH - DRIVE для Yamaha VENTURE 500 - 2001 года выпуска
-
№АртикулНазвание
-
18CR-17611-01-00 SHEAVE, PRIMARY FIXEDSHEAVE, PRIMARY FIXED
-
28V0-17639-00-00 STOPPERSTOPPER
-
38BV-17620-03-00 PRIMARY SLIDING SHEAVE COMPPRIMARY SLIDING SHEAVE COMP
-
490384-41242-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
590387-0514T-00 COLLARCOLLAR
-
690105-05644-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
795607-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
88CA-17640-12-00 SPIDER COMPLETESPIDER COMPLETE
-
98BW-17653-00-00 SLIDERSLIDER
-
1091609-50032-00 PIN, SPRINGPIN, SPRING
-
1190387-0514U-00 COLLARCOLLAR
-
1290105-05644-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1395607-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
148BV-17630-10-00 PRIMARY SHEAVE CAP COMP.PRIMARY SHEAVE CAP COMP.
-
1590380-28237-00 ...BUSH, SOLID...BUSH, SOLID
-
1697017-06030-00 BOLTBOLT
-
1792907-06600-00 WASHER, PLATEWASHER, PLATE
-
1890202-09227-00 WASHER, PLATEWASHER, PLATE
-
198CR-17624-10-00 ROLLER, COMPROLLER, COMP
-
2090380-09245-00 ...BUSH, SOLID...BUSH, SOLID
-
2190202-08204-00 WASHER, PLATEWASHER, PLATE
-
228AB-17605-10-00 WEIGHT COMP (VENTURE)WEIGHT COMP (VENTURE)
-
228CR-17605-10-00 WEIGHT COMP (V-MAX DLX)WEIGHT COMP (V-MAX DLX)
-
2390380-08244-00 ... BUSH, SOLID... BUSH, SOLID
-
2490261-06015-00 RIVET, COUNTERSUNK (ST10.3MM) (IN) (VENTURE)RIVET, COUNTERSUNK (ST10.3MM) (IN) (VENTURE)
-
2490261-06028-00 RIVET, COUNTERSUNK (AL10.3MM) (IN) (V-MAX DLX)RIVET, COUNTERSUNK (AL10.3MM) (IN) (V-MAX DLX)
-
2590261-06034-00 RIVET, COUNTERSUNK (ST13.9MM) (OUT) (V-MAX DLX)RIVET, COUNTERSUNK (ST13.9MM) (OUT) (V-MAX DLX)
-
2690501-550J8-00 SPRING, COMPRESSION (VANTURE)SPRING, COMPRESSION (VANTURE)
-
2690501-550J8-00 SPRING, COMPRESSION (V-MAX DLX)SPRING, COMPRESSION (V-MAX DLX)
-
278DM-1760A-19-00 GEAR 1GEAR 1
-
288DV-17617-10-00 BOLT CAPBOLT CAP
-
298CH-17641-00-00 V-BELT (VENTURE)V-BELT (VENTURE)
-
298CJ-17641-00-00 V-BELT (V-MAX DLX)V-BELT (V-MAX DLX)
-
308V0-17647-00-00 BOLT (L=156.5MM)BOLT (L=156.5MM)
-
3192907-16100-00 WASHERWASHER
